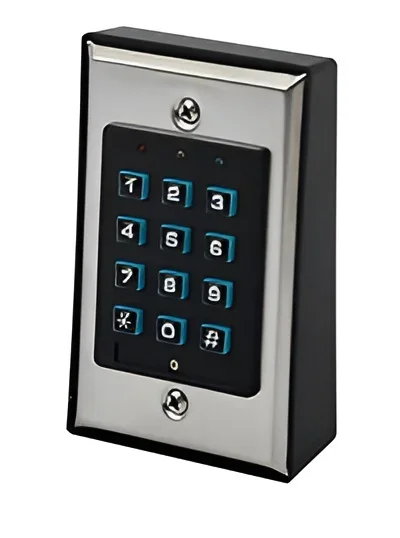

CRL MLDK83N Brushed Stainless Digital Keypad with Programmable Features
C.R. Laurence MLDK83N Brushed Stainless Programmable Digital Keypad offers a robust solution for access control and security applications. Engineered to accommodate up to 100 user codes, this self-contained keypad is equipped with a built-in 5A relay, making it ideal for electric strikes and various access control setups. With over 100 million possible combinations, security is enhanced through four programmable code levels: Master, User, Duress, and Quick Codes. The keypad operates on a versatile 12/24 volts AC/DC input, ensuring compatibility with a wide range of systems. Its non-volatile EEPROM memory guarantees that your codes are retained even in the event of a power failure. The keypad also features audible confirmation via a buzzer and status LEDs for convenient operation.Constructed with a sleek brushed stainless steel faceplate, the MLDK83N not only provides durability but also complements modern architectural aesthetics. The included junction box measures 2-7/8″ x 4-5/8″ with a depth of 1-7/8″, allowing for easy installation.Please note that while the dual voltage keypad is temporarily unavailable, the 12VDC single voltage version can be ordered under model MLDK83N12VDC. For immediate needs, consider the SDC920 dual voltage alternative.
Brushed Stainless Programmable Digital Keypad
- Designed for Access Control and Security Applications with 100 User Codes
- Four Programmable Code Levels: Master, User, Duress, and Quick
- 12/24 Volts AC/DC Voltage
Designed for access control and security applications with 100 user codes. A self-contained security Keypad with a built-in 5A Relay for Electric Strikes and other security and access control applications. Security is assured with over 100 million possible combinations for the Master, User, Duress, and Quick Codes. This Keypad is supplied complete with junction box and brushed stainless steel faceplate.
SPECIFICATIONS:
Input: 12/24V AC/DC
Contacts: N.O. or N.C. – 30V DC Max
Output Relay 5A
Non-Volatile Eprom Memory
Audible Confirmation Buzzer and Status LED’s
Programmable N.O. or N.C. Output
Dimensions: Junction Box: 2-7/8″ x 4-5/8″ (74 x 117 mm); Box Depth: 1-7/8″ (48 mm)
Finish: Brushed Stainless Faceplate
Product Warning:
WE ARE TEMPORARILY OUT OF THE 12/24V AC/DC DUAL VOLTAGE KEY PAD. WE HAVE A LIMITED SUPPLY AVAILABLE OF 12VDC SINGLE VOLTAGE KEY PADS AND THEY SHOULD BE ORDERED AS MLDK83N12VDC. THE MLDK83N DUAL VOLTAGE PAD WILL REPLACED BY A NEW
MODEL TO BE ADVISED WHEN AVAILABLE. FOR IMMEDIATE AVAILABILITY OF A DUAL VOLT PROGRAMMABLE KEYPAD, SEE CAT. NO. SDC920.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.
Attributes
Compliance and Restrictions: Warning Reproductive Harm – www.p65warnings.ca.gov
Face Plate Height: 4-1/2
Face Plate Width: 2-3/4
Input: 12/24V AC/DC
Shipping Limitations: None
Size: 2-7/8″ x 4-5/8″ x 1-7/8″ (Junction Box)
Resources
- Instructions MLDK83N.pdf
