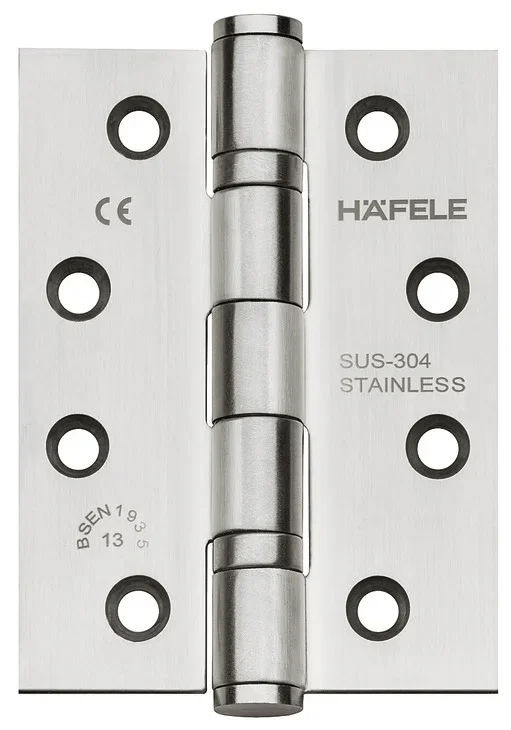

Hafele 926.98.040 Startec 4″ x 3″ Stainless Steel Butt Hinge
Hafele 926.98.040 Butt Hinge, Startec, Stainless Steel, 4″ x 3″ offers a reliable and elegant solution for flush interior doors with wood or steel frames. Crafted from high-quality stainless steel (1.4301/AISI 304), this hinge combines durability with a sleek matte finish, ensuring it complements any interior design seamlessly.With dimensions of 4 inches by 3 inches, it is designed to support a maximum door weight of 264 lbs, making it suitable for heavier doors. The hinge features a fixed pin and a knuckle equipped with two ball bearings, providing smooth operation and longevity. The square flange design, measuring 102 mm in height and 3 mm in thickness, adds to its robust construction. This hinge is versatile, accommodating both DIN left and DIN right-hand installations, and comes with mounting screws included for easy setup. With a knuckle diameter of 14 mm and a total width of 76 mm, the Hafele 926.98.040 is engineered for strength and functionality. It’s the ideal choice for building professionals and homeowners looking for dependable hardware that enhances their door systems while ensuring lasting performance.
Butt Hinge, Startec, Stainless Steel, 4″ x 3″
Model: DHB 3222, matte
- Technical data Height/Width mm Height/Width inche 76 3 89 3.5 102 4 114 4.5 127 5
Attributes
Area of application: For flush interior doors with wood or steel frame
Bearing type: With fixed pin, Knuckle with two ball bearings
Color/finish: matt
Dim. A: 4″
Dim. B: 3″
Direction: For DIN left and DIN right hand use
Door weight max.: 264 lbs
Flange height: 102 mm
Flange shape: square
Flange thickness: 3.00 mm
For frame type: Wooden frame
Grade: 4|7|6|1|1|4|0|13
Knuckle diameter: 14.00 mm
Knuckle length: 102.00 mm
Material: Stainless steel, quality 1.4301/AISI 304
Max. door weight for 2 hinges: 120.00 kg
Model: DHB 3222
Mounting: For DIN left and DIN right hand use
Standard: Certified in compliance with EN 1935:2002
Supplied with: Mounting screws included
Total width: 76.00 mm
Resources
- CAD data
- Certificate
- Certificate
- Certificate of Constancy of Performance according to EN 1935:2002
- Certificate of approval
- Declaration of performance
- Declaration of performance
- TCH_Architectural_Hardware_ 2022 | Page 1.191
- TCH_Architectural_Hardware_ 2022 | Page 1.201
