Description

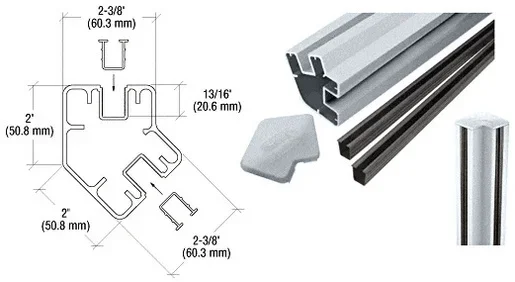

CRL S485KM Mill AWS 48″ 2″ x 2-3/8″ Rectangular 135 Post Kit
C.R. Laurence S485KM Mill AWS 48″ Long 2″ x 2-3/8″ Rectangular 135 Degree Post Kit offers an exceptional solution for creating seamless connections between glass panels at a 135-degree angle. Designed for versatility, this post kit accommodates both dry glazed and wet glazed glass installations. It effectively supports 1/4″ to 3/8″ (6 to 10 mm) thick glass when dry glazed with vinyl and can also handle 1/2″ (12 mm) glass in wet glazed applications. The standard kit includes a robust post, a top cap, and vinyl, ensuring a complete setup for your glazing projects. Available in a variety of attractive colors, and with custom colors upon request, you can easily match the kit to your design aesthetic. It’s worth noting that the maximum post spacing is 72″ (1.83 m) on center, and each panel should not exceed 24 square feet for optimal performance. Constructed from durable aluminum, this rectangular post is not only functional but also adds a sleek and modern touch to your architectural designs. Ideal for both professional builders and knowledgeable homeowners, the C.R. Laurence S485KM post kit combines style and strength, making it an essential component for your glass installation projects.
Mill AWS 48″ Long 2″ x 2-3/8″ Rectangular 135 Degree Post Kit
- Standard Kits Include Post, Top Cap, and Vinyl
- Available in Several Attractive Colors
- Custom Colors Available Upon Request
- Accommodates 1/4″ to 3/8″ (6 to 10 mm) Glass Dry Glazed with Vinyl
- Accommodates 1/2″ (12 mm) Glass Wet Glazed
These CRL Kits are for fabricating posts used to join two panels at 135 degrees. They can accommodate 1/4″ to 3/8″ (6 to 10 mm) panels when dry glazed with vinyl, and 1/2″ (12 mm) panels when wet glazed. They are available in several attractive colors.
NOTE: Maximum Post Spacing is 72″ (1.83 m) on center. Maximum square footage should not exceed 24 square feet per panel.
Product Warning:
All ARS/AWS products are painted to order and are non-refundable or returnable.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.
Attributes
Compliance and Restrictions: Warning Reproductive Harm – www.p65warnings.ca.gov
Configuration: Corner
Degree: 135
Finish/ Color:: Mill
Glazing Thickness: 1/4 in. To 3/8 in. Glass (Dry Glazed) (6 mm To 10 mm Glass (Dry Glazed))
Length: 1/2 in. Glass (Wet Glazed) (12 mm Glass (Wet Glazed))
Material: Aluminum
Profile: Rectangular
Shipping Limitations: None
Width: 48 in. (1219 mm)
Resources
- AWS Quote Request Form
- AWS Rectangular Post CAD Drawings.dwg
- AWS Rectangular Post CAD Drawings.pdf
- AWS Windscreen Engineering Report 10-16-20
- Architectural Glass Railing Systems and Hardware Catalog
- Windscreen and Pool Fencing Systems Product Information
