Richelieu WEBKIT1242708 Cavity Sliders Heavy-Duty Sliding System
Richelieu WEBKIT1242708 Cavity Sliders CS HEAVYDUTY Sliding System is engineered for the demands of large and heavy doors, accommodating weights up to 1,100 lb (500 kg) each. This innovative sliding system features a mounting suspension plate that allows for quick and tool-free attachment of the upper trolley, ensuring easy installation and maintenance. Equipped with large wheel trolleys that include precision ground bearings, this system guarantees a smooth and reliable operation. The track stoppers and built-in stops provide a secure method to halt the door’s movement, while using a floor door stop can enhance the longevity of the hardware. The ceiling-mounted aluminum track can be easily connected with pins, and a floor-mounted T-guide stabilizes the door, requiring a groove cut at the bottom. Designed for versatile applications, this system is ideal for large commercial projects, divider doors, and wall partitions. It supports single sliding door movement with a height capacity of 12 ft and accommodates door widths from 36 to 72 in. The system’s simple, flexible installation makes it an economical choice for various settings. With its robust construction and thoughtful design, the Richelieu Cavity Sliders HEAVYDUTY system is your go-to solution for heavy-duty sliding needs.
Cavity Sliders CS HEAVYDUTY Sliding System
The CAVITY SLIDERS HEAVYDUTY M10 Sliding System is designed for large and heavy doors weighing up to 1100 lb (500 kg) each.
Features:
– Mounting suspension plate to the top of the door for mounting and quick-releasing the upper trolley without tools
– Large wheel trolleys with precision ground bearings for smooth running
– Track stoppers and built-in stop mounted to the suspension provide a secure connection to stop the door. Use a floor door stop to prolong the performance of the hardware.
– Ceiling mount aluminum track can be joined with connecting pins
– Floor mounted T-GUIDE to stabilize the door standard, must cut a groove at the bottom of the door
– Optional recessed floor guide channel for greater stability when doors are wider than 48 in (1.2 m)
– Simple and flexible low-cost installation

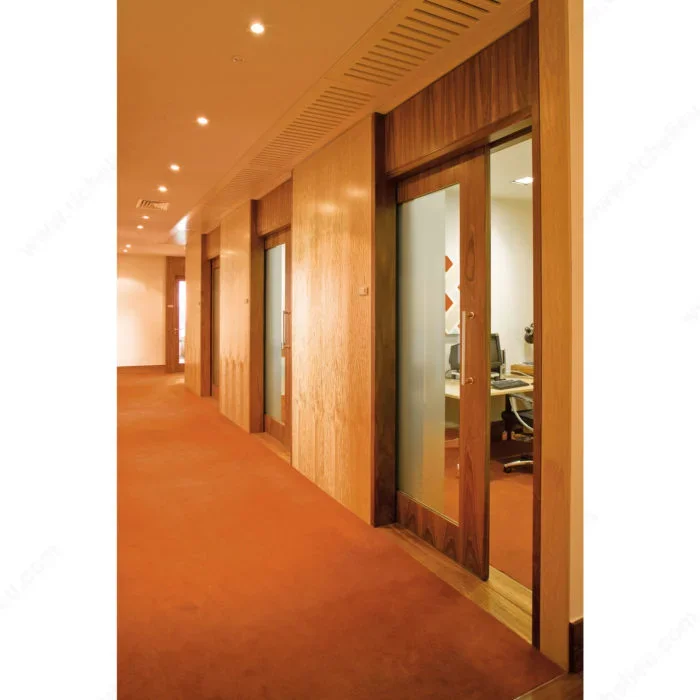

An ideal solution for large commercial projects, divider doors, and wall partitions.
Attributes
Ship via: No UPS – Common Carrier Only
Application: Standard Access Door
Brand: Cavity Sliders
Detailed Door Movement: Single Sliding
Door Height: 12 ft
Door Installation: Top Hung
Door Material: Aluminum/Metal Frame, Wood
Door Movement: Straight Sliding, Movable Wall
Door Projection: 3 3/64 in
Door Thickness: 1 3/4 to 3 in
Door Width: 36 to 72 in
Groove Depth: 25/32 in
Groove Needed for Guiding System: Yes
Groove Width at the Bottom of Door: 1/4 in
Length – Overall Dimensions: 16 ft
Load Capacity: 1 100 lb
Manufacturing Material: Aluminum
Number of Doors: 2
Overall Length: 144 ft
Product #: WEBKIT1242708
Product number: WEBKIT1242708
Product №: WEBKIT1242708
Roller Position: Upper
Roller Type: Premium Ball Bearing
Running Track Fixing: Surface and Recessed
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84″ or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Stopper: Two
Track Length: 144 ft
Track Material: Aluminum
Track Mounting: Ceiling Mount
Track Type: Box Track
Track type: Box Track
Weight Capacity per Door: 1 100 lb
