Description

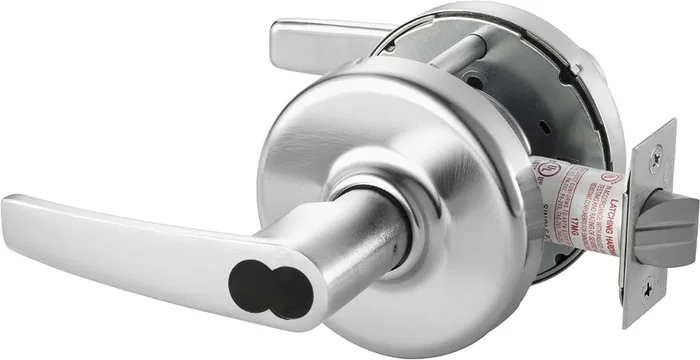

Corbin Russwin CL3355AZD626CL6 Cylindrical Lock
Corbin CL3355AZD626CL6 Zinc Armstrong Lever and D Rose Single Cylinder Classroom Grade 1 Extra Heavy Duty Cylindrical Lever Lock IC 6 Pin Less Core Satin Chrome Finish
Features
- Vandal Resistance: Engineered to meet today’s increased security needs, the CL3300 series offers several advantages. All functions feature the Lever Release™ design for vandal resistance, allowing the outside lever to rotate when in the locked position. All CL3300 series locksets, including the CL33900 series, are available with Corbin Russwin Pyramid patented security or high security cylinders, the most secure locking system available. Pyramid is especially recommended for installations that require superior protection against picking, drilling and other surreptitious entry.
- Access Control: For access control, the CL33900 Series Electrified Cylindrical lockset utilizes the proven CL3300 series lockset and features an integral continuous duty solenoid that allows installation in a standard cylindrical prep. Available in Fail Safe or Fail Secure, the CL33900 is ideal for door control where increased security is necessary at all times, while meeting life safety codes.
- Classroom Security: The CL3352 Classroom Intruder function is the solution to classroom security: a double cylinder lockset that allows locking of the outside lever from either side. Egress is always possible with the standard anti-panic feature, whether the door is locked or not. And because a key is needed to secure the door from either side, students cannot lock a teacher out of the classroom.
Attributes
Alternate Codes: CL3355-AZD-626-CL6, CL3355AZD626CL6
Ansi Function: F84 – Classroom
Ansi Function : Classroom
Backset: 2-3/4″
Bolt Protection: 1/2 In.
Bore Hole Diameter: 2-1/8″
Category: Commercial Locks, Cylindrical Levers, Lock Sets
Country of Origin: Usa
Cylinder Type: Corbin Russwin 6-Pin LFIC Less Core
Cylinders Present: Single Cylinder
Design: Zinc Armstrong Lever and D Rose
Door Application: Commercial Locks
Door Thickness: 1-3/4 In. – 2 In.
Finish: Satin Chrome
Finish Code: 626
Finish Color: Brushed Chrome, Satin Chrome
Finish : Satin Chrome
Fire Rated: 3 Hours {A}
Function: 55-Classroom
Function Family: Classroom
Grade: Grade 1
Hand: Not Handed
Latch Backset Dim: 2-3/4″
Latch Bore Diameter: 1″
Latch Number: 586F17
Latch Type: Dead Latch (Guarded)
Lever Design: Armstrong
Lever Knob: Lever
Lever Knob Design: AZ – Armstrong
Lever Knob Design Family: Straight Lever
Lever Knob Design Name: Armstrong
Limited Warranty: 7 Years
Lock Face Size: 2-1/4″ x 1-1/8″
Manufacturer: Corbin Russwin
Manufacturer Function: Classroom
Manufacturer Function : Operated by deadlocking latchbolt by lever either side, except when key outside locks outside lever, outside lever unlocked by key outside, inside lever always free.
Material: Cast Zinc
Maximum Door Thickness: 2″
Minimum Door Thickness: 1-3/4″
Num Pins: 6
Projection: 2-13/16″
Rose Escutcheon: Rose
Rose Escutcheon Design: D – Rose
Rose Escutcheon Dimensions: 3-1/2″
Rose/ Escutcheon: D Rose
Screws: Combination
Series: CL3300
Strike: ANSI Curved Lip Strike
Strike Dimensions: 1-1/4″ x 4-7/8″
Strike Height: 4-7/8 In.
Strike Number: 217L13
Strike Type: ASA
Strike Width: 1-1/4 In.
Structure Cylinder: CL6
Structure Function: 55
Structure Latch Number: 586F17
Structure Outside Finish: 626
Structure Outside Rose: D
Structure Outside Trim: AZ
Structure Series: CL33
Structure Strike Number: SA114
Subtype: Cylindrical
Type: Mechanical Commercial Locksets
Resources
- 2018 Corbin Russwin Product Catalog (Condensed)
- 2019 Corbin Russwin Price Book
- 2020 Corbin Russwin Price Book
- CL3100 Series Product Catalog
- CL3300 Series Cylindrical Lock – Environmental Product Declaration (EPD)
- CL3300 Series Cylindrical Lock Catalog
- CL3300 Series Cylindrical Lock Catalog
- CL3300 Series Installation Instructions
- CL3300 Series Parts Manual
- CL3300 Series Product Catalog
- CL3300 and CL3600 Series Installation Instructions
- CL3500 Series Product Catalog
- CL3800 Series Product Catalog
- ED5000 Series
- ED5000 Series Product Catalog
- ML2000 Series Product Catalog
