Description

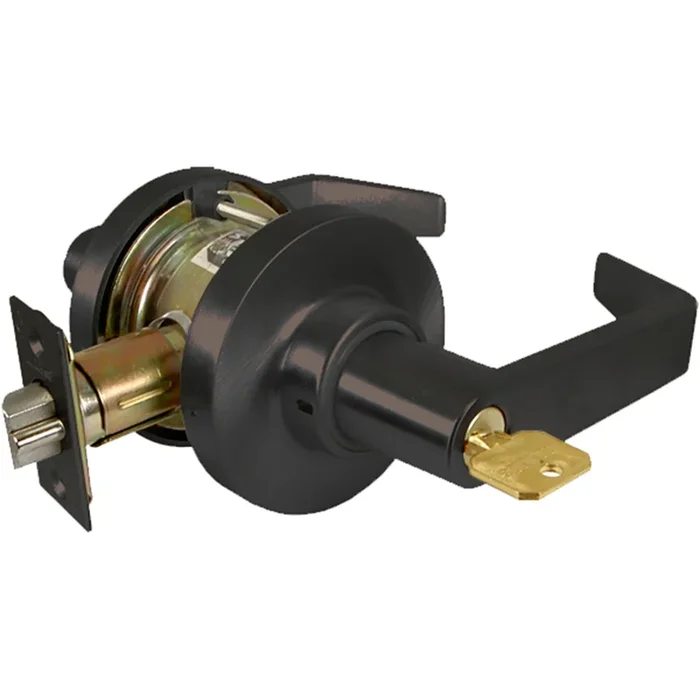

Marks Hardware 175S10B-3/4 Marks C Keyway Classroom Lever Lockset, 6 Pin, Grade 2, Dark Bronze
Marks Hardware 175S10B-3/4 Classroom Clutched Lever Lockset offers robust security and functionality for commercial applications. Designed with a Marks C keyway and a 6-pin cylinder, this Grade 2 lockset ensures reliable performance and enhanced security. The lockset features a 2-3/4 inch backset, making it suitable for various door thicknesses ranging from 1-5/8 inches to 1-7/8 inches; for thinner doors, a K1704 spacer is available. Constructed with solid cast Zamac levers and a deadlatch mechanism, the 175S10B-3/4 provides a smooth operation while maintaining strength and durability. The 1/2 inch throw and stainless steel nose latch deliver dependable locking action, complemented by the 3-1/4 inch diameter spring-loaded roses secured with 2 #10 thru-bolts for added stability. This lockset is versatile, accommodating multiple functions, including classroom, entry, and privacy applications. Its ANSI strike and UL listed fire rating for up to 120 minutes ensure compliance with safety standards. The dark bronze finish (613/US10B) adds an elegant touch, making it an ideal choice for modern commercial settings. With its combination of security features and stylish design, the Marks Hardware 175S10B-3/4 Classroom Clutched Lever Lockset is a smart choice for building professionals and knowledgeable homeowners alike.
Classroom Clutched Lever Lockset, Marks C Keyway, 6 Pin, 2-3/4in Backset, ANSI Strike, Grade 2, 613/US10B Dark Bronze
Notice: The info below is not item specific.
Standard & Hi-Security™ IC Core Models: Interchangeable Core models for 6 or 7 pin cores (not included). Accepts: Marks, Marks HI-SECURITY™, Medeco®, KeyMark™, Falcon, Schlage® small format & Best®
- IC Core models: Tailpieces included, core not included.
- Split designs available
Features:
- Backset: 2-3/4″
- Latch #1134, Front: 1-1/8″ x 2-1/4″; Throw: 1/2″; Stainless steel nose
- Levers: Solid cast Zamac; w/ 1/2″ return (except 370 & 470)
- Roses: Thru-bolted, 3-1/4″ dia., spring loaded 2-#10 thru-bolts
- Strike: #1145, ASA strike
- Door thickness: 1-5/8″ to 1-7/8″; for 1-3/8″ door use K1704 spacer
- Cylinder: Marks “C” keyway, 6 pin w/ 2 keys
Functions:
- Passage
- Privacy
- Patio
- Communicating
- Entry
- Exit
- Classroom
- Storeroom
- Institution
- Vestibule
- Exit
- Corridor
- Service Station Lock
- Hotel
- Dummy Trim Outside
- Full Dummy Trim
Attributes
Alternate Codes: 145306, 175S10B-3/4, 175S10B34
Backset: 2-3/4″
Category: Commercial Locks, Cylindrical Levers, Lock Sets
Certifications: A156.2, ANSI, UL Listed 3 Hour
Cylinder Type: Conventional
Door Application: Lock Sets
Door Thickness: 1-5/8″-1-7/8″
Faceplate Height: 2-1/4″
Faceplate Width: 1-1/8″
Finish Code: 613E
Fire Rated: Yes
Fire Rating: 120 min
Function: Classroom
Grade: Grade 2
Latch Throw: 1/2″
Latchbolt Type: Deadlatch
Lever Design: American
Manufacturer: Marks USA
Rose/ Escutcheon: 3-1/4″ Diameter, Spring Loaded
Series: 75 Line
