Description

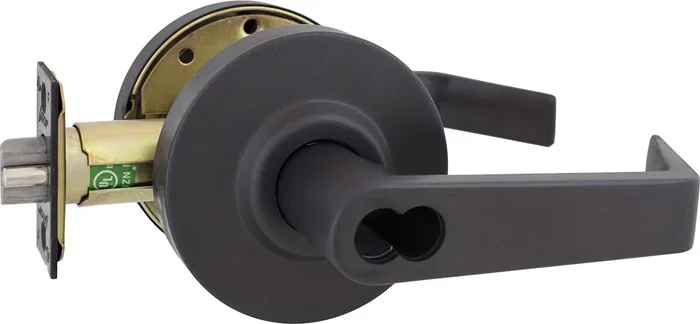

Arrow Lock RLX17SR613E-IC-2 3/4 BS Classroom Rigid Sierra Lever, SFIC Less Core, 2-3/4in Backset, Grade 2, Oil Rubbed Bronze
Arrow Lock Company RLX17SR613E-IC-2 3/4 BS Classroom Rigid Sierra Lever is a reliable Grade 2 lockset designed for commercial applications. This robust solution features a freewheeling lever action, enhancing its resistance to abuse and ensuring long-lasting performance. The RLX series is ideal for replacing or upgrading existing locksets, with removable through bolts and a variety of finishes to match your aesthetic needs. This lockset is designed to fit door thicknesses ranging from 1-3/8″ to 1-3/4″, making it versatile for various installations. It comes with a standard 6-pin solid brass cylinder and includes two nickel-plated brass keys, while also offering IC prep for added flexibility. The RLX17SR613E-IC-2 features a 2-3/4″ backset latch, which is designed with a square corner face type for a secure fit. Certified by BHMA A156.2, Series 4000, and UL Listed, this lockset ensures compliance with industry standards. Its oil-rubbed bronze finish not only enhances durability but also adds a sophisticated touch to any door. Backed by a 10-year warranty, the Arrow Lock Company RLX17SR613E-IC-2 provides peace of mind and dependable security for your classroom or commercial space.
Classroom Rigid Sierra Lever, SFIC Less Core, 2-3/4in Backset, Grade 2, 613E/US10BE Oil Rubbed Bronze
Notice: The info below is not item specific.
RLX Series is a robust Grade 2 lockset with a freewheeling lever operation for enhanced abuse resistance. The RLX is an Arrow Professional Replacement Product featuring removable through bolts and a variety of designs, finishes and functions. The RLX Series cylindrical locksets are a perfect solution for replacing or upgrading locksets in commercial applications.
Specifications:
- Certification:
BHMA A156.2, Series 4000, Grade 2, UL Listed. - Freewheeling Lever Action:
Standard. - Door Thickness:
Fits 1-3/8″ to 1-3/4″, factory set for 1-3/4″ - Strike:
ANSI 1-1/4″ x 4-7/8″ - Latch:
2-3/4″ backset, 1-1/8″ front - Cylinder:
Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available. - Handing:
Non-Handed. - Case Quantity:
6 per case. - Average Case Weight:
26 lbs. - Warranty:
10 Years.
Functions:
- RLX01-SR: Passage
- RLX08-SR: Single Dummy
- RLX72-SR: Privacy
- RLX81-SR: Entrance/Office
- RLX82-SR: Storeroom
- RLX87-SR: Classroom
- RLX08-SR: Rigid trim for one side of door only. Used as pull or to match active trim.
Parts:
- RLX-201A:
Screw pack for chassis, rose, & thru-bolts.
Finishes:
- 03/605/US3 – Bright Brass
- 613E/US10BE – Dark Oxide Satin Bronze, Equivalent
- 26D/626/US26D – Satin Chromium Plated
Features
- Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
- Average Case Weight: 26 lbs.
- Freewheeling Lever Action: Standard.
- Door Thickness: Fits 1-3/8″ to 1-3/4″, factory set for 1-3/4″
- Latch: 2-3/4″ backset, 1-1/8″ front
- Warranty: 10 Years.
- Handing: Non-Handed.
- Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
- Case Quantity: 6 per case.
- Strike: ANSI 1-1/4″ x 4-7/8″
Attributes
Alternate Codes: ARRRLX17SR10B-IC-2 3/4 BS, ARRRLX17SR10B-IC34, RLX17SR10B-IC-2 3/4 BS, RLX17SR10BIC234BS, RLX17SR10B-IC34, RLX17SR10BIC34, RLX17SR613E-IC-2 3/4 BS, RLX17SR613EIC234BS
Backset: 2-3/4″
Category: Commercial Locks, Cylindrical Levers, Lock Sets
Certifications: A117.1, A156.2, A156.41, ADA, ANSI, BHMA, ICC, UL/cUL Listed 3 Hour
Cylinder Included: No
Cylinder Type: SFIC Cylinder
Door Application: Cylindrical Levers
Door Bore Prep: Cylindrical Lockset 2.125in Prep
Door Bore Size: 2-1/8″
Door Thickness: 1-3/8″-1-3/4″
Door Thickness Max: 1-3/4″
Door Thickness Min: 1-3/8″
Finish: Oil Rubbed Bronze
Finish Code: 613E
Finish Color: Dark Oxidized Satin Bronze (Equivalent)
Function: Classroom
Grade: Grade 2
Handing: Non-Handed
Key Quantity: 2
Knob/ Lever Design: Sierra
Knob/ Lever Style: Lever
Latch Bolt Face Type: Square Corner
Latch Bolt Faceplate Size: 2-1/4″ x 1-1/8″
Latch Bolt Throw: 1/2″
Latch Bolt Type: Deadlatch
Latchbolt Type: 2-3/4″ Deadlatch
Lever Design: Sierra
Lock Category: Cylindrical Lock
Manufacturer: Arrow Lock Company
Rose/ Escutcheon: Rose
Rose/ Escutcheon Size: 3-11/32″
Rose/ Escutcheon Style: Rose
Series: RLX Series
Strike Size: 4-7/8″ x 1-1/4″
Strike Type: Default ANSI
