Description

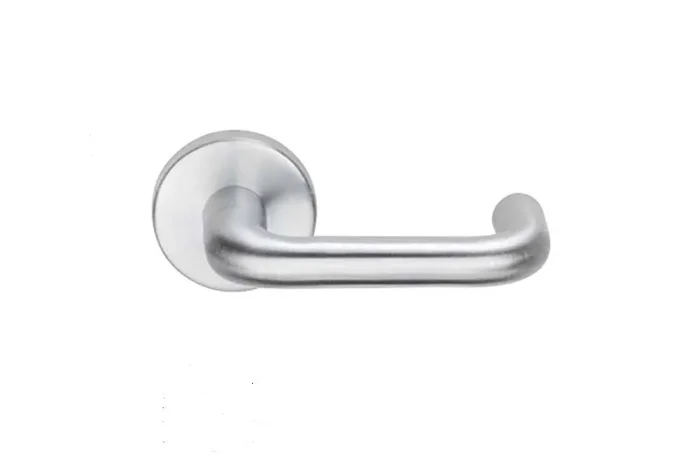

Schlage L9071P03A605 Classroom Security Mortise Lock C Keyway, 03 Lever, A Rose, Brass Finish
Schlage Commercial L9071P03A605 Classroom Security Mortise Lock offers an ideal solution for enhancing safety and accessibility in educational environments. Designed with a C keyway, this lockset features a sleek bright brass finish that combines durability with timeless elegance. The 03 lever and A rose design not only provide a modern aesthetic but also ensure ease of use. With a 2-3/4″ backset, this mortise lock is suitable for doors measuring 1-3/4″ thick, making it versatile for various applications. Its reversible handing allows for flexible installation, accommodating different door orientations. The lock’s robust zinc base construction ensures long-lasting performance, and it is UL listed for 3-hour fire doors, offering peace of mind in emergency situations. The L9071P also incorporates a 6-pin keyway and comes with a limited warranty of 3 years for mechanical parts and 1 year for electromechanical components. The latch faceplate measures 1-1/4″ x 8″, and the ANSI strike features a dimension of 4-7/8″ with a 1-1/4″ lip, ensuring a secure fit.Ideal for classroom security, the Schlage L9071P03A605 is an excellent choice for building professionals and knowledgeable homeowners seeking reliable, stylish door hardware.
Classroom Security Mortise Lock C Keyway with 03 Lever and A Rose Bright Brass Finish
- Classroom Security – Latchbolt Retracted from Either Side, Latchbolt Retracted by Key or Lever, Auxiliary Latch Deadlocks Latchbolt When Locked, When Locked Depress Inside Lever and Turn Key to Engage Holdback and Unlock Door, Inside is Always Free
- ANSI/BHMI Certified A156.13-2012
- Commercial Grade 1
- Lock Body Mortises Inside the Edge of the Door
- UL Listed for 3 Hour Fide Door
Attributes
Ansi Function: F32 – Classroom Security
Baa Qualified: Yes
Backset: 2-3/4″ Backset
Bolt Protection: 3/4″
Category: Mechanical Commercial Locksets
Country of Origin: Mexico
Cylinder Type: Conventional Cylinder
Design: 03 Lever and A Rose
Dimension: 2-1/8″ Rose with 4-3/4″ Lever and 2-13/16″ Projection
Door Range: 1-3/4″
Door Thickness: 1-3/4″
Dust Box: Plastic
Finish: Bright Brass
Finish Code: 605
Finish : Bright Brass
Fire Rated: 3 Hours {A}
Function: 9071-Classroom Security Lock
Grade: Grade 1
Hand: Field Reversible
Handing: Reversible
Hazardous Material: NO
Keying: Keyed Different
Keys: Cut
Keyway: S123
Latch Faceplate Dimension: 1-1/4″ x 8″
Lever Knob Design: 03 – Lever
Limited Warranty: 3 Years
Lock Face Size: 8″ x 1-1/4″
Manufacturer Warranty: 3 Year Limited Mechanical Warranty and 1-Year Limited Electromechanical Warranty
Material: Zinc Base
No Of Inners: 1
No Of Pins: 6 Pin Keyway
Num Of Keys: 2
Num Pins: 6
Order_ Qty: 1
Rose Escutcheon Design: A – Rose
Screws: Combination
Series: L Series
Strike: ANSI Strike
Strike Dimension: 4-7/8″ with 1-1/4″ Lip
Strike Height: 4-7/8″
Strike Number: 10-072
Strike Type: ASA
Strike Width: 1-1/4″
Subcategory: Mortise Locksets
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing Type: UL Listed for 3 Hour Fire Door
