Description

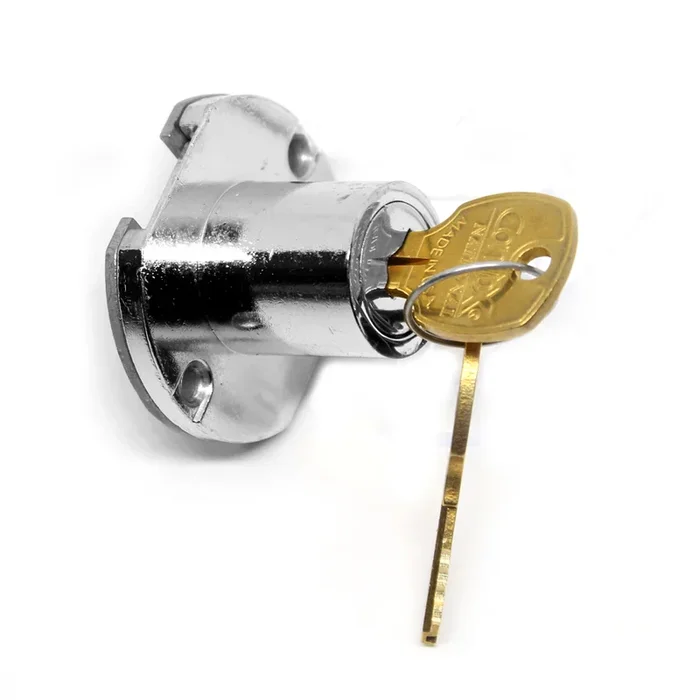

Compx C8704-KD-14A Disc Door Lock Bolt 15/16in
Compx Security Products C8704-KD-14A Disc Door Lock Bolt offers a reliable security solution for both drawers and doors, ensuring peace of mind in your residential or professional space. Designed for surface mounting, this lock requires a 7/8″ diameter hole for the cylinder, making installation straightforward and efficient. The C8704-KD-14A features a deadbolt mechanism that allows the key to be removed in both locked and unlocked positions. It is compatible with other disc tumbler locks using the D8785 key blank, enabling seamless integration into existing security systems. For those requiring master keying, this model can be keyed to E41A with the D8783 key blank. Each package includes two keys and mounting screws, with an optional trim ring available separately. The robust construction is complemented by a bright nickel finish, enhancing both durability and aesthetic appeal. With a cylinder length of 15/16″ and a bolt travel of 11/32″, this lock strikes the perfect balance between strength and functionality. Ideal for professionals and knowledgeable homeowners alike, the Compx Security Products C8704-KD-14A ensures that your property remains secure while providing easy access when needed. Upgrade your security hardware with this dependable locking solution today.
Disc Door Lock Bolt 15/16in
Notice: The info below is not item specific.
C8703, C8704, C8705, C8706, C8803:
- Application: For drawers and doors. Surface mounted. Requires 7/8″ diameter hole for cylinder.
- Operation: Key removable in both locked and unlocked positions except C8706.
- Keying: Will key together with all other disc tumbler locks using D8785 key blank. See table for available keying. Master keying to E41A using D8783 key blank.
- Packaging: Supplied with two keys and mounting screws. C8706 furnished with strike. If trim ring is required, order C2017 separately.
- Part No.: M503441026X150J – Replacement insertable bolts for C8701.
| Part No. | Installation | Bolt Type | Cylinder Length | Bolt Travel | KA * Codes | KD Changes | MKKD Changes | Case QTY | Reference Number | Key Blank |
| C8703-14A | Drawer | Dead | 15/16″ | 11/32″ | 6 | 200 | 200 | 25 | M4-6707-170 | D8785 |
| C8703-3 | Drawer | Dead | 15/16″ | 11/32″ | 6 | 200 | 200 | 25 | M4-6707-170 | D8785 |
| C8703-4G | Drawer | Dead | 15/16″ | 11/32″ | 6 | 200 | 200 | 25 | M4-6707-170 | D8785 |
| C8704-14A | Door | Dead | 15/16″ | 11/32″ | 6 | 200 | 200 | 25 | M4-6707-172 | D8785 |
| C8704-3 | Door | Dead | 15/16″ | 11/32″ | 6 | 200 | 200 | 25 | M4-6707-172 | D8785 |
| C8704-4G | Door | Dead | 15/16″ | 11/32″ | 6 | 200 | 200 | 25 | M4-6707-172 | D8785 |
| C8705-14A | Drawer | Dead | 1-3/16″ | 11/32″ | 3 | 200 | 200 | 25 | M4-6707-171 | D8785 |
| C8705-3 | Drawer | Dead | 1-3/16″ | 11/32″ | 3 | 200 | 200 | 25 | M4-6707-171 | D8785 |
| C8705-4G | Drawer | Dead | 1-3/16″ | 11/32″ | 3 | 200 | — | 25 | M4-6707-171 | D8785 |
| C8706-3 | Drawer | Spring | 15/16″ | 9/32″ | 3 | 200 | — | 25 | M4-6708-170 | D8785 |
| C8803-14A | Drawer | Dead | 15/16″ | 11/32″ | 6 | 200 | 200 | 25 | M4-8803-001 | D8785 |
| C8803-3 | Drawer | Dead | 15/16″ | 11/32″ | 6 | 200 | 200 | 25 | M4-8803-001 | D8785 |
| C8803-4G | Drawer | Dead | 15/16″ | 11/32″ | 6 | 200 | 200 | 25 | M4-8803-001 | D8785 |
Key Codes Used:
- 3 Codes – C346A, C413A and C415A.
- 6 Codes – C346A, C390A, C413A, C415A, C420A and C642A.
Features
- Packaging: Supplied with two keys and mounting screws. C8706 furnished with strike. If trim ring is required, order C2017 separately.
- Operation: Key removable in both locked and unlocked positions except C8706.
- Keying: Will key together with all other disc tumbler locks using D8785 key blank. See table for available keying. Master keying to E41A using D8783 key blank.
- Application: For drawers and doors. Surface mounted. Requires 7/8″ diameter hole for cylinder.
- Part No.: M503441026X150J – Replacement insertable bolts for C8701.
Attributes
Alternate Codes: 126635, C8704-KD-14A, C8704KD14A, COMC8704KD14A
Category: Cam & Drawer, Cam & Drawer Locks Etc., Lock Sets
Finish Color: Bright Nickel
Lock Style: Disc Door Lock
Size: 15/16″
