Description

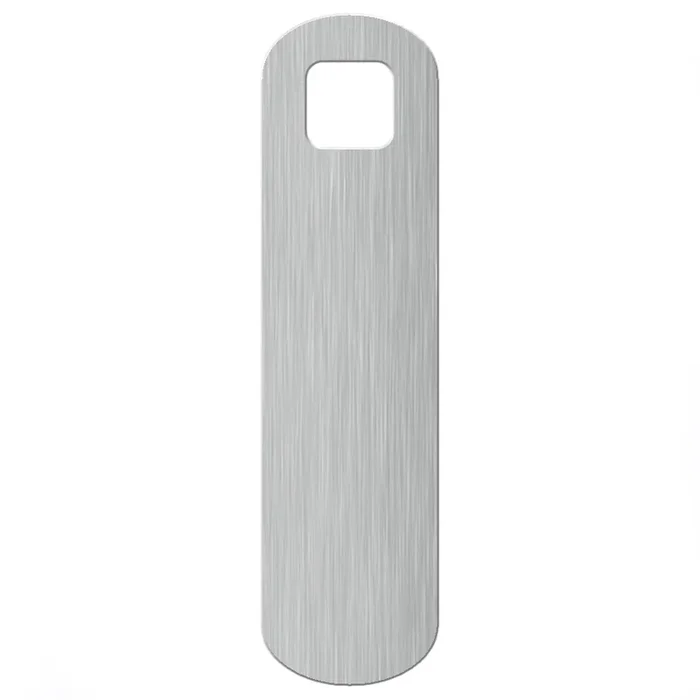

Compx C7004-2C Cam 2in Straight
Compx Security Products C7004-2C Cam 2in Straight offers a reliable solution for adapting disc tumbler cylinder cam locks to a variety of applications. Designed specifically for overlay construction, this cam is compatible with 3/4″ thick front and frame materials, making it an ideal choice for secure installations in both residential and commercial settings. With its 2-inch length, the C7004-2C cam is zinc plated, ensuring durability and resistance to corrosion. This cam is part of a broader selection of cams from Compx, which includes options like Straight Hook Cams and Double Formed Cams that can be reversed as needed to fit different locking requirements. The C7004-2C is packaged with 25 units per bag, making it convenient for builders and locksmiths who need to stock up on quality components. Pair this cam with the C8053 disc tumbler lock for seamless functionality, ensuring your security systems operate efficiently. Ideal for professional use, the C7004-2C cam provides the versatility and robustness needed to enhance your locking solutions, making it a smart choice for any project involving security hardware.
Cam 2in Straight
Notice: The info below is not item specific.
Selection of cams that permit adaption of disc tumbler cylinder cam locks to meet nearly every application need. Straight Hook Cams and Double Formed Cams can be reversed when required. For overlay construction using 3/4″ thick front and 3/4″ thick frame material. Use with C8053 disc tumbler lock.
| Part No. | Length | Offset | QTY Per Bag | |
| C7001-2C | Straight Cam | 3/4″ | – | 25 |
| C7002-2C | Straight Cam | 1″ | – | 25 |
| C7003-2C | Straight Cam | 1-1/8″ | – | 25 |
| C7004-2C | Straight Cam | 2″ | – | 25 |
| C7005-2C | Straight Cam | 3″ | – | 25 |
| C7006-2C | Straight Hook Cam | 1″ | – | 25 |
| C7007-2C | Straight Hook Cam | 1-1/8″ | – | 25 |
| C7008-2C | Straight Hook Cam | 1-1/2: | – | 25 |
| C7009-2C | Double Formed Cam | 1-3/4″ | 1/2″ | 25 |
| C7010-2C | Single Formed Cam | 5/8″ | 7/32″ | 25 |
| C7011-2C | Single Formed Cam | 1-1/8″ | 7/16″ | 25 |
| C7012-2C | Single Formed Cam | 1″ | 7/16″ | 25 |
| C7013-2C | Double Formed Cam | 1/18″ | 3/8″ | 25 |
| C7014-2C | Double Formed Cam | 1-5/8″ | 5/16″ | 25 |
Attributes
Alternate Codes: 115806, 562959, C70042C, C7004-2C
Category: Cam & Drawer, Cam & Drawer Locks Etc., Lock Sets
Finish Color: Zinc Plated
Lock Style: Cam Lock
Size: 2″
Resources
- Cut Sheet
