Description

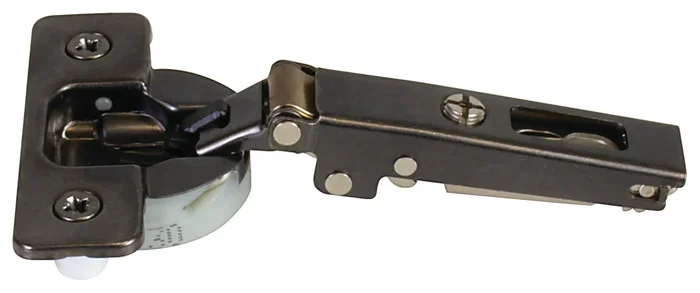

Hafele 329.50.417 Salice 100 Series Concealed Hinge, 105 Opening Angle, Silentia+, Titanium
Hafele 329.50.417 Concealed Hinge, Salice 100 Series, offers a seamless solution for wood door applications with its elegant design and superior functionality. Engineered for inset overlay installations, this hinge supports a generous 105° opening angle, allowing for unobstructed access while enhancing the visual appeal of cabinetry. Constructed from durable steel and finished in a stylish titanium color with nickel plating, this hinge not only resists wear but also complements a variety of design aesthetics. Its Silentia+ feature ensures a smooth and silent closing operation, contributing to a sophisticated user experience. With an impressive performance that exceeds ANSI/BHMA standards A156.9 2010, you can trust this hinge to maintain its functionality even in challenging environments. Installation is straightforward, requiring cup drilling with a drilling pattern of 45/9.5. Please note that mounting plates are sold separately, allowing for tailored assembly options. This hinge is impervious to temperature extremes, making it a reliable choice for various climates. Ideal for discerning builders and homeowners alike, the Hafele 329.50.417 hinge is a perfect blend of aesthetics and performance, ensuring your cabinet doors operate effortlessly while looking sleek and modern.
Salice – Concealed Hinge, 100 Series, 105 Opening Angle, Silentia+, Nickel Plated
Inset Overlay, C1R6PE6, Dowel, Titanium
Impervious to temperature extremes Exceeds ANSI/BHMA standards A156.9 2010
Attributes
Adjustment facility: Side adjustment 4.5 mm, Height adjustment -2 – 2 mm
Area of application: For wood doors
Color/finish: Titanium colored, nickel plated
Cup drilling depth: 12.50 mm
Cup fixing: For press fitting
Door processing for assembly: with cup drilling
Drilling pattern: 45/9.5
Material: Steel
Model No.: C1R6PE6
Opening angle: 105°
Order reference: Mounting plates sold separately
Resources
- Manufacturer information
- TCH_Furniture_Cabinetry_Hardware_ 2022 | Page 9.17
