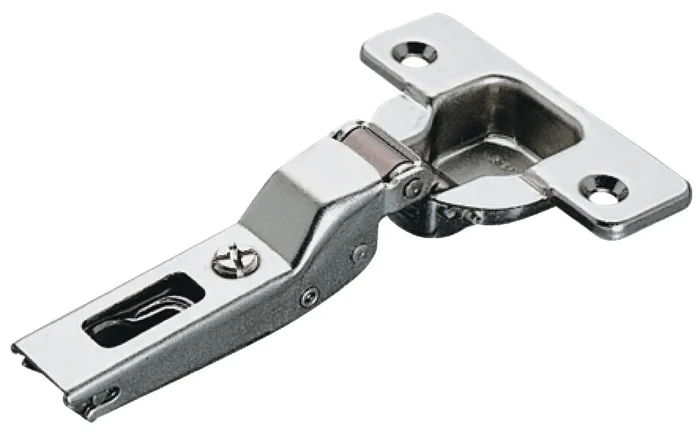

Hafele 329.31.532 Salice 200 Series Concealed Hinge, 94, Half Overlay
Hafele 329.31.532 Concealed Hinge, Salice 200 Series, 94, Half Overlay Mounting offers robust performance for thick wood doors while ensuring a seamless aesthetic. Designed with a half overlay mounting configuration, this hinge features a cranked design that allows for an impressive opening angle of 94°. The hinge incorporates a self-closing mechanism, enhancing usability and convenience. Installation is straightforward, as it employs a cup drilling depth of 11.00 mm and a cup drilling diameter of 35.00 mm, allowing for efficient assembly with minimal tools required. It is compatible with both slide-on systems and quick fixing systems, making it versatile for various cabinet designs. With an adjustment facility that includes side adjustment of 4.5 mm and height adjustment ranging from -2 to +2 mm, achieving precise alignment is simple. Constructed from durable steel and finished in a nickel plating, this hinge not only promises longevity but also complements a range of interior styles. The automatic closing spring ensures doors close securely, enhancing safety and functionality. For building professionals and discerning homeowners, the Hafele 329.31.532 Concealed Hinge is an ideal choice for reliable, stylish door operation.
Salice – Concealed Hinge, 200 Series, 94, Half Overlay Mounting
cup fixing: For screw fixing, Self-close, Logica mounting, model C2JBG99
Dimensions and gap specifications in the drawings and tables are calculated: with factory settings – with mounting plate distance 0 mm – for door offset with max. opening angle
- Minimum gap Door thickness mm Distance to cup E mm 3,0 4,0 5,0 6,0 7,0 8,0 9,0 19 0,1 0,1 0,1 0,1 0,1 0,1 0,1 20 0,2 0,2 0,2 0,2 0,2 0,2 0,2 22 0,4 0,4 0,4 0,4 0,4 0,4 0,4 24 0,7 0,7 0,7 0,6 0,6 0,6 0,6 26 1,0 1,0 1,0 1,0 1,0 0,9 0,9 28 2,6 1,9 1,4 1,4 1,3 1,3 1,3 30 4,5 3,8 3,1 2,6 2,1 1,8 1,8 32 6,4 5,7 5,0 4,4 3,8 3,3 2,9 33 7,4 6,6 5,9 5,3 4,7 4,2 3,7 34 8,3 7,6 6,9 6,2 5,6 5,1 4,6 35 9,3 8,6 7,8 7,2 6,5 6,0 5,4 Minimum gap F Rounding off the edge of door reduces the given values.
- Door overlay mm 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 3 4 5 6 7 8 9 0 3 4 5 6 7 8 9 3 3 4 5 6 7 8 9 6 3 4 5 6 7 8 9 9 Distance to cup E mm Mounting plate distance mm
Attributes
Adjustment facility: Side adjustment facility 4.5 mm, Height adjustment facility -2 – 2 mm, Depth adjustment with Metalla 510 A mounting plates +2.8 mm, with Metalla 510 SM mounting plates from -0.5 to +2.8 mm
Area of application: For thick wood doors
Color/finish: nickel plated
Concealed hinge version: Half overlay mounting/twin mounting
Crank type: Cranked
Cup drilling depth: 11.00 mm
Cup drilling Ø: 35.00 mm
Cup fixing: without tools
Door processing for assembly: with cup drilling
Drilling pattern: 45/9.5
For door material: wood
Installation: Door on cabinet with slide-on system A or quick fixing system SM
Lock function: With automatic closing spring, Without soft closing mechanism
Material: Steel
Model No.: C2JBG99
Opening angle: 94°
Order reference: Drilling pattern 45/9.5 available by request.
Resources
- Manufacturer information
- TCH_Furniture_Cabinetry_Hardware_ 2022 | Page 9.19
