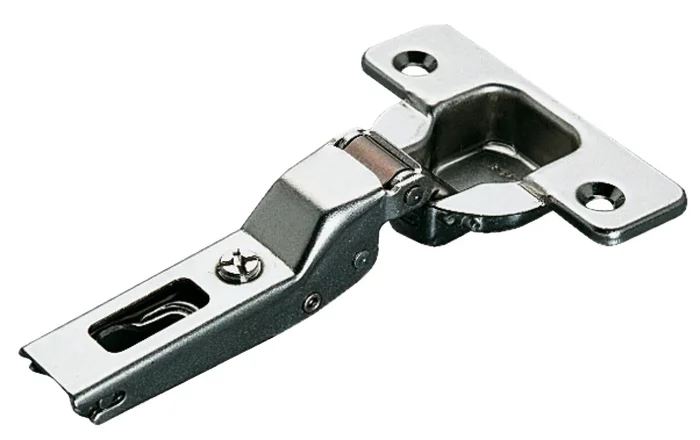

Hafele 329.17.802 Salice PUSH Concealed Hinge, 110 Opening, Self-Opening, Half Overlay
Hafele 329.17.802 Concealed Hinge offers a sophisticated solution for modern, handle-less furniture designs. Engineered with a self-opening mechanism and a generous 110° opening angle, this hinge ensures nearly automatic access to your cabinets, enhancing functionality without compromising aesthetics. The half overlay design seamlessly integrates into your cabinetry, providing a clean and minimalist appearance. Constructed from durable steel with a sleek nickel-plated finish, the hinge features a cranked type for reliable performance. It is designed for screw mounting, making installation straightforward with compatible mounting plates such as Metalla 510 A and SM. The hinge accommodates a range of door thicknesses and adjustments, including side, height, and depth, allowing for precise alignment and easy customization. With a cup drilling depth of 11 mm and a diameter of 35 mm, the Hafele 329.17.802 ensures a secure fit for wooden doors. This product not only meets the growing demand for discreet hardware but also enhances the user experience with its automatic opening capability. Ideal for both professional builders and discerning homeowners, this concealed hinge is a testament to Hafele’s commitment to innovation in furniture fittings.
Salice – Concealed Hinge, PUSH, 110 Opening Angle, Self-Opening, Half Overlay
Screw mounting, model C2PPG99
Developed to meet the market trend of handle-less furniture Self-opening hinges and release devices that can easily be mounted to your furniture Allows for a very “clean” design appearance Reverse-spring hinges help “PUSH” the door open
Nearly complete automatic opening of the door
- Minimum gap Door thickness mm Distance to cup E mm 3,0 4,0 5,0 6,0 16 0,5 0,5 0,5 0,5 17 0,7 0,7 0,7 0,7 18 0,9 0,9 0,9 0,9 19 1,2 1,2 1,2 1,2 20 1,5 1,5 1,5 1,5 21 1,8 1,8 1,8 1,8 22 2,4 2,1 2,1 2,1 23 3,7 2,7 2,6 2,5 24 5,1 4,1 3,1 3,0 25 6,5 5,5 4,1 3,5 26 7,8 6,8 5,4 4,4 Minimum gap F Rounding off the edge of door reduces the given values.
- Door overlay mm 0 1 2 3 4 5 6 7 8 9 10 11 12 3 4 5 6 0 3 4 5 6 3 3 4 5 6 6 3 4 5 6 9 Distance to cup E mm Mounting plate distance mm
Attributes
Adjustment facility: Side adjustment facility 4.5 mm, Height adjustment facility -2 – 2 mm, Depth adjustment with Metalla 510 A mounting plates +2.8 mm, with Metalla 510 SM mounting plates from -0.5 to +2.8 mm
Area of application: For handle-free opening
Color/finish: nickel plated
Concealed hinge version: Half overlay mounting/twin mounting
Crank type: Cranked
Cup drilling depth: 11.00 mm
Cup drilling Ø: 35.00 mm
Cup fixing: for screw fixing
Door processing for assembly: with cup drilling
Drilling pattern: 45/9.5
For door material: wood
Installation: Door on cabinet with slide-on system A or quick fixing system SM
Lock function: With automatic opening mechanism (Push)
Material: Steel
Model No.: C2PPG99
Opening angle: 110°
Order reference: Drilling pattern 45/9.5 available by request.
