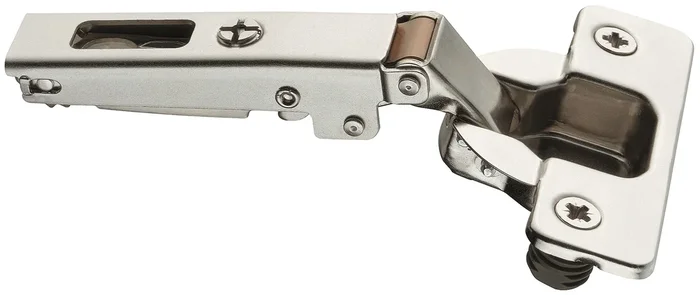

Hafele 329.17.810 Salice PUSH Concealed Hinge, 110 Opening, Self-Opening, Full Overlay
Hafele 329.17.810 Concealed Hinge, Salice PUSH, 110 Opening Angle, Self-Opening, Full Overlay offers a sophisticated solution for handle-less furniture applications. Designed with modern aesthetics in mind, this self-opening hinge promotes a clean and seamless appearance while enhancing functionality. The reverse-spring mechanism effortlessly pushes the door open, providing nearly automatic access. This hinge features a full overlay design, perfect for cabinetry where a sleek look is paramount. The cup drilling depth of 11 mm and diameter of 35 mm facilitate easy installation, complemented by a precise drilling pattern of 45/9.5. With a robust nickel-plated finish, it not only ensures durability but also adds a touch of elegance. Installation is straightforward, as it accommodates a slide-on system A or a quick fixing system SM. The hinge provides ample adjustment options, including side adjustments of 4.5 mm and height adjustments ranging from -2 to +2 mm. Crafted from steel, the hinge is designed for wooden doors, making it versatile for various furniture styles. With an opening angle of 110°, the Hafele 329.17.810 is engineered for convenience, allowing for smooth and easy access while maintaining a minimalist aesthetic. This hinge is an ideal choice for professionals looking to elevate their designs with innovative hardware solutions.
Salice – Concealed Hinge, PUSH, 110 Opening Angle, Self-Opening, Full Overlay
Salice, Press-fit, model C2RPA99
Developed to meet the market trend of handle-less furniture Self-opening hinges and release devices that can easily be mounted to your furniture Allows for a very “clean” design appearance Reverse-spring hinges help “PUSH” the door open
Nearly complete automatic opening of the door
- Minimum gap Door thickness mm Distance to cup E mm 3,0 4,0 5,0 6,0 16 0,5 0,5 0,5 0,5 17 0,7 0,7 0,7 0,7 18 0,9 0,9 0,9 0,9 19 1,2 1,2 1,2 1,2 20 1,5 1,5 1,5 1,5 21 1,8 1,8 1,8 1,8 22 2,4 2,1 2,1 2,1 23 3,7 2,7 2,6 2,5 24 5,1 4,1 3,1 3,0 25 6,5 5,5 4,1 3,5 26 7,8 6,8 5,4 4,4 Minimum gap F Rounding off the edge of door reduces the given values.
- Door overlay mm 9 10 11 12 13 14 15 16 17 18 19 20 21 3 4 5 6 0 3 4 5 6 3 3 4 5 6 6 3 4 5 6 9 Distance to cup E mm Mounting plate distance mm
Attributes
Adjustment facility: Side adjustment facility 4.5 mm, Height adjustment facility -2 – 2 mm, Depth adjustment with Metalla 510 A mounting plates +2.8 mm, with Metalla 510 SM mounting plates from -0.5 to +2.8 mm
Area of application: For handle-free opening
Color/finish: nickel plated
Concealed hinge version: full overlay
Crank type: Straight
Cup drilling depth: 11.00 mm
Cup drilling Ø: 35.00 mm
Cup fixing: For press fitting
Door processing for assembly: with cup drilling
Drilling pattern: 45/9.5
For door material: wood
Installation: Door on cabinet with slide-on system A or quick fixing system SM
Lock function: With automatic opening mechanism (Push)
Material: Steel
Model No.: C2RPA99
Opening angle: 110°
Order reference: Drilling pattern 45/9.5 available on request
