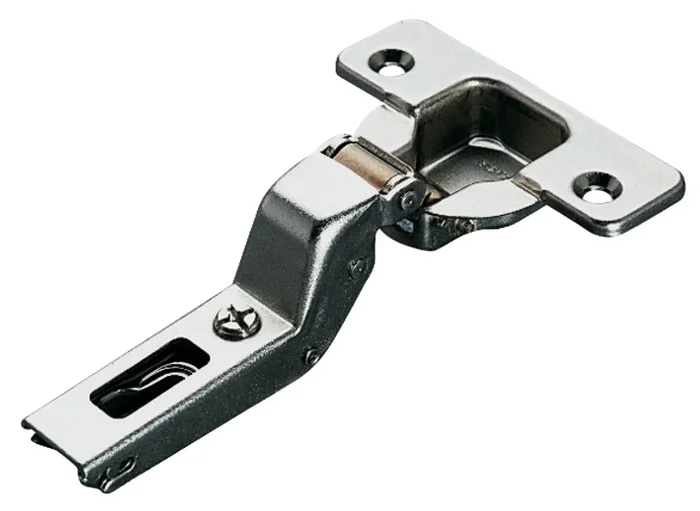

Hafele 329.17.803 Salice PUSH 110 Concealed Self-Opening Hinge, Inset Mounting
Hafele 329.17.803 Concealed Hinge offers a seamless solution for those seeking the elegance of handle-less furniture. Designed to cater to modern aesthetics, this self-opening hinge employs a high-cranked reverse-spring mechanism that effortlessly “pushes” doors open, ensuring nearly automatic access. With an impressive opening angle of 110°, it maximizes usability while maintaining a clean, unobtrusive appearance. Installation is straightforward thanks to its screw mounting system (model C2PPP99), making it compatible with various cabinet styles. The hinge accommodates doors with wood materials and features cup drilling at a depth of 11 mm and a diameter of 35 mm for easy assembly. The side adjustment facility of 4.5 mm and height adjustment of -2 to +2 mm allow for precise alignment, ensuring a perfect fit regardless of the installation environment. Nickel plating not only enhances the hinge’s durability but also complements a variety of design styles. This concealed hinge is specifically engineered for inset mounting, reinforcing the minimalist design trend. Whether you’re a building professional or a discerning homeowner, the Hafele 329.17.803 is an ideal choice for achieving a sophisticated look without compromising functionality.
Salice – Concealed Hinge, PUSH 110 Opening Angle, Self-Opening, Inset Mounting
Screw mounting, model C2PPP99
Developed to meet the market trend of handle-less furniture Self-opening hinges and release devices that can easily be mounted to your furniture Allows for a very “clean” design appearance Reverse-spring hinges help “PUSH” the door open
Nearly complete automatic opening of the door
Developed to meet the market trend of handle-less furniture Self-opening hinges and release devices that can easily be mounted to your furniture Allows for a very “clean” design appearance Reverse-spring hinges help “PUSH” the door open
- Minimum gap Door thickness mm Distance to cup E mm 3,0 4,0 5,0 6,0 16 0,5 0,5 0,5 0,5 17 0,7 0,7 0,7 0,7 18 0,9 0,9 0,9 0,9 19 1,2 1,2 1,2 1,2 20 1,5 1,5 1,5 1,5 21 1,8 1,8 1,8 1,8 22 2,4 2,1 2,1 2,1 23 3,7 2,7 2,6 2,5 24 5,1 4,1 3,1 3,0 25 6,5 5,5 4,1 3,5 26 7,8 6,8 6,4 4,4 Minimum gap F Rounding off the edge of door reduces the given values.
- Door overlay mm -8 -7 -6 -5 -4 -3 -2 -1 0 1 2 3 4 0 3 4 5 3 3 4 5 6 6 3 4 5 6 9 Distance to cup E mm Mounting plate distance mm
Attributes
Adjustment facility: Side adjustment facility 4.5 mm, Height adjustment facility -2 – 2 mm, Depth adjustment with Metalla 510 A mounting plates +2.8 mm, with Metalla 510 SM mounting plates from -0.5 to +2.8 mm
Area of application: For handle-free opening
Color/finish: nickel plated
Concealed hinge version: inset
Crank type: High Cranked
Cup drilling depth: 11.00 mm
Cup drilling Ø: 35.00 mm
Cup fixing: for screw fixing
Door processing for assembly: with cup drilling
Drilling pattern: 45/9.5
For door material: wood
Installation: Door on cabinet with slide-on system A or quick fixing system SM
Lock function: With automatic opening mechanism (Push)
Material: Steel
Model No.: C2PPP99
Opening angle: 110°
Order reference: Drilling pattern 45/9.5 available by request.
