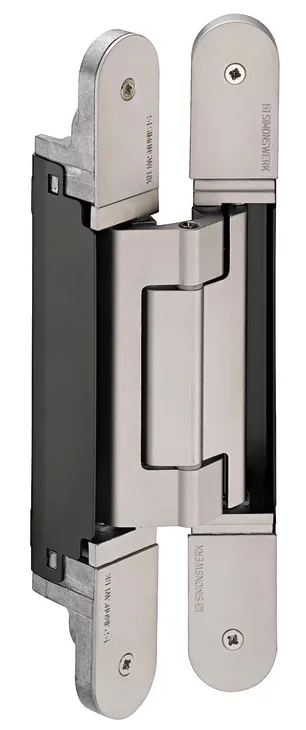

Hafele 924.19.437 TECTUS TE 640 3D Concealed Hinge
Hafele 924.19.437 Concealed Hinge, TECTUS TE 640 3D seamlessly combines functionality with a sleek aesthetic. Designed for use with flush interior doors, this hinge offers a maximum door weight capacity of 440 lbs, making it suitable for both wooden and metal frames. Its elegant matt deep black finish (RAL 9005) adds a contemporary touch to any space while ensuring durability through its powder-coated surface. Featuring 3D adjustability, this hinge allows for precise positioning with adjustments of 3 mm to the side, -3 to 3 mm in height, and ±1 mm for closing pressure, ensuring a perfect fit every time. The hinge is designed for doors with a minimum thickness of 1 9/16″ and is certified for 20-minute rated fire doors, accommodating door sizes up to 4′ x 8′ for a single door and 8′ x 8′ for a pair. With an opening angle of 180 degrees and maintenance-free slide bearings, the Hafele TECTUS hinge offers smooth operation and ease of installation for both DIN left and right-hand applications. Ideal for professionals seeking reliable, high-quality hardware, the Hafele 924.19.437 hinge is a smart choice for modern architectural needs.
Concealed Hinge, TECTUS TE 340 3D
matte deep black (RAL 9005)
Door weight: max. 80 kg (176 lbs.) Door thickness: min. 38 mm (1 1/2″) Opening angle: max. 180º Router bit Ø: 24 mm Router guide Ø: 30 mm (1 3/16″) Adjustment: three-dimensionally adjustable: Height and width: ± 3 mm (1/8″), Depth: ± 1 mm,
Maintenance-free slide bearings UL listed for 60 minute rated fire doors (maximum door size: 4′ x 8′ for a single door, 8′ x 8′ for a pair of doors)
Attributes
Adjustment facility: 3DContinuous, Side: 3 mm, Height: -3 – 3 mm, Closing pressure: ±1 mm
Area of application: Used in door frames made out of hollow metal or wood for flush interior doors. UL listed for 20 minute rated fire doors (maximum door size: 4′ x 8′ for a single door, 8′ x 8′ for a pair of doors
Color: Black, RAL 9005
Color/finish: Black, RAL 9005, matt, Powder coated
Door thickness: ≥40 mm
Door thickness min.: 1 9/16″
Door weight max.: 440 lbs
Finish: matte
Flange height: 240 mm
Flange shape: rounded
Flange width: 32 mm
For frame type: Steel frame, Wooden frame, Aluminium frame
Grade: 4|7|6|1|1|3|1|14
Material: Aluminum, Steel
Max. door weight for 2 hinges: 200.00 kg
Model: 107
Model series: TECTUS TE 640 3D
Mounting: For DIN left and DIN right hand use
Opening angle: 180.00 °
Router bit Ø: 24.00 mm
Standard: Certified in compliance with EN 1935:2002
Thrust ring Ø: 30.00 mm
Version: Maintenance-free slide bearings
Resources
- Manufacturer information
- TCH_Architectural_Hardware_ 2022 | Page 4.47
