Description

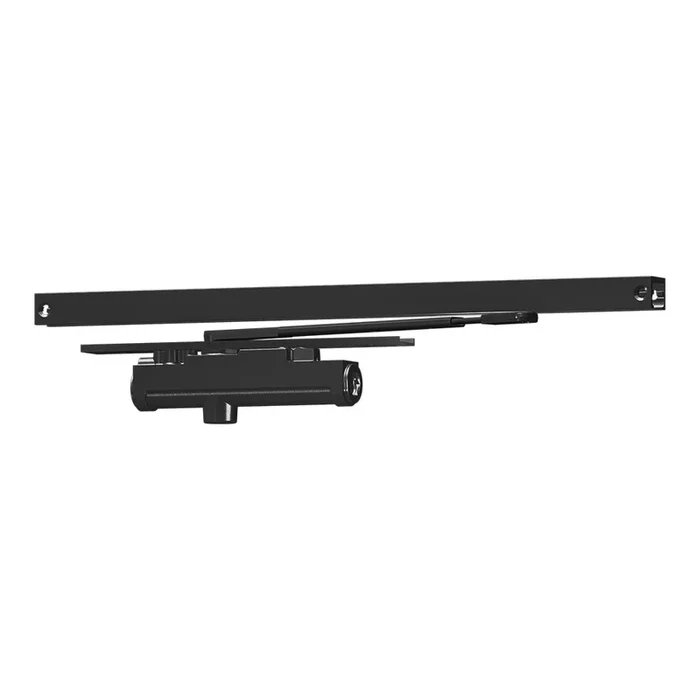

LCN 3133-BUMPER LH 693 Concealed Track Closer – GLBLK
LCN 3133-BUMPER LH 693 Concealed Track Closer GLBLK offers a seamless blend of functionality and aesthetics for commercial applications. Designed to fit a standard 1-3/4″ interior door, this Grade 1 concealed closer features a hydraulic track arm mount that ensures smooth door operation while remaining discreetly hidden. The double lever arm provides superior control, accommodating a 140-degree swing, ideal for high-traffic areas. Equipped with adjustable backcheck, the LCN 3133 allows for customized control over door speed and movement, enhancing safety and convenience. This model is handed for left-swinging doors and is sized for doors up to 3’2″, meeting ADA requirements for accessibility. The black painted finish not only adds an elegant touch but is also available in various custom powder-coated options to match architectural needs. Additionally, the closer is shipped with a standard arm, track, and screw pack, ensuring easy installation. Designed for durability, this product is built to withstand the demands of commercial use, with a limited 15-year warranty for added peace of mind. Choose the LCN 3133-BUMPER to elevate your door hardware solutions while maintaining a professional appearance and ensuring reliable performance.
Concealed Track Closer GLBLK
Grade 1 Standard Single Lever Concealed in Door Closer, Hydraulic Track Arm Mount In Door Mounting, Slide Track Arm Standard with Bumper with 140 Deg. Swing, Adjustable Backcheck, Size 3, Black Painted Finish, Left Hand
The Concealed 3030 Series is Designed to Mount in a 1-3/4″ Interior Door. The Double Lever Arm Provides Superior Door Control and the Choice of Finishes and Arm Functions Meet Virtually All Architectural Requirements.
The 3130 Series is a concealed closer designed to mount in a 1 3/4″ interior door.
The single lever arm and roller assembly of the LCN 3130 Series provides complete concealment and the choice of finishes and track functions meet virtually all architectural requirements.
- Standard 3130 series closer shipped with standard arm, standard track and wood and machine screw pack
- Sized cylinders for interior doors to 3’2”
- Handed for right or left swinging doors
- Closers to meet ADA requirements
- Standard or optional custom powder coated finish
- Optional plated finish on arm and fasteners
- Optional SRI primer for installations in corrosive conditions
- Consult factory for installation with pivots
Attributes
Manufacturer surcharge: 4.5%
Ansi: ANSI A156.4
Arm Type: Slide Track Arm, Standard with Bumper
Back Check: Adjustable
Closer Size: 3
Cold Weather Fluid: Yes
Commercial Residential: Commercial
Cover: No
Degree Swing: 140 Deg.
Delay: No
Finish: 693
Finish Family: Black
Grade: Grade 1
Handing: Left-Handed
Hold Open: No
Installation: Commercial
Limited Warranty: 15 Years
Mounting Group: Hydraulic
Mounting Location: Door
Mounting Style: Track Arm
Pack Qty: 1
Screw Type: Self-Tapping
Series: 3130 Series Concealed Closers
Ship Weight: 8 lbs.
Subtype: Concealed-in-Door Closers
Type: Concealed Door
Ul Listing: UL10C
Unit of Measure: Each
Resources
- 3130 Series Concealed Closers Cut Sheet
- LCN 3130 Series Installation Guide
- LCN Closers & Auto Operators Installation Guide
- LCN Concealed Closers Catalog
- LCN Electrified Door Control Product Guide
- LCN Fire/Life Safety Closers/Holders Series Product Guide 1
- LCN Fire/Life Safety Closers/Holders Series Product Guide 2
- Overhead Concealed Closer Cross-Reference Sheet
- Von Duprin Finishes Chart
