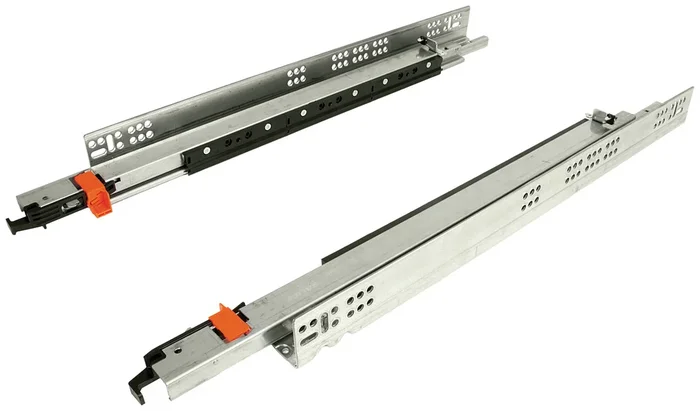

Hafele 421.23.102 Salice Progressa Smove Concealed Undermount Slide – 16
Hafele 421.23.102 Concealed Undermount Slide, Salice Progressa Smove – 16 offers a sophisticated solution for enhancing your cabinetry with its innovative soft-close feature designed for face frame construction. With a drawer length of 457 mm (18″), this undermount slide seamlessly integrates into your cabinetry, providing a clean aesthetic while ensuring optimal functionality. The fully integrated soft-close mechanism ensures that drawers close gently, eliminating slamming and promoting a quieter environment. Installation is a breeze thanks to the adjustable clips that allow for easy drawer insertion and removal. Tool-less adjustments provide added convenience, enabling height changes of +2.5 mm (3/32″), side adjustments of +/- 1.5 mm (1/16″), and depth adjustments of +/- 3 mm (1/8″). Designed for durability, the slide features elongated holes for optimal depth and height adjustments, as well as full extension capabilities with a synchronized mechanism. It supports a load-bearing capacity of 45 kg and is suitable for drawer boxes ranging from 12 to 16 mm (1/2″ – 5/8″). With a zinc-plated, bright finish, the Hafele 421.23.102 is an ideal choice for both face frame and frameless cabinetry, creating a refined and functional space.
Concealed Undermount Slide, Salice Progressa Smove – 16
Soft Close for Face Frame Construction, Drawer length: 457 mm (18″)
Adjustable clips allow for easy drawer insertion and removal Fully integrated soft close mechanism
Tool-less height adjustments: +2.5 mm (3/32″) Tool-less side adjustments: +/-1.5 mm (1/16″) Tool-less depth adjustment: +/- 3 mm (1/8″)
For drawers wider than 30″, a synchronizer kit is recommended
Attributes
Cabinet depth: Min: 477 mm (18 25/32″)
Color/finish: Zinc-plated, bright
Drawer length: 457.00 mm
Features: Elongated holes for depth and height adjustment Full extension with a synchronized mechanism
For internal cabinet depth min.: 480 mm (18 27/32″)
For max. internal cabinet depth: 522 mm (20 9/16″)
Installation: For 12 – 16 mm (1/2″ – 5/8″) drawer boxes
Load bearing capacity: 45.00 kg
Material: Steel
Nominal length: 468.00 mm
Type of pull out: Full extension
Version: For Face Frame and Frameless cabinetry
