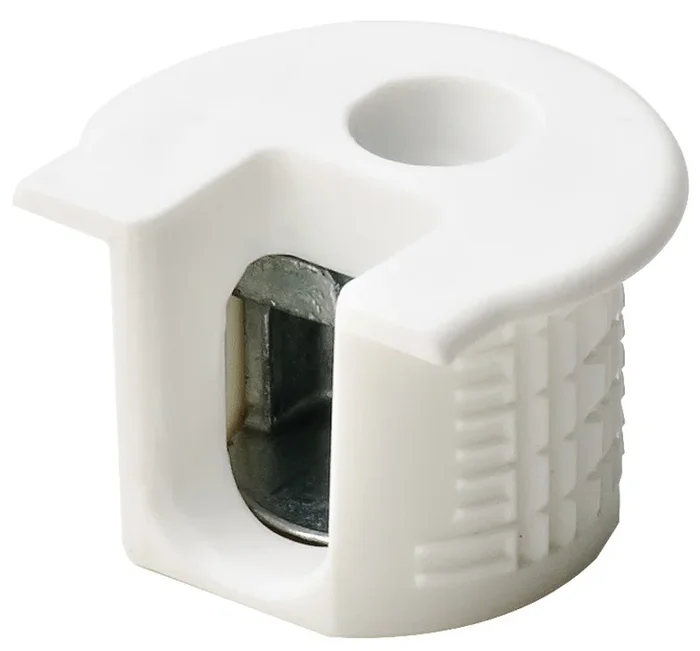

Hafele 263.10.705 Rafix 20 Plastic Connector Housing
Hafele 263.10.705 Connector Housing is an essential component of the Rafix 20 system, designed to facilitate seamless and robust connections in your woodworking projects. Crafted from durable plastic, this connector housing is specifically engineered for wood thicknesses of 19 mm or greater, ensuring compatibility with a wide range of applications. Its signal white finish, matching RAL 9003, provides a clean and professional appearance that integrates beautifully into various designs. This model features a tightening element made of zinc alloy, ensuring a secure fit without the need for additional dowels. With a 20 mm diameter and a drilling depth of 14.2 mm ± 0.2 mm, it provides precise installation capabilities. The Pozi #2 drive allows for easy installation, while the absence of a ridge simplifies the assembly process.Whether you’re a building professional or a knowledgeable homeowner, the Hafele 263.10.705 Connector Housing offers reliability and ease of use for your furniture fitting needs. Its thoughtful design and high-quality materials make it a dependable choice for any project requiring effective fastening solutions. Ship via UPS for added convenience, ensuring you have the hardware you need when you need it.
Connector Housing, Rafix 20 system, plastic
with Tightening Element, For wood thickness 19 mm, white
Drive: Pozi #2 Diameter: Connector housing: 20 mm
The colors shown are similar to RAL colors and are as close as possible to the actual standard colors. The color shades may vary slightly due to production reasons.
Attributes
Color/finish: Signal white, RAL 9003
Dim. A: 9.50 mm
Drill hole Ø housing: 20.00 mm
Drilling depth: 14.2 mm +0.2 mm
Drive: PZ2 cross slot
Features: with rim, with tightening element, without ridge, without dowel
For wood thickness: ≥19 mm
Material: Plastic, Tightening element: Zinc alloy
Ridge: without
Resources
- TCH_Furniture_Cabinetry_Hardware_ 2022 | Page 11.5
