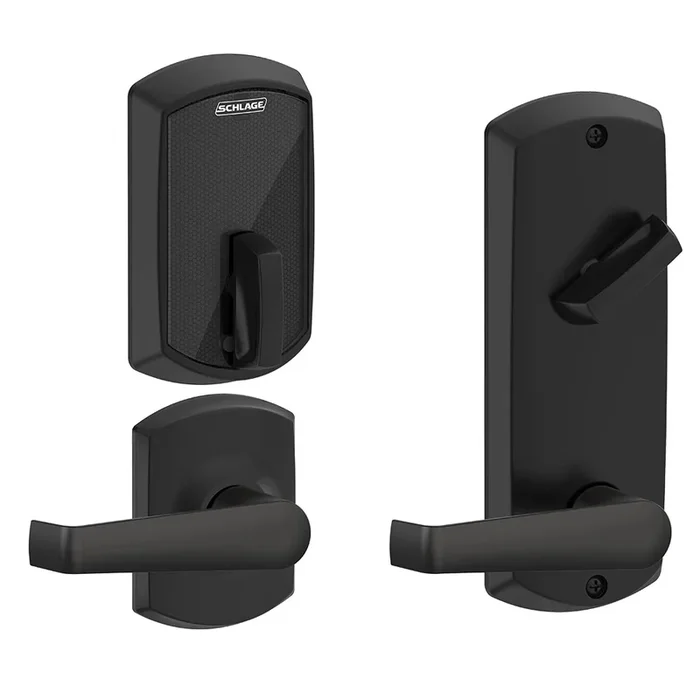

Schlage FE410F GRW 40 ELA 622 Control Smart Lock V2 Instructions
Schlage Electronics FE410F GRW 40 ELA 622 Control Smart Lock Ver 2.0 offers a blend of advanced technology and practical design for modern security needs. This Grade 2 electric deadbolt lock features a touchless Bluetooth smart reader, allowing for seamless keyless entry without the hassle of traditional keys. With no cylinder override, the lock supports up to 500 users, making it suitable for both commercial applications and high-traffic areas. Designed with convenience in mind, the lock is software programmable and operates on (4) AA batteries, providing reliable performance without complicated wiring. The flat black coated finish adds a sleek aesthetic that complements various architectural styles, while the non-handed design ensures easy installation on doors ranging from 1-3/8″ to 1-3/4″ thick. Additionally, the lock is UL Listed A 156.12, fire-rated for 1-1/2 hours, and ADA compliant, making it a secure and accessible option for all users. The Elan lever design enhances usability, and the adjustable latch backset accommodates standard door preparations. With a limited warranty of one year, the Schlage FE410F GRW is a durable and dependable choice for enhancing security in any commercial setting.
Control Smart Lock Ver 2.0
Grade 2 Electric Deadbolt Lock, Includes Touchless, Bluetooth Smart Reader, Keyless, No Cylinder Override, Elan Lever, Unit is Software Programmable, Supports 500 Users, (4) AA Batteries, Flat Black Coated Finish, Non-Handed
Attributes
Manufacturer surcharge: 4.5%
Access Function: Software Programmable
Accessible: Yes
Ada Compliance: Yes
Application: 4″ Center to Center Door Prep
Burglar Rated: No
Commercial Residential: Commercial
Cylinder Type: Keyless
Door Thickness: 1-3/8″ to 1-3/4″
Finish: 622/US19
Finish Family: Black
Fire Rated: 1-1/2 Hours {B} {D}
Fire Rating: 1-1/2 Hours {B} {D}
Function: No Cylinder Override
Grade: Grade 2
Handing: Non-Handed
Installation: Commercial
Keypad Type: Touchless
Latch Backset Dimension: Adjustable 2-3/8″ & 2-3/4″
Leverknob Design: ELA – Elan Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 1 Year
Lock Platform: Deadbolt Lock
Pack Height: 3.75″
Pack Length: 12.5″
Pack Qty: 1
Pack Volume: 585.94 in³
Pack Width: 12.5″
Pbs Options: 217579235
Power: (4) AA Batteries
Programmer: Required
Reader Technology: Bluetooth Smart
Restrictions: Certified
Rose Escutcheon Design Family: Electric
Roseescutcheon Design: Greenwich Trim
Series: FE410 Series Smart Interconnected Locks
Series Name: Schlage Control
Ship Weight: 7.5 lbs.
Software: Required
Std Strike Type: Square Corner Strike
Subtype: Deadbolts and Deadlatches
Type: Integrated and Pushbutton
Ul Listing: UL Listed A 156.12
Unit of Measure: Each
Users: 500
Resources
- FE410 Installation Instructions
- FE410 Series Smart Interconnected Locks Cut Sheet
- FE410 Template for Door with Existing Holes
- FE410 Template for Door with No Holes
- FE410 User Guide
- Schlage Control Data Sheet
- Von Duprin Finishes Chart
