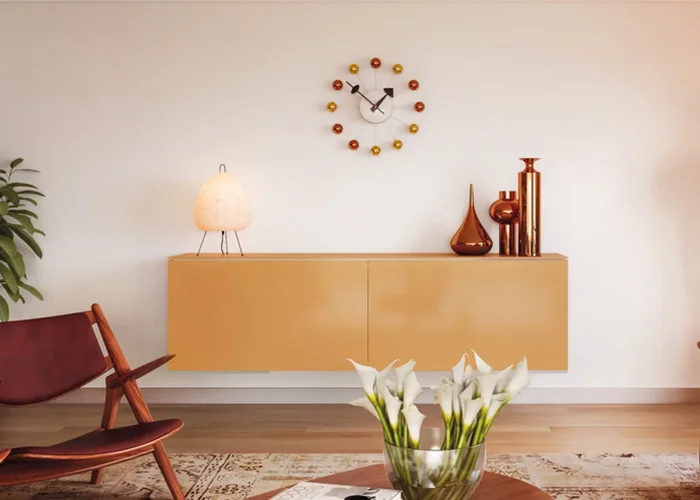

Hafele 406.02.061 Hawa Frontino 20 H FB Coplanar Door Set
Hafele 406.02.061 Coplanar Door, Hawa Frontino 20 H FB, set revolutionizes your cabinetry with its innovative design and functionality. Specifically crafted for base cabinets with an internal width of 1400–1599 mm, this system allows doors to open fully, providing unrestricted access to cabinet contents without any door offset. The pre-mounted running system ensures quick and hassle-free installation, eliminating the need for cabinet preparation. The integrated soft opening and closing mechanisms prevent door slamming while allowing for smooth and silent operation. Each door can weigh up to 44 lbs and must have identical dimensions, accommodating door thicknesses between 19 to 25 mm, with a maximum height of 1000 mm. The system features exceptional three-way door adjustment and a reliable ball-bearing guided running gear for optimal performance. Designed for wall units, sideboards, and base units, the Hafele Coplanar Door system supports a flush opening type and is equipped with a soft closing mechanism for enhanced usability. With a stylish aluminum finish and plastic rollers, this fitting is both durable and aesthetically pleasing. Elevate your furniture design with this sophisticated solution that combines ease of use with sleek functionality.
Coplanar Door, Hawa Frontino 20 H FB, set
For base cabinets, For internal cabinet width 1400–1599 mm (4′ 7 1/8″ – 5′ 2 15/16″)
Door can be fully opened to allow access to the complete cabinet contents no door offset easy and quick planning and installation no cabinet preparation required one fitting system for top and bottom running application excellent running properties
Three-way door adjustment Pre-mounted running system allows for minimal installation time Integrated soft opening and soft closing to prevent door slam Doors slide smoothly and quietly, and sit flush when in the closed position
Both doors must have identical dimensions.
Attributes
Area of application: For wall units/base units, sideboards
Cabinet version: wall units, sideboards, base units, with 2 symmetrical door leaves or for one single doors and drawers, for example
Distance from handle to door edge min.: 35.00 mm
Door stopper: Stopper system with soft closing mechanism integrated in running equipment
Door weight max.: 44 lbs
For cabinet width: Max: (3′ 3 3/8″) 1000 mm
For door height: ≤1,000 mm
For door thickness: 19 – 25 mm
For door thickness max.: 1″
For door thickness min.: 3/4″
For door weight: ≤20 kg
For door width: ≤1,200 mm
Installation: Running gear and tracks for screw fixing
Installation depth, bottom: 270.00 mm
Installation depth, top: 270.00 mm
Installation reference: Highboard/sideboard version: Install running gear bottom running Wall unit version: Install running gear top running Handle height depends on door thickness: 35–41 mm Distance between handle and door edge: Handle height
Material/finish: AluminiumRollers: Plastic
Max. distance from handle to door edge: 41.00 mm
Number of doors: 2.00
Number of doors per system max.: 2
Running gear guided by: Ball bearing
Running position: Top or bottom
Soft closing mechanism: Stopper system with soft closing mechanism integrated in running system
Supplied with: Running gears Runners Stopper Soft closing mechanism Running and guide track
Support flange connection: 3-point guidance
Type of opening: flush
