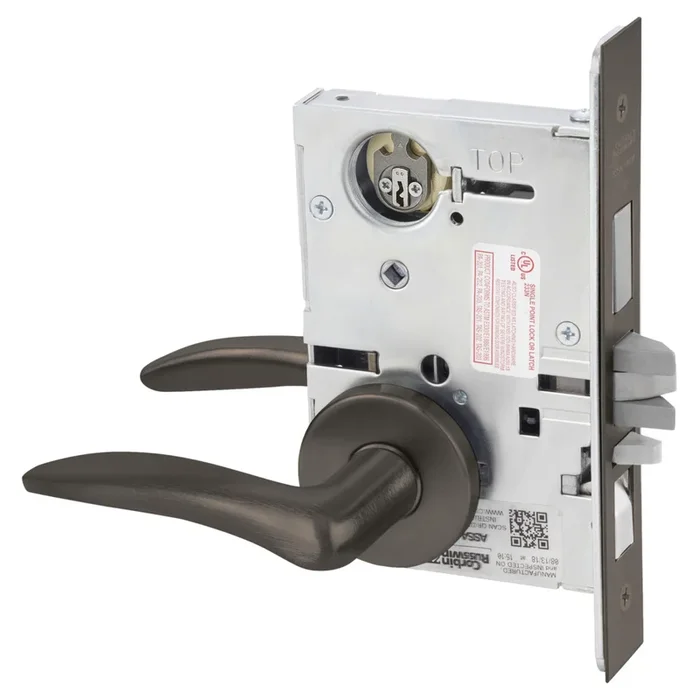

Corbin Russwin ML2067 DSA 613 LC LH Apartment Mortise Lock Guide
Corbin Russwin ML2067 DSA 613 LC LH Apartment Mortise Lock offers a robust solution for securing apartment and dormitory doors with its Grade 1 construction. Engineered for high-traffic environments, this mortise lock is built from heavy-gauge steel and designed to withstand the demands of commercial, institutional, and industrial applications. The patented Quick Reversible latchbolt and 1″ stainless steel deadbolt ensure both ease of use and enhanced security. This model features a DS Lever design with an A Rose, finished in an attractive oil-rubbed bronze that complements various architectural styles. With a standard door thickness of 1-3/4″ and a backset of 2-3/4″, installation is straightforward. The lockcase dimensions are 5-7/8″ x 4″ x 15/16″, ensuring a reliable fit for most doors.Further enhancing its versatility, the ML2000 series includes options for different trim designs and is backed by a 10-year warranty. Compliance with ADA standards and a fire rating of 3 hours adds to its appeal for institutional settings like schools and hospitals. With its durability, aesthetic appeal, and superior functionality, the Corbin Russwin ML2067 is an ideal choice for any high-use application.
Apartment Mortise Lock
Apartment or Dormitory Mortise Lock, DS Lever, A Rose, Oil Rubbed Bronze
The ML2000 Series Grade 1 Mortise Lock is designed to meet the rigors of high trasffic commercial, institutional, industrial and government applications. Constructed of heavy gauge steel, the lockbody features our patented quick reversible latchbolt and a 1″ stainless steel deadbolt. A wide variety of trim designsand functions with a 10 year warranty lend to the ML2000’s versatility and reliability, making it the ideal choice for use in offices, schools, hospitals, hotels and other high use applications.
The ML2000 series is a Grade 1 mortise lock designed to meet the rigors of high-traffic commercial, institutional, industrial and government applications.
The ML2000 Series is constructed of heavy-duty gauge steel and features a lockbody with the patented Quick Reversible latchbolt.A wide variety of trim designs and functions and a 10-year warranty lend to the ML2000’s versatility and reliability, making it the ideal choice for use in offices, schools, hospitals, hotels and other high-use applications.
- Handing: Handed; quick reversible. The lockset can be re-handed without disassembling the lock case.
- Door Thickness: 1-3/4″ (44mm) standard. Optional door thicknesses available.
- Backset: 2-3/4″ (70mm).
- Lockcase: Heavy-gauge steel, 5-7/8″ (149mm) x 4″ (102mm) x 15/16″ (24mm). Optional: non-ferrous lockcase for corrosion resistance.
- Front: Heavy-gauge steel, 8″ (203mm) x 1-1/4″ (32mm) x -3/32″ (2mm). Accommodates flat doors and doors beveled 1/8″ (3mm) in 2″ (51mm). Furnished 1-1/16″ (27mm), optional D138, wide for 1-3/8″ (35mm) doors.
- ArmoredFront: Wrought brass, bronze or stainless steel attached by machine screws to lockcase front. ML2000HS & ML2000VR utilizes security Torx® screws.
- Latchbolt: 2-piece mechanical with anti-friction insert, 5/8″ (16mm) x 1″ (25mm) x 3/4″ (19mm) throw.
- Keys: Two nickel silver standard.
- Federal: Meets FF-H-106C.
- Environmental Product Declaration: (EPD) certified
Attributes
Accessible: Yes
Ada Compliance: Yes
Ansi Function: F20 – Entry/Office
Application: Complete Lock
Baa Qualified: Yes
Base Material: Bronze
Bolt Projection: 3/4″ Latchbolt, 1″ Deadbolt
Country of origin: USA
Door Thickness: 1-3/4″
Finish: 613/US10B
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 67-Apartment or Dormitory
Grade: Grade 1
Handing: LH
Leverknob Design: DS – Dirke Lever
Limited Warranty: 10 Years
Lock Face Size: 8″ x 1-1/4″
Origin: USA
Pack Qty: 1
Roseescutcheon Design: A Rose
Screws: Combination
Series: ML2000 Series Mortise Locks
Std Strike Height: 4-7/8″
Std Strike Number: 236L72018
Std Strike Type: ASA
Std Strike Width: 1-1/4″
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
