Description

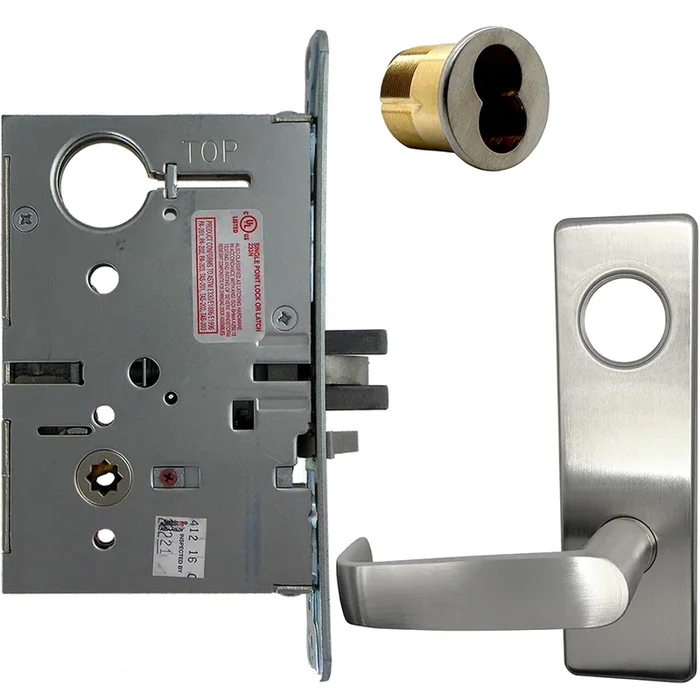

Corbin Russwin ML20906 NSM 626 SAF CL6 Electric Mortise Lock
Utilizing the ML2000 Series Grade 1 Mortise Lock with the patented quick reversible latchbolt, the ML20900 Series provides actuator operated remote locking and unlocking. The self contained integral continuous duty aqctuator allows installation in standard mortise prep with slight modification. The ML20900 ECL is ideal for use where increased security is necessary at all times, such as tenant space, pharmacies, computer rooms and high security areas. THe ML20900 Series features Ecoflex Technology, reducing energy consumption up to 96% as certified by GreenCircle. It is field configurable to fail safe or fail secure and operates off 12-24VDC.
Attributes
Accessible: Yes
Ada Compliance: Yes
Alternate Codes: ML20906 NSM 626 SAF CL6, ML20906NSM626SAFCL6
Amp Draw: 500mA Peak, 15mA Holding
Application: Complete Lock
Baa Qualified: Yes
Base Material: Brass or Bronze
Bolt Projection: 3/4″ Latchbolt
Bolt Protection: 3/4″ Latchbolt
Category: Commercial Electric Locks, Deadbolts, Electric Locks, Lock Sets, Mortise Electric, Mortise Electric Locks, Mortise Locks, Standalone/Pushbutton Locks
Country of Origin: Usa
Country of origin: USA
Cylinder Type: Corbin Russwin 6-Pin LFIC Prep Less Core
Door Application: Mortise Locks
Door Thickness: 1-3/4″
Fail Safe/ Fail Secure: FS – Fail Safe
Finish: 626/US26D
Finish Code: 626
Finish Color: Brushed Chrome, Satin Chrome
Finish : Satin Chrome
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 06xSAF-Fail Safe
Grade: Grade 1
Hand: Field Reversible
Handing: Field Reversible
Lever Design: Newport
Lever Knob Design: NS – Newport
Leverknob Design: NS – Newport
Limited Warranty: 2 Years
Lock Face Size: 8″ X 1-1/4″
Material: Cast
Operating Voltage: 12VDC/24VDC
Origin: USA
Pack Qty: 1
Power: Hard Wired
Rose Escutcheon Design: M – Escutcheon
Rose/ Escutcheon: M Escutcheon
Roseescutcheon Design: M – Escutcheon
Screws: Combination
Series: ML20900
Std Strike Height: 4-7/8″
Std Strike Number: 236L72018
Std Strike Type: ASA
Std Strike Width: 1-1/4″
Strike Height: 4-7/8″
Strike Number: 236L72018
Strike Type: ASA
Strike Width: 1-1/4″
Subtype: Electric Mortise Lock
Type: Electric Locks
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
