Description

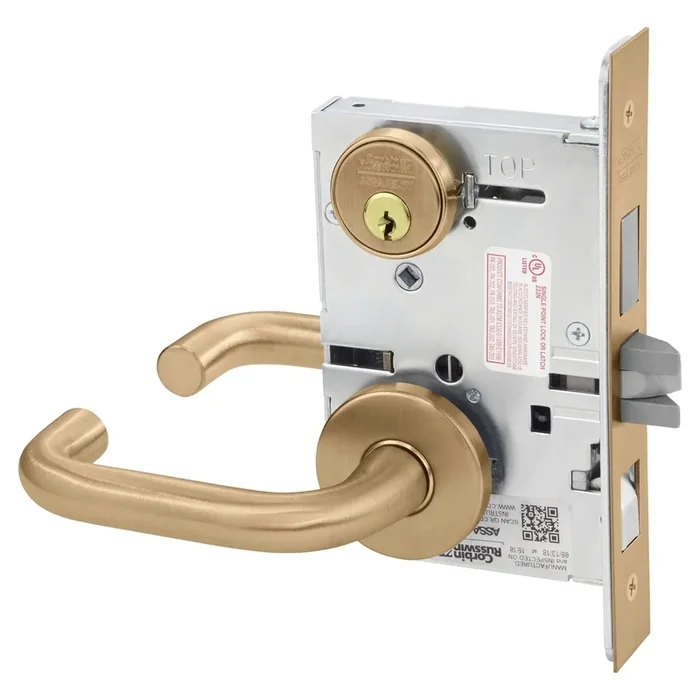

Corbin Russwin ML2048 LWA 612 Mortise Lock for Entrance
Corbin Russwin ML2048 LWA 612 Entrance Mortise Lock combines robust construction with versatile functionality, making it an ideal choice for high-traffic environments such as offices, schools, hospitals, and hotels. This Grade 1 mortise lock is crafted from heavy-gauge steel, ensuring durability and reliability in demanding applications. With its patented quick reversible latchbolt and a stainless steel deadbolt with a 1″ throw, security is paramount. Designed for easy installation, the ML2048 features a standard door thickness of 1-3/4″, with options for non-ferrous lockcases for added corrosion resistance. Its heavy-duty lockcase measures 5-7/8″ x 4″ x 15/16″, ensuring a secure fit. The Lustra Lever design complements the lock’s A Rose trim, offering both style and functionality.Additional highlights include a field-reversible handing, making it adaptable to various door configurations, and a 10-year limited warranty that speaks to its long-lasting performance. The ML2048 is also compliant with ADA regulations and boasts a fire rating of up to 3 hours, making it suitable for diverse building codes and safety standards. With two nickel silver keys included, this lock is ready for immediate use, ensuring peace of mind for any property owner.
Entrance Mortise Lock
Entrance or Apartment Mortise Lock, LW Lever, A Rose, Satin Bronze
The ML2000 Series Grade 1 Mortise Lock is designed to meet the rigors of high trasffic commercial, institutional, industrial and government applications. Constructed of heavy gauge steel, the lockbody features our patented quick reversible latchbolt and a 1″ stainless steel deadbolt. A wide variety of trim designsand functions with a 10 year warranty lend to the ML2000’s versatility and reliability, making it the ideal choice for use in offices, schools, hospitals, hotels and other high use applications.
The ML2000 series is a Grade 1 mortise lock designed to meet the rigors of high-traffic commercial, institutional, industrial and government applications.
The ML2000 Series is constructed of heavy-duty gauge steel and features a lockbody with the patented Quick Reversible latchbolt.A wide variety of trim designs and functions and a 10-year warranty lend to the ML2000’s versatility and reliability, making it the ideal choice for use in offices, schools, hospitals, hotels and other high-use applications.
- Handing: Handed; quick reversible. The lockset can be re-handed without disassembling the lock case.
- Door Thickness: 1-3/4″ (44mm) standard. Optional door thicknesses available.
- Backset: 2-3/4″ (70mm).
- Lockcase: Heavy-gauge steel, 5-7/8″ (149mm) x 4″ (102mm) x 15/16″ (24mm). Optional: non-ferrous lockcase for corrosion resistance.
- Front: Heavy-gauge steel, 8″ (203mm) x 1-1/4″ (32mm) x -3/32″ (2mm). Accommodates flat doors and doors beveled 1/8″ (3mm) in 2″ (51mm). Furnished 1-1/16″ (27mm), optional D138, wide for 1-3/8″ (35mm) doors.
- ArmoredFront: Wrought brass, bronze or stainless steel attached by machine screws to lockcase front. ML2000HS & ML2000VR utilizes security Torx® screws.
- Latchbolt: 2-piece mechanical with anti-friction insert, 5/8″ (16mm) x 1″ (25mm) x 3/4″ (19mm) throw.
- Keys: Two nickel silver standard.
- Federal: Meets FF-H-106C.
- Environmental Product Declaration: (EPD) certified
Attributes
Accessible: Yes
Ada Compliance: Yes
Ansi Function: F08 – Front Door
Application: Complete Lock
Baa Qualified: Yes
Base Material: Bronze
Bolt Projection: 3/4″ Latchbolt, 1″ Deadbolt
Country of origin: USA
Cylinder Type: Conventional Cylinder
Door Thickness: 1-3/4″
Finish: 612/US10
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 48-Entrance or Apartment
Grade: Grade 1
Handing: Field Reversible
Keying: 0 Bitted
Keys: Blank
Leverknob Design: LW – Lustra Lever
Limited Warranty: 10 Years
Lock Face Size: 8″ x 1-1/4″
Of Keys: 2
Origin: USA
Pack Qty: 1
Pins: 6
Roseescutcheon Design: A Rose
Screws: Combination
Series: ML2000 Series Mortise Locks
Std Keyway: L4
Std Strike Height: 4-7/8″
Std Strike Number: 236L72018
Std Strike Type: ASA
Std Strike Width: 1-1/4″
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
Resources
- Assa Abloy Hands-Free and Touchless Solutions Flyer
- Corbin Strikes/Kits Brochure
- ML2000 Inspire Roseless Trim (J) Installation Instructions
- ML2000 Series Mortise Lock – Environmental Product Declaration (EPD)
- ML2000 Series Mortise Locks Cut Sheet
- ML2000VR Vandal Resistant Trim Installation Instructions
- Mortise Lock Occupancy Indicators (With Cylinder) Installation Instructions
- Mortise Lock Occupancy Indicators (Without Cylinder) Installation Instructions
- Video: Changing the Hand on the ML20608
- Video: HPSK Push/Pull Trim Installation
- Video: ML2000 Series Mortise Lock with Sectional Rose Trim Installation
