Description

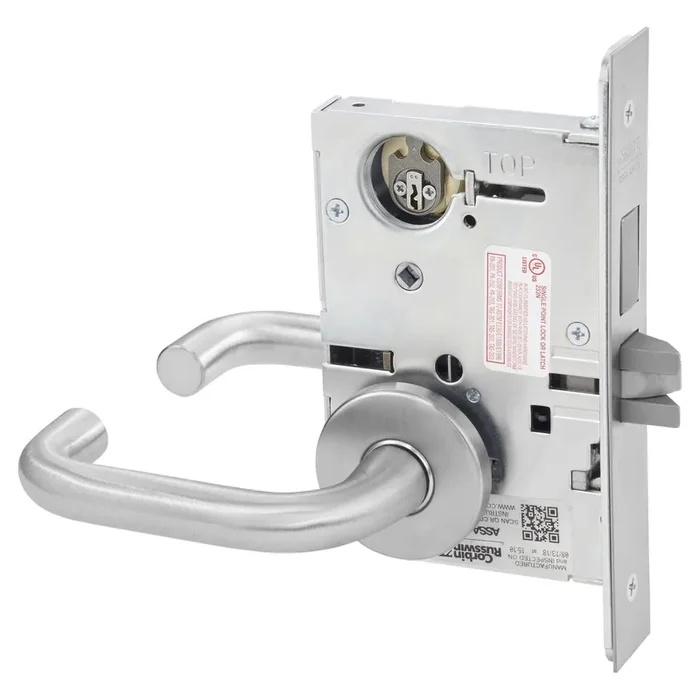

Corbin Russwin ML2024 LSA 626 LC Mortise Lock for Entrance
Corbin Russwin ML2024 LSA 626 LC Entrance Mortise Lock is a high-performance locking solution designed for high-traffic environments such as offices, schools, hospitals, and hotels. This Grade 1 mortise lock is constructed from heavy-gauge steel, ensuring durability and reliability in demanding applications. Featuring a patented quick reversible latchbolt and a robust 1″ stainless steel deadbolt, the ML2024 provides enhanced security while allowing for easy re-handing without the need for disassembly. The lock accommodates standard door thickness of 1-3/4″ and offers an optional non-ferrous lockcase for added corrosion resistance. With a backset of 2-3/4″ and versatile trim designs, this lock fits various door styles and configurations. The Lustra Lever design adds a touch of elegance, while the armored front provides additional security. Equipped with two nickel silver keys, the ML2024 meets the FF-H-106C federal standard and is EPD certified, making it an environmentally responsible choice. Its 10-year warranty ensures long-term satisfaction, while the fire rating of up to 3 hours enhances its suitability for safety-conscious installations. Choose the Corbin Russwin ML2024 LSA for unparalleled security and versatility in your building projects.
Entrance Mortise Lock
Entrance or Storeroom Mortise Lock, LS Lever, A Rose, Satin Chrome
The ML2000 Series Grade 1 Mortise Lock is designed to meet the rigors of high trasffic commercial, institutional, industrial and government applications. Constructed of heavy gauge steel, the lockbody features our patented quick reversible latchbolt and a 1″ stainless steel deadbolt. A wide variety of trim designsand functions with a 10 year warranty lend to the ML2000’s versatility and reliability, making it the ideal choice for use in offices, schools, hospitals, hotels and other high use applications.
The ML2000 series is a Grade 1 mortise lock designed to meet the rigors of high-traffic commercial, institutional, industrial and government applications.
The ML2000 Series is constructed of heavy-duty gauge steel and features a lockbody with the patented Quick Reversible latchbolt.A wide variety of trim designs and functions and a 10-year warranty lend to the ML2000’s versatility and reliability, making it the ideal choice for use in offices, schools, hospitals, hotels and other high-use applications.
- Handing: Handed; quick reversible. The lockset can be re-handed without disassembling the lock case.
- Door Thickness: 1-3/4″ (44mm) standard. Optional door thicknesses available.
- Backset: 2-3/4″ (70mm).
- Lockcase: Heavy-gauge steel, 5-7/8″ (149mm) x 4″ (102mm) x 15/16″ (24mm). Optional: non-ferrous lockcase for corrosion resistance.
- Front: Heavy-gauge steel, 8″ (203mm) x 1-1/4″ (32mm) x -3/32″ (2mm). Accommodates flat doors and doors beveled 1/8″ (3mm) in 2″ (51mm). Furnished 1-1/16″ (27mm), optional D138, wide for 1-3/8″ (35mm) doors.
- ArmoredFront: Wrought brass, bronze or stainless steel attached by machine screws to lockcase front. ML2000HS & ML2000VR utilizes security Torx® screws.
- Latchbolt: 2-piece mechanical with anti-friction insert, 5/8″ (16mm) x 1″ (25mm) x 3/4″ (19mm) throw.
- Keys: Two nickel silver standard.
- Federal: Meets FF-H-106C.
- Environmental Product Declaration: (EPD) certified
Attributes
Accessible: Yes
Ada Compliance: Yes
Ansi Function: F21 – Entry Office
Application: Complete Lock
Baa Qualified: Yes
Base Material: Brass or Bronze
Bolt Projection: 3/4″ Latchbolt, 1″ Deadbolt
Country of origin: USA
Door Thickness: 1-3/4″
Finish: 626/US26D
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 24-Entrance or Storeroom
Grade: Grade 1
Handing: Field Reversible
Leverknob Design: LS – Lustra Lever
Limited Warranty: 10 Years
Lock Face Size: 8″ x 1-1/4″
Origin: USA
Pack Qty: 1
Roseescutcheon Design: A Rose
Screws: Combination
Series: ML2000 Series Mortise Locks
Std Strike Height: 4-7/8″
Std Strike Number: 236L72018
Std Strike Type: ASA
Std Strike Width: 1-1/4″
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
Resources
- Assa Abloy Hands-Free and Touchless Solutions Flyer
- Corbin Strikes/Kits Brochure
- ML2000 Inspire Roseless Trim (J) Installation Instructions
- ML2000 Series Mortise Lock – Environmental Product Declaration (EPD)
- ML2000 Series Mortise Locks Cut Sheet
- ML2000VR Vandal Resistant Trim Installation Instructions
- Mortise Lock Occupancy Indicators (With Cylinder) Installation Instructions
- Mortise Lock Occupancy Indicators (Without Cylinder) Installation Instructions
- Video: Changing the Hand on the ML20608
- Video: HPSK Push/Pull Trim Installation
- Video: ML2000 Series Mortise Lock with Sectional Rose Trim Installation
