Description

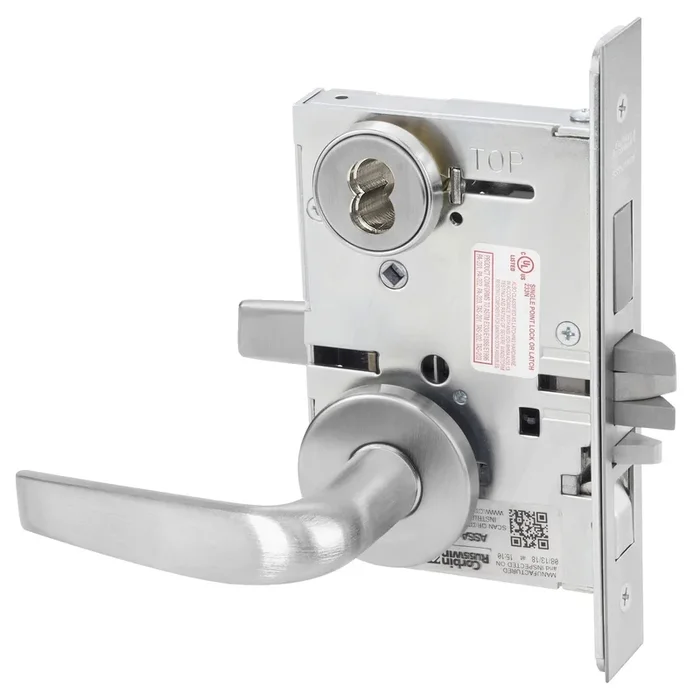

Corbin Russwin ML2067 CSA 630 CL6 Mortise Lock
The ML2000 Series Grade 1 Mortise Lock is designed to meet the rigors of high trasffic commercial, institutional, industrial and government applications. Constructed of heavy gauge steel, the lockbody features our patented quick reversible latchbolt and a 1″ stainless steel deadbolt. A wide variety of trim designsand functions with a 10 year warranty lend to the ML2000’s versatility and reliability, making it the ideal choice for use in offices, schools, hospitals, hotels and other high use applications.
Attributes
Accessible: Yes
Ada Compliance: Yes
Alternate Codes: ML2067 CSA 630 CL6, ML2067CSA630CL6
Ansi Function: F20 – Entry/Office
Application: Complete Lock
Baa Qualified: Yes
Base Material: Stainless Steel
Bolt Projection: 3/4″ Latchbolt, 1″ Deadbolt
Bolt Protection: 3/4″ Latchbolt, 1″ Deadbolt
Category: Lock Sets, Mortise Locks, Mortise Lock Sets
Country of Origin: Usa
Country of origin: USA
Cylinder Type: Corbin Russwin 6-Pin LFIC Less Core
Door Application: Mortise Locks
Door Thickness: 1-3/4″
Finish: 630/US32D
Finish Code: 630
Finish Color: Satin Stainless Steel
Finish : Satin Stainless Steel
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 67-Apartment or Dormitory
Grade: Grade 1
Hand: Field Reversible
Handing: Field Reversible
Lever Design: Citation
Lever Knob Design: CS – Citation
Leverknob Design: CS – Citation Lever
Limited Warranty: 10 Years
Lock Face Size: 8″ x 1-1/4″
Material: Cast
Origin: USA
Pack Qty: 1
Rose Escutcheon Design: A – Rose
Rose/ Escutcheon: A Rose
Roseescutcheon Design: A Rose
Screws: Combination
Series: ML2000
Std Strike Height: 4-7/8″
Std Strike Number: 236L72018
Std Strike Type: ASA
Std Strike Width: 1-1/4″
Strike Height: 4-7/8″
Strike Number: 236L72018
Strike Type: ASA
Strike Width: 1-1/4″
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
Resources
- 2020 Corbin Russwin Price Book
- Assa Abloy Hands-Free and Touchless Solutions Flyer
- Corbin Strikes/Kits Brochure
- HPSK Push/Pull Trim Installation Procedures
- ML2000 Inspire Roseless Trim (J) Installation Instructions
- ML2000 Inspire Roseless Trim (J) Installation Instructions
- ML2000 Series Mortise Lock – Environmental Product Declaration (EPD)
- ML2000 Series Mortise Lock – Environmental Product Declaration (EPD)
- ML2000 Series Mortise Locks Cut Sheet
- ML2000 and ML20900 Series
- ML2000VR Vandal Resistant Trim
- ML2000VR Vandal Resistant Trim Installation Instructions
- Mortise Lock Occupancy Indicators (With Cylinder)
- Mortise Lock Occupancy Indicators (With Cylinder) Installation Instructions
- Mortise Lock Occupancy Indicators (Without Cylinder)
- Mortise Lock Occupancy Indicators (Without Cylinder) Installation Instructions
- Video: Changing the Hand on the ML20608
- Video: HPSK Push/Pull Trim Installation
- Video: ML2000 Series Mortise Lock with Sectional Rose Trim Installation
