Description

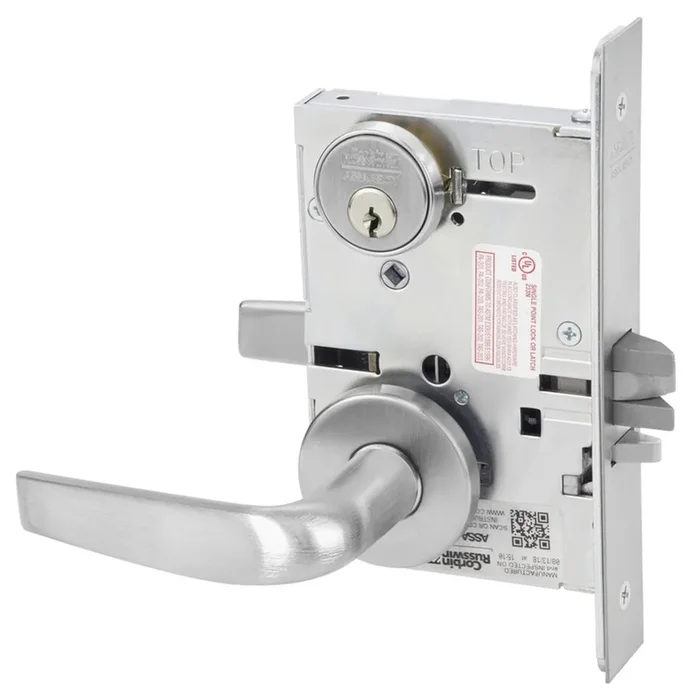

Corbin Russwin ML2052 CSA 626 L4 Classroom Intruder Mortise Lock, Citation Lever, Satin Chrome, Field Reversible
Corbin Russwin ML2052 CSA 626 L4 KIT is a Classroom Intruder Mortise Lock designed to provide robust security in high-traffic environments. This ANSI/BHMA Grade 1 lock features the Citation lever with an A Rose trim and comes equipped with two standard 1-1/8 mortise cylinders and an A02 Yale style standard cam. The L4 keyway ensures compatibility with various key systems, while its field-reversible handing allows for easy installation and adaptability. Constructed from heavy-gauge steel, the ML2052 is built to withstand intrusion attempts and heavy usage. Its innovative direct drive performance guarantees consistent torque during operation, and the crisp lever return eliminates sagging. With over 60 mechanical and electrified function options, including vandal-resistant and behavioral health choices, this lock is versatile enough for numerous applications. The satin chrome finish enhances durability and aesthetic appeal. Additional features include eco-friendly EcoFlex® technology, which can create up to 89% energy savings, and a ten-year limited warranty, underscoring its long-term reliability. The lock is designed to integrate seamlessly with existing access control systems and key platforms, providing a comprehensive security solution for any facility.
KIT – Classroom Intruder Mortise Lock, Citation Lever with A Rose Trim, 2 Each Standard 1-1/8 Mortise Cylinders, A02 Yale Style Standard Cam, L4 Keyway 0-Bit, Handing is Field Reversible, ANSI Strike SS118, 626/US26D Satin Chrome
Notice: The info below is not item specific.
The ML2000 Series is an ANSI/BHMA Grade 1 mortise lock designed to meet the rigors of high-traffic, abusive environments. Constructed of heavy-gauge steel with unique, patented features and a full range of functions including status indicators and trim, the versatility and reliability of this lock complement any application. Corbin Russwin’s status indicator options offer a unique and highly visible window design and provides clarity on the locked/unlocked status of a door. Available for use with a wide range of trim options and with a variety of functions, the mortise lock status indicators are versatile for any application.
Features:
- Direct drive performance for consistent torque and force during lever rotation
- Lever return is crisp and firm – eliminating lever sag
- Available in 63 mechanical and electrified functions, including 2 vandal resistant and 4 behavioral health options, 61 standard and Muséo Line decorative lever designs and 16 finishes
- Integrates with new or existing Corbin Russwin key systems, including patented/high security Access 3® and Pyramid
- Integrates with access control platforms
- Utilizes EcoFlex®️ technology on all electromechanical functions, creating up to 89% energy savings
- Occupancy indicators available
- Ten-year warranty
Benefits:
- Innovative Design: Optimized torsion spring design and fewer moving parts give the lock extremely smooth and consistent operations
- Flexible: Field reversible latchbolt makes it easy to re-hand without disassembling the lock case
- Safe and Secure: Withstands intrusion attempts and abuse, featuring specialized security trim and components
- Lower Total Cost of Ownership: Far exceeds ANSI/BHMA Grade 1 requirements ensuring durability and longevity
- Sustainable: Environmental product declaration (EPD) in accordance with ISO14025
Specifications:
- ANSI/BHMA Code: A156.13
- Backset Depth (Standard): 2 3/4″
- Cylinder Format: Conventional, Large Format, Small Format
- Cylinder Pins: 6 pin, 7 pin
- Door Thickness (Standard): 1 3/4″
- Door Type: Bullet-Resistant Doors, Wood, Hollow Metal
- Handing: Field Reversible
- Latchbolt Throw: 3/4″
- Maximum Backset: 2 3/4″
- Maximum Door Thickness: 4″
- Minimum Backset: 2 3/8″
- Minimum Door Thickness: 1 3/8″
- Number of Keys: 2
- Strike Type (Standard): ANSI Straight Lip
- UL Listed: Yes
- Warranty: 10-year limited warranty
Finishes:
- 605 – Bright Brass
- 606 – Satin Brass
- 611 – Bright Bronze
- 612 – Satin Bronze
- 613 – Dark Oxidized Satin Bronze, Oil Rubbed
- 613E – Dark Oxidized Satin Bronze, Equivalent
- 613L – Dark oxidized satin bronze, clear coated
- 618 – Bright Nickel Plated
- 619 – Satin Nickel Plated
- 619C – Satin nickel plated with MicroShield
- 625 – Bright Chromium Plated
- 626 – Satin Chromium Plated
- 626C – Satin Chromium Plated with MicroShield
- 629 – Bright Stainless Steel
- 630 – Satin Stainless Steel
- 630C – Satin stainless steel with MicroShield
- 722 – Black Oxidized Bronze, Oil Rubbed
- BSP – Black suede powder coated/sprayed
- WSP – White suede powder coated/sprayed
Attributes
Alternate Codes: ML2052 CSA 626 L4, ML2052CSA626L4
Category: Lock Sets, Mortise Locks, Mortise Lock Sets
Door Application: Mortise Locks
Finish Code: 626
Finish Color: Brushed Chrome, Satin Chrome
Function: Classroom Intruder
Keying: 0-Bitted
Keyway: Corbin L4
Lever Design: Citation
Material: Cast
Rose/ Escutcheon: A Rose
Series: ML2000
