Description

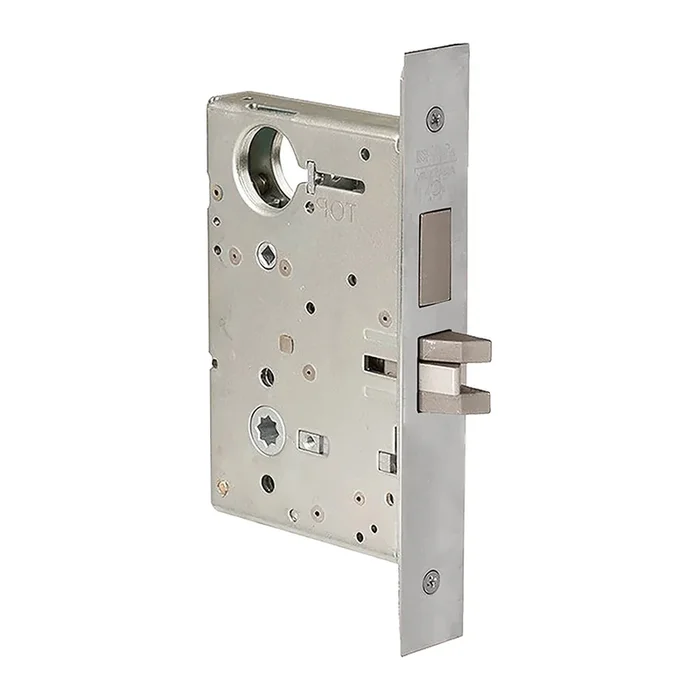

Corbin Russwin ML2020KK626 Mortise Lock
Corbin ML2020KK626 Privacy Mortise Knob by Knob Lock Body, Strike, Front Plate, and Screws Satin Chrome Finish
Attributes
Ansi Function: F02 – Privacy
Application: Lockbody Only
Baa Qualified: Yes
Backset: 2-3/4″
Base Material: Brass or Bronze
Bolt Projection: 3/4″ Latchbolt, 1″ Deadbolt
Bolt Protection: 3/4″ Latchbolt, 1″ Deadbolt
Country of Origin: Usa
Country of origin: USA
Door Thickness: 1-3/4″
Finish: Satin Chrome
Finish : Satin Chrome
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 20-Privacy Bedroom or Bathroom
Grade: Grade 1
Hand: Field Reversible
Handing: Field Reversible
Limited Warranty: 10 Years
Lock Face Size: 8″ x 1-1/4″
Origin: USA
Pack Qty: 1
Screws: Combination
Series: ML2000 Series
Std Strike Height: 4-7/8″
Std Strike Number: 236L72018
Std Strike Type: ASA
Std Strike Width: 1-1/4″
Strike: ANSI Straight Lip Strike
Strike Height: 4-7/8″
Strike Number: 236L72018
Strike Type: ASA
Strike Width: 1-1/4″
Subtype: Mortise
Type: Mechanical Commercial Locksets
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
