Richelieu TSBS1830N90 CS Barn Door Track Set Instructions
Richelieu TSBS1830N90 CS BARNDOOR Track Sets provide a robust and stylish solution for your barn door installations. Designed with versatility in mind, these track sets feature adjustable fixing brackets that accommodate door projections from 1 5/8 inches (40 mm) to 3 1/8 inches (80 mm), making them suitable for various project needs. Available in lengths ranging from 72 inches (1.82 m) to 120 inches (3.04 m), these tracks cater to both narrow and wide door designs, supporting a maximum door thickness of 1 3/4 inches (45 mm). Each track has an impressive weight capacity of 650 lb (300 kg), ensuring reliable performance for even the heaviest of doors. The sleek black finish adds a modern aesthetic, while the machined features allow for concealed soft-close mechanisms, enhancing the overall user experience.Ideal for side-mounted installations, these tracks work seamlessly with wooden doors ranging in width from 24 to 38 inches and can accommodate door heights up to 120 inches. With a height clearance of 6 13/16 inches*, the Richelieu TSBS1830N90 ensures smooth and efficient sliding motion, delivering both functionality and style to your space.

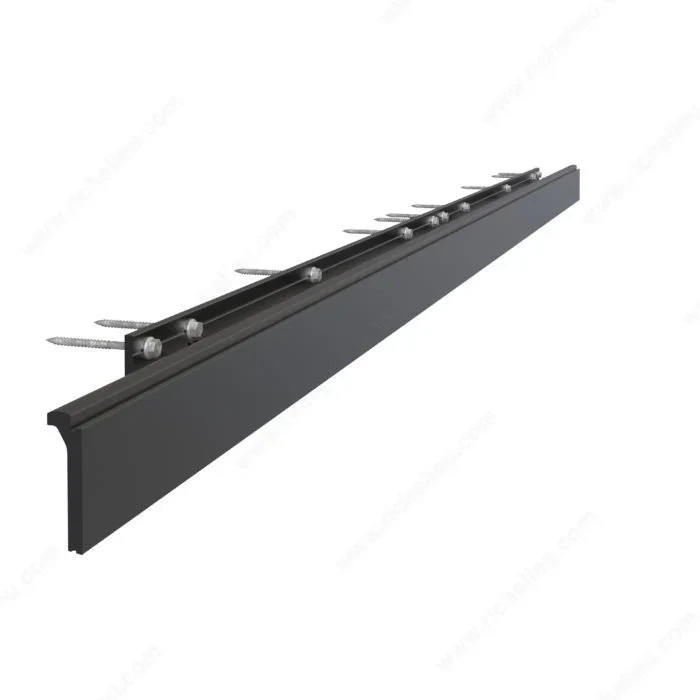

CS BARNDOOR Track Sets
The CS BARNDOOR Track Sets with adjustable fixing bracket for different lengths from 72 in (1.82 m) to 120 in (3.04 m) each. Two types to choose from, narrow or wide, for different door projections from 1 5/8 in (40 mm) to 3 1/8 in (80 mm) for a maximum door thickness of 1 3/4 in (45 mm).
Features:
– Maximum weight capacity of 650 lb (300 kg) for each track
– Black finish
– Adjustable fixing bracket for different door projections
– Narrow type track for door projections from 1 5/8 in (40 mm) to 2 3/8 in (61 mm)
– Wide type track for door projections from 2 3/8 in (62 mm) to 3 1/8 in (80 mm)
– Available in different lengths: 72 in (1.82 m), 84 in (2.13 m), 96 in (2.43 m), and 120 in (3.04 mm)
– Machined to accept concealed soft-close mechanisms at the back
Attributes
Ship via: No UPS – Common Carrier Only
Application: Barn Door
Detailed Door Movement: Barn Door
Door Height: Max. 120 in
Door Installation: Side Mount
Door Material: Wood
Door Movement: Straight Sliding
Door Projection: 1 5/8 to 2 3/8 in
Door Thickness: 1 1/4 to 1 3/4 in
Door Width: 24 to 38 in
Finish: Black (90)
Height Clearance: 173 mm
Length – Overall Dimensions: 72 in
Load Capacity: 650 lb
Overall Length: 72 in
Product #: TSBS1830N90
Product Type: Track
Product number: TSBS1830N90
Product type: Track
Product №: TSBS1830N90
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84″ or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Track Length: 72 in
Track Mounting: Wall Mount
Track Type: Flat Bar
Track type: Flat Bar
Unit: Length
Weight Capacity per Panel: 650 lb
Resources
- Instructions
- Line art
