Richelieu WEBKIT1240128 CS Wall Mount Track System Instructions
Richelieu WEBKIT1240128 CS Wall Mount Track System is designed for seamless operation of standard sliding wood doors, accommodating weights up to 500 lb (227 kg). This versatile system features hardware sets without soft-close mechanisms for doors up to 200 lb (90 kg) and offers options with SofStop soft-close mechanisms for enhanced convenience, available in both single and twin actions for doors weighing up to 176 lb (80 kg) and single action for doors up to 264 lb (120 kg). The system includes a CarriSnap mounting suspension plate, allowing for tool-free mounting and releasing of the upper trolley, ensuring easy installation and maintenance. It is suitable for door thicknesses ranging from 1 3/8 in (35 mm) to 1 3/4 in (45 mm), making it adaptable for various project requirements. Available finishes in silver (clear) and bronze anodized aluminum provide aesthetic flexibility. With recessed floor guide channels and guide options for extra-wide doors, the WEBKIT1240128 ensures stability and smooth operation. The large wheel trolleys with precision ground bearings guarantee effortless movement, making this wall mount track system ideal for residential, commercial, and institutional applications. Experience the blend of functionality and design with the Richelieu CS Wall Mount Track System.

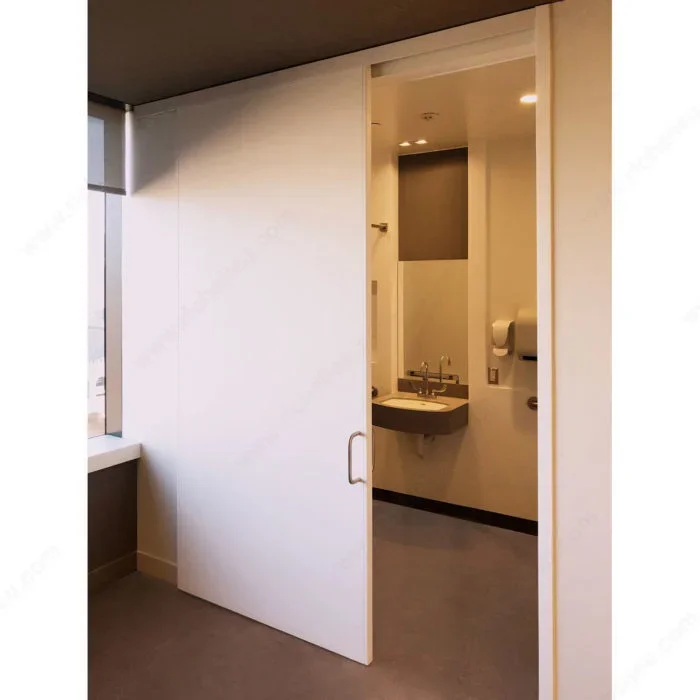

CS Wall Mount Track System
The Cavity Sliders CS Wall Mount Track Systems are for standard sliding wood doors weighing up to 500 lb (227 kg) each.
Features:
– Hardware sets without soft-close mechanism for doors weighing up to 200 lb (90 kg) and 500 lb (227 kg)
– Hardware sets with SofStop soft-close mechanisms come in single or twin action for doors weighing up to 176 lb (80 kg), and single action for doors weighing up to 264 lb (120 kg)
– CarriSnap mounting suspension plate at the top of the door for mounting and releasing the upper trolley without tools
– Track and fascia kits for doors 1 3/8 in (35 mm) to 1 3/4 in (45 mm) thick
– Available in sliver (clear) and bronze anodized finishes
– Recessed floor guide channels and guide are available for extra wide doors
– Large wheel trolleys with precision ground bearings for smooth running
Ideal for residential, commercial, and institutional projects for a wide variety of applications.
Attributes
Ship via: No UPS – Common Carrier Only
Application: Standard Access Door
Brand: Cavity Sliders
Detailed Door Movement: Single Sliding
Door Height: 120 in
Door Installation: Top Hung
Door Material: Wood
Door Movement: Straight Sliding
Door Thickness: 1 3/8 to 1 3/4 in
Door Width: 30 to 38 in
Finish: Bronze Anodized Aluminum
Function: Sliding Door
Length – Overall Dimensions: 72 in
Load Capacity: 176 lb
Manufacturing Material: Aluminum
Number of Doors: 1
Overall Length: 72 in
Product #: WEBKIT1240128
Product number: WEBKIT1240128
Product №: WEBKIT1240128
Roller Position: Upper
Roller Type: Ball Bearing
Running Track Fixing: Surface Mount
Screw/ Nail Included: No
Set Screws Included: No
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84″ or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Closing: Yes
Track Length: 72 in
Track Material: Anodized Aluminum
Track Mounting: Wall Mount
Track Type: Box Track
Track type: Box Track
Weight Capacity per Door: 176 lb
