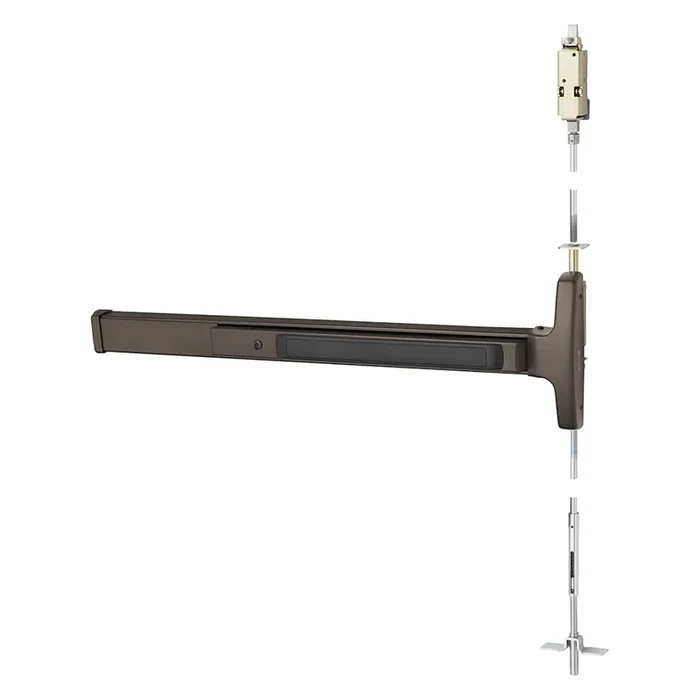

Sargent 43-AD8415F ETL LHR 10BE CVR Exit Device with Passage Instructions
Sargent 43-AD8415F ETL LHR 10BE CVR Exit Device, Passage combines security and functionality in a sleek design tailored for narrow stile applications. This Grade 1 concealed vertical rod exit device features a robust 36-inch length, ensuring compatibility with 96-inch door heights. The device operates with a passage function, utilizing a stylish L lever with escutcheon and a flush end cap for a polished look. Designed for commercial environments, this exit device meets ANSI/BHMA Grade 1 standards, providing unparalleled durability and strength. The modular construction means fewer moving parts, resulting in a maintenance-free experience, making it ideal for high-traffic areas. Hex key dogging is standard, offering added convenience for users.With a dark oxidized bronze finish (613E/US10BE), the Sargent exit device is not only functional but also complements various architectural styles. It accommodates door thicknesses of 1-3/4″ to 2-1/4″ and widths ranging from 33″ to 36″. Furthermore, it is UL Fire and Panic listed, enhancing its reliability as a safety solution.For building professionals seeking a trusted exit device, the Sargent 43-AD8415F is an excellent choice that prioritizes both security and aesthetic appeal.
CVR Exit Device, Passage
Grade 1 Concealed Vertical Rod Exit Device, Narrow Stile Pushpad, 36″ Device, 96″ Door Height, Passage Function, L Lever with Escutcheon, Flush End Cap, Hex Key Dogging, Dark Oxidized Bronze Finish, Left Hand Reverse
The Sargent 80 Series exit devices are ideal for environments that require strong and durable security solutions that will last the life of the building. Available in rim, mortise, surface vertical and concealed vertical rod configurations, these exit devices easily exceed ANSI/BHMA Grade 1 requirements for cycle and strength. With modular construction and few moving parts, the 80 Series devices are maintenance-free and provide unsurpassed security for any facility. Plus, options are available for unique applications including delayed egress, alarmed exit and electric latch retraction making these exit devices the go-to product in your building.
The most reliable exit device on the market.
The 8400 Series is designed for narrow stile applications and is UL Fire and Panic lsited. This series is available in several finishes.
- Door Types Hollow metal, 1-3/4″ (44 mm) minimum thickness. For doors over 1-3/4″ to 2-1/4″ thick, specify thickness and order as 31- 1-3/4″ (44mm) minimum stile width required. Stile must be hollow with inside dimension of at least 1-3/8″ (35mm) square
- Rail sizes as Rails are available in 4 sizes, use door width to determine size needed. determined by Rails will be factory cut to size, if door width is supplied door width • E Rail for 24″ to 32″ door widths • F Rail for 33″ to 36″ door widths • J Rail for 37″ to 42″ door widths • G Rail for 43″ to 48″ door widths
- Strike 650 Top Strike & 606 Bottom Strike (Panic and Fire Rated)
- Dogging Feature Hex key dogging standard on non fired rated devices; specify 16- for cylinder dogging (#41 cylinder supplied)
- Electric Options AL- Alarm BT- Beacon™ PL- SARGuide™ Photoluminescent Coated TL- SARGuide™ Illuminated Touchpad 53- LX Latchbolt Monitor 54- Outside Lever Monitoring 55- Request-to-Exit Signal – Rail Monitoring 56- Remote Latch Retraction 57- Delay Egress & Electromagnets 58- Electric Dogging 59- Electroguard – Self Contained Delayed Egress
- Mounting Fasteners Supplied standard with machine screws
- Top Bolt Stainless steel
- Device Centerline from 41″ (1041mm) for Standard Applications Finished Floor 38″ (965mm) for elementary schools and to meet local accessibility standards when a 100 Series Auxiliary Control is used
- Door/Opening Height Must be specified – 120″ (3048mm) Max Door Opening
- Center Case Dimensions 8-3/8″ (213mm) x 2-5/8″ (67mm)
- Projection Pushbar Neutral – 3″ (76 mm) Pushbar Depressed – 2-1/8″ (54mm)
Attributes
Accessible: Yes
Ada Compliance: Yes
Ansi: ANSI/BHMA A156.3
Baa Qualified: Yes
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: Non-Keyed
Device Length: 36″
Device Type: Concealed Vertical Rod
Dogging Options: Hex Key Dogging
Door Height: 96″
Door Material: Aluminum
Door Thickness: 1-3/4″ to 2-1/4″
Door Width: 33″ to 36″
Finish: 613E/US10BE
Finish Family: Dark Bronze
Fire Rated: No
Fire Rating: No
Grade: Grade 1
Handing: Left Hand Reverse
Includes Cylinders: No
Includes Trim: Yes
Installation: Commercial
Limited Warranty: 5 Years
Mechanical Function: Passage
Mechanical Options: Flush End Cap
Minimum Stile Size: 1-3/4″
Origin: USA
Pack Height: 6″
Pack Length: 38″
Pack Qty: 1.0
Pack Volume: 1710 in³
Pack Width: 7.5″
Physical Appearance: Narrow Stile Pushpad
Reversible: No
Series: 8400 Series Narrow Concealed Vertical Rod Exit Devices
Ship Weight: 18 lbs.
Strike Bottom: 640.0
Subtype: Concealed Vertical Rod Exit Devices
Top Strike: 640.0
Trim Design: Lever with Escutcheon
Trim Part No: 715-4 ETL LHRB 10BE
Trim Type: Lever
Type: Exit Devices
Ul Listing: UL10C & UL305
Unit of Measure: Each
