Description

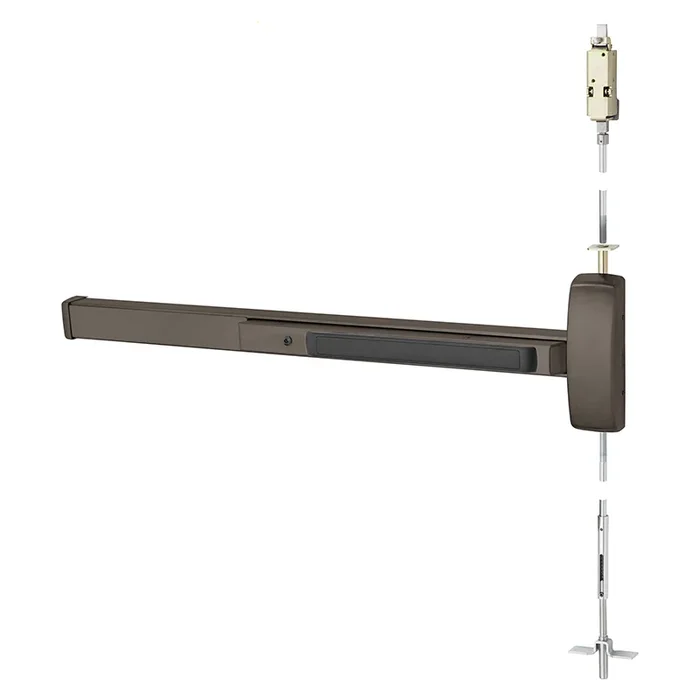

Sargent AD8606F RHR 10B CVR Storeroom Exit Device
Sargent AD8606F RHR 10B CVR Exit Device, Storeroom is a top-tier solution for secure exit functionality in commercial settings. This Grade 1 concealed vertical rod exit bar features a wide stile pushpad, designed specifically for 36-inch devices and 96-inch door heights. With its storeroom function and hex key dogging, it ensures controlled access while maintaining safety standards. The device is finished in dark oxidized satin bronze oil rubbed finish, enhancing both aesthetics and durability. Engineered for high-traffic environments, the Sargent 8600 Series exit devices exceed ANSI/BHMA Grade 1 requirements for cycle and strength, making them a reliable choice for any facility. Their modular construction and minimal moving parts contribute to a maintenance-free operation, providing peace of mind for building managers. Compatible with standard width stile applications on hollow metal doors, this exit device accommodates doors 1-3/4″ to 2-1/4″ thick, and supports both single and double door applications. The device is designed to meet specific door width requirements, with various rail sizes available, ensuring a perfect fit. With a 5-year limited warranty, the Sargent AD8606F is a smart investment in long-lasting security.
CVR Exit Device, Storeroom
Grade 1 Concealed Vertical Rod Exit Bar, Wide Stile Pushpad, 36″ Device, 96″ Door Height, Storeroom Function, Hex Key Dogging, Dark Oxidized Satin Bronze Oil Rubbed Finish, Right Hand Reverse
The Sargent 80 Series exit devices are ideal for environments that require strong and durable security solutions that will last the life of the building. Available in rim, mortise, surface vertical and concealed vertical rod configurations, these exit devices easily exceed ANSI/BHMA Grade 1 requirements for cycle and strength. With modular construction and few moving parts, the 80 Series devices are maintenance-free and provide unsurpassed security for any facility. Plus, options are available for unique applications including delayed egress, alarmed exit and electric latch retraction making these exit devices the go-to product in your building.
The Sargent 8600 Series provides simplicity, strength, and durability.
The 8600 Series is designed for standard width stile applications on hollow metal doors and has both single and double door applications.
- Door Types Metal Doors, 1-3/4″ (44mm) minimum thickness.
- For doors over 1-3/4″ to 2-1/4″ thick, specify thickness and order as 31-4-1/2″ (114mm) minimum stile width
- Rails are available in 4 sizes, use door width to determine size needed.
- Rails will be factory cut to size, if door width is supplied
- E Rail for 24″ to 32″ door widths, No cutting required for 32″ door
- F Rail for 33″ to 36″ door widths, No cutting required for 36″ door
- J Rail for 37″ to 42″ door widths, No cutting required for 42″ door
- G Rail for 43″ to 48″ door widths, No cutting required for 48″ door
- Strike 650 Top Strike & 606 Bottom Strike (Panic and Fire Rated)
- Dogging Feature Hex key dogging standard on non fired rated devices; specify 16- forcylinder dogging (#41 cylinder supplied)
- Electric Options AL- Alarm
- BT- Beacon™
- PL- SARGuide™ Photoluminescent Coated
- TL- SARGuide™ Illuminated Touchpad
- 53- LX Latchbolt Monitor
- 54- Outside Lever Monitoring
- 55- Request-to-Exit Signal – Rail Monitoring
- 56- Remote Latch Retraction
- 57- Delay Egress & Electromagnets
- 58- Electric Dogging
- 59- Electroguard – Self Contained Delayed Egress
- Mounting Fasteners Supplied standard with machine screws
- Top Bolt: Stainless steel
- Device Centerline from Finished Floor:41″ (1041mm) for Standard Applications,38″ (965mm) for elementary schools and to meet local accessibilitystandards when a 100 Series Auxiliary Control is used
- Door/Opening Height: Must be specified – 120″ (3048mm) Max Door Opening
- 96″ max door height for HC and WS options
- Center Case Dimensions: 8-3/8″ (213mm) x 2-5/8″ (67mm)
- Projection: Pushbar Neutral – 3″ (76mm),Pushbar Depressed – 2-1/8″ (54mm)
Attributes
Accessible: No
Ada Compliance: No
Ansi: ANSI/BHMA A156.3
Baa Qualified: Yes
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: USA
Device Length: 36″
Device Type: Concealed Vertical Rod
Dogging Options: Hex Key Dogging
Door Height: 96″
Door Material: Aluminum
Door Thickness: 1-3/4″ – 2-1/4″
Door Width: 33″ to 36″
Finish: 613/US10B
Finish Family: Dark Bronze
Fire Rated: No
Fire Rating: No
Grade: Grade 1
Handing: Right Hand Reverse
Includes Cylinders: No
Includes Trim: No
Installation: Commercial
Limited Warranty: 5 Years
Mechanical Function: Storeroom
Minimum Stile Size: 4-1/2″
Origin: USA
Pack Height: 6″
Pack Length: 38″
Pack Qty: 1.0
Pack Volume: 1710 in³
Pack Width: 7.5″
Physical Appearance: Wide Stile Pushpad
Reversible: No
Series: 8600 Series Concealed Vertical Rod Exit Devices
Ship Weight: 15 lbs.
Strike Bottom: 640.0
Subtype: Concealed Vertical Rod Exit Devices
Top Strike: 640.0
Trim Type: Less Trim
Type: Exit Devices
Ul Listing: UL305
Unit of Measure: Each
