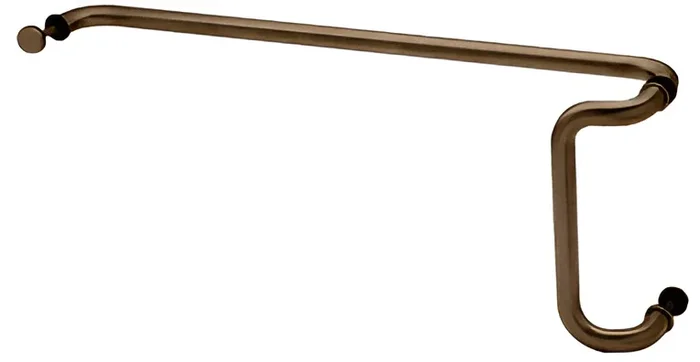

CRL CD10X33DU Dark Bronze 10″x33″ Back-to-Back Offset Push-Pull Handle Set
C.R. Laurence CD10X33DU Dark Bronze 10″ x 33″ Back-to-Back Offset Combination Push and Pull Handle Set is expertly designed to enhance both functionality and aesthetics in commercial or residential applications. This versatile handle set is suitable for use with 3/8″ to 3/4″ (10 to 19 mm) glass, making it an ideal choice for various glass installations. Constructed from durable 1″ (25.4 mm) diameter stainless steel or brass tubing, the handle set ensures long-lasting performance and a sleek finish. The available dark bronze anodized finish adds a touch of elegance, seamlessly complementing a range of architectural styles. Installation is straightforward, requiring three 5/8″ (16 mm) diameter holes for mounting. The handle set features a 10″ (254 mm) center-to-center pull configuration and a 33″ (838 mm) center-to-center push configuration, providing ergonomic functionality for high-traffic areas. Included in the package are through-bolts for glass mounting, along with matching finish metal washers and rubber gaskets for a polished look. With optional 1-1/4″ (32 mm) diameter variants available on special order, the C.R. Laurence CD10X33DU handle set is the perfect solution for those seeking a blend of style and practicality in their glass door hardware.
Dark Bronze 10″ x 33″ Back-to-Back Offset Combination Push and Pull Handle Set
- For Use with 3/8″ to 3/4″ (10 to 19 mm) Glass
- 1″ (25.4 mm) Diameter Stainless Steel or Brass Tubing
- Many Beautiful Architectural Finishes
- Use Monolithic Tempered Glass
This
CRL Glass Mounted Straight Push/Pull Handle Combination is available in two different sizes and many attractive architectural finishes.
SPECIFICATIONS:
For Use With: 3/8″ to 3/4″ (10 to 19 mm) Glass
Construction: 1″ (25 mm) Diameter
Stainless Steel or Brass Tubing
Glass Fabrication Required:
Three 5/8″ (16 mm) Diameter Holes,
10″ (254 mm) Center-to-Center
12″ (305 mm) Center-to-Center
28″ (711 mm) Center-to-Center
33″ (838 mm) Center-to-Center
Offset: 3″ (76 mm) Center-to-Center
Optional 1-1/4″ (32 mm) Diameter
Available on Special Order
INCLUDES:
2 Each: Through-Bolts for Glass Mounting
4 Each: 1-1/4″ (32 mm) Diameter Matching Finish Metal Washers and Rubber Gaskets
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.
Attributes
Compliance and Restrictions: Warning Reproductive Harm – www.p65warnings.ca.gov
Diameter: 1 in. (25 mm)
Finish/ Color:: Black Bronze Anodized
Glazing Thickness: 3/8 in. To 3/4 in. (10 mm To 19 mm)
Mounting Hole Diameter: 5/8 in. (16 mm)
Mounting Type: Back-to-Back
Pull Mounting Center To Center: 10 in. (254 mm)
Push Mounting Center To Center: 33 in. (838 mm)
Shipping Limitations: None
Style Washer Diameter: 1-1/4 in. (32 mm)
Style Washers: Yes
Resources
- Technical Specifications PH-CD10X33.pdf
