Description
CRL PH20CDU Dark Bronze Adjustable North American Door Patch Fitting
C.R. Laurence PH20CDU Dark Bronze Adjustable North American Top Door Patch Fitting offers exceptional versatility and precision for your door installation needs. This innovative fitting includes an adjustable pivot insert that allows for three degrees of movement, ensuring proper alignment with the door jamb when closed. Designed for use with monolithic tempered glass, it accommodates both 3/8″ and 1/2″ (10 or 12 mm) glazing thicknesses, providing flexibility in your design options. With a pivot setback of 2-3/4″ (70 mm), this fitting is compatible with our CRL9970 Overhead Concealed Door Closer, making it an ideal choice for a variety of architectural settings. The maximum door specifications include a height of 102″ (2.59 m), weight of 194 lbs. (88 kg), and width of 42″ (1.07 m). For larger doors, consider using full door rails, as these fittings are not suitable for laminated glass. Included with your purchase are templates and instructions to facilitate the installation process. Choose from five standard finishes to match your aesthetic preferences. Please note, this fitting should not be used with European 2-9/16″ (65 mm) pivot setback closers, which require the PH21C model instead. Elevate your door systems with this reliable and stylish top door patch fitting from C.R. Laurence.

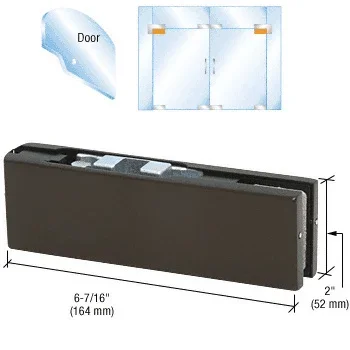

Dark Bronze Adjustable North American Top Door Patch Fitting
- Adjustable Pivot Insert Allows Three Degrees Movement for Proper Door Alignment
- 2-3/4″ (70 mm) Pivot Setback
- For 3/8″ or 1/2″ (10 or 12 mm) Glass
- Use Monolithic Tempered Glass
The
CRL Adjustable Top Door Patch Fitting includes an adjustable pivot insert that allows for 3 degrees of movement for proper alignment of the door to the jamb when in the closed position. For use with our CRL9970 Overhead Concealed Door Closer. Finished covers are available in five standard finishes. Gaskets are supplied that allow this Patch Fitting to be used with either 3/8″ or 1/2″ (10 or 12 mm) Glass.
The following guidelines are to be used when making a door using this hardware:
Maximum Height: 102″ (2.59 m)
Maximum Weight: 194 Lbs. (88 kg)
Maximum Width: 42″ (1.07 m)
If the door exceeds any of these limitations, full door rails should be used. These fittings are not for use with Laminated Glass.
GLASS FABRICATION REQUIRED:
One 3/4″ (19 mm) Diameter
Hole and Corner Notch
COMES WITH: Template and Instructions
DO NOT USE WITH:
European 2-9/16″ (65 mm) Pivot Setback Overhead Concealed Door Closers. They Require European Door Patch Fitting PH21C.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.
Attributes
Compliance and Restrictions: Warning Reproductive Harm – www.p65warnings.ca.gov
Finish/ Color:: Black Bronze Anodized
Glazing Thickness: 3/8 in., 1/2 in. (10 mm, 12 mm)
Pivot Setback: 2-3/4
Series: North American
Shipping Limitations: None
Type: Top
Resources
- Adjustable Top Door Patch Fitting Installation Instructions
- Commercial Patch Hardware European Series System CAD Drawings.dwg
- Commercial Patch Hardware European Series System CAD Drawings.pdf
- Commercial Patch Hardware North American Series System CAD Drawings.dwg
- Commercial Patch Hardware North American Series System CAD Drawings.pdf
- Commercial Patch Hardware Wedge Lock 3-8 inch Glass to 1-2 inch Glass System CAD Drawings.dwg
- Commercial Patch Hardware Wedge Lock 3-8 inch Glass to 1-2 inch Glass System CAD Drawings.pdf
- Commercial Patch Hardware Wedge Lock 5-8 inch Glass to 3-4 inch Glass System CAD Drawings.dwg
- Commercial Patch Hardware Wedge Lock 5-8 inch Glass to 3-4 inch Glass System CAD Drawings.pdf
- Instruction Manual AVDB3212-ph20c-inst.pdf
- PH20 PH10 Template.dwg
- PH20 PH10 Template.pdf
