Description

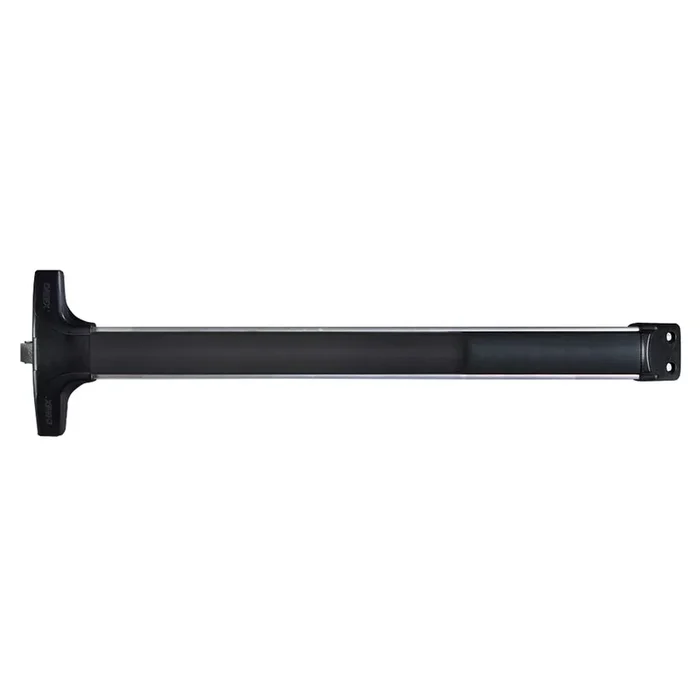

Detex V40 LD 628 99 48 Rim Exit Device 48 Instructions
Detex V40 LD 628 99 48 Rim Exit Device 48 offers a reliable solution for securing both single and double doors with mullions. This Grade 1 panic and fire exit hardware is designed for durability and ease of use, providing an economical option without compromising on quality. The device features a wide stile design and is finished in a sleek matte silver (628/US28), making it not only functional but also visually appealing. The patented mounting plate and strike locator system ensure a straightforward installation process, making it one of the easiest panic hardware options available. With a device length of 48 inches and a robust construction from aluminum, the V40 model is equipped with multiple alarm options, including an exit alarm with a 9-volt battery and a weatherized version for outdoor use. While this exit device does not include dogging, it supports various functionalities such as electric dogging, delayed egress, and electric latch retraction, catering to different security needs. Weighing 14 lbs and able to ship via UPS, the Detex V40 is perfect for commercial applications where safety and reliability are paramount. Choose this exit device for a blend of security, ease of installation, and long-lasting performance.
Rim Exit Device 48
Value Series Wide Stile Rim Exit Device, Less Dogging, 99 Surface Strike, 48 In. Device, Satin Aluminum/Black Pushpad
The V40 Series wide or narrow stile rim exit device is secure and durable, Grade 1 panic and fire exit hardware at an economical price. It is designed for use on all types of single and double doors with mullions. The patented mounting plate and strike locator system ensures the easiest and most accurate installation of panic hardware available.
Secure and durable panic and fire exit hardware at an economical price.
- Exit Alarm with 9 volt Battery (EB)
- Weatherized Exit Alarm (EBxW)
- Electric Dogging (ED)
- Delayed Egress (EE)
- Exit Alarm Hardwired 24VDC (EH)
- Hardwired 24VAC/DC Exit Alarm with Remote Signal (EHxR)
- Electric Integration (EI)
- Delayed Egress with Magnetic Lock (EM)
- Electric Latch Retraction (ER)
Attributes
Base Material: Aluminum
Commercial Residential: Commercial
Device Length: 48″
Device Type: Rim
Dogging Options: Less Dogging
Finish: 628/US28
Finish Family: Matte Silver
Fire Rated: No
Includes Trim: No
Installation: Commercial
Pack Height: 5.25″
Pack Length: 35″
Pack Qty: 1
Pack Width: 11.25″
Physical Appearance: Wide Stile Pushpad
Series: Detex Value Series Exit Devices
Ship Weight: 14 lbs.
Subtype: Rim Exit Devices
Type: Exit Devices
Resources
- 03WS Advantex and Value Series Trim Installation Instructions
- Advantex and Value Series Rim ES – Electric Signal Installation Instructions
- Advantex/Value Series RIM EI Products Installation Instructions
- Advantex/Value Series Rim ES Products Installation Instructions
- Architectural Value Series Delayed Egress & H Models Installation Instructions
- Architectural Value Series Electric Dogging/Latch Retraction Installation Instructions
- Detex Value Series Catalog
- Detex Value Series Exit Devices Cut Sheet
- Electrical Instructions for Value Series EB, EA, EX and EBxW Models
- Exit Device Catalog – Advantex and Value Series
- Install V50
- V40EB Installation Video
- V50xW Series
- Value Series FV40/V40 x EB x W V40 x EX x W Installation Instructions
- Value Series Parts Price List
- Value Series V40 Catalog Page
- Value Series V40 How to Order Guide
- Value Series V40, FV40 Installation Instructions
- Value Series V40xW Catalog Page
- Value Series V50 How to Order Guide
- ValueSeries Battery Change
