Description

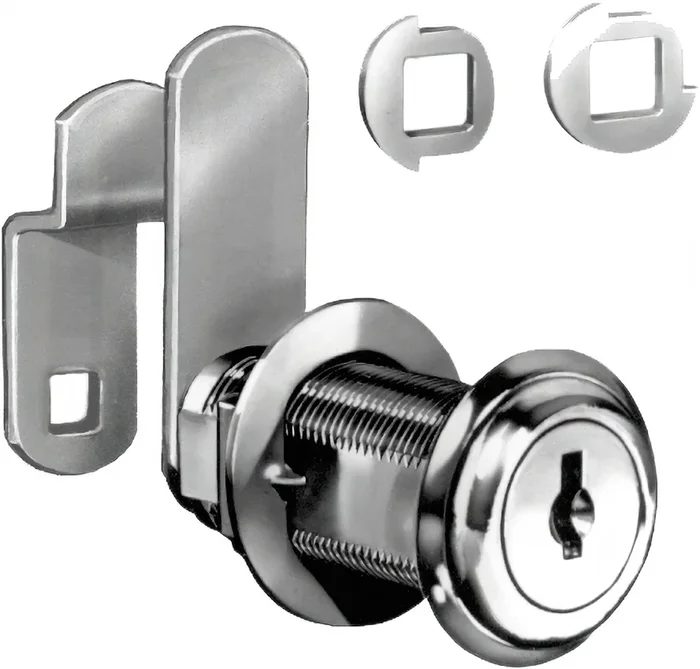

Compx C8075-KAC413A-14A Disc Cam Lock 1-7/16in Flexafunction
Compx Security Products C8075-KAC413A-14A Disc Cam Lock offers a reliable locking solution for both drawers and doors with lipped/overlay or flush construction. Designed with versatility in mind, this cam lock features a cylinder length of 1-7/16 inches, accommodating various material thicknesses while ensuring secure closure. The operation allows for either a 90° or 180° cam turn, with the key removable in both locked and unlocked positions, providing ease of use. Included in the packaging are two keys, a trim washer, a spur washer for wood applications, a mounting nut, two cams, and two stop washers. For metal installations, a flat washer can be purchased separately (C2015-2C). This lock is designed to key together with all other disc tumbler locks utilizing the D8785 key blank, with master keying options available using the D8783 key blank. Constructed with a bright nickel finish, the C8075-KAC413A-14A is both functional and aesthetically pleasing, making it an ideal choice for building professionals and discerning homeowners alike. Its robust design ensures long-lasting performance, while the ease of installation makes it a practical addition to any security setup. Choose Compx Security Products for quality and reliability in your locking solutions.
Disc Cam Lock 1-7/16in Flexafunction
Notice: The info below is not item specific.
C8060, C8073, C8075:
- Application: For drawers, R.H. or L.H. doors with lipped/overlay construction (straight cam) or flush construction (formed cam). For overlay application, the combined thickness of front and frame cannot exceed the cylinder length. Also see overlay detail at above right.
- Operation: Choice of either 90° or 180° cam turn. Key removable in both locked and unlocked positions.
- Keying: Will key together with all other disc tumbler locks using D8785 key blank. See table for available keying. Master keying to E41A using D8783 key blank.
- Packaging: Supplied with two keys, trim washer, spur washer (for wood), mounting nut, two cams and two stop washers. If flat washer (for metal) is needed, order C2015-2C separately.
C8080:
- Application: For doors and drawers. Surface mounted. Requires 3/4″ diameter hole for cylinder.
- Operation: Choice of either 90° or 180° cam turn. Key removable in both locked and unlocked positions.
- Keying: Will key together with all other disc tumbler locks using D8785 key blank. See table for available keying. Master keying to E41A using D8783 key blank.
- Packaging: Supplied with two keys, two mounting screws, two formed cams and two stop washers. Assembled for 90° cam turn.
| Part No. | Type of Mounting | Cylinder Length | Max. Material Thickness | KA * Codes | KD Changes | MKKD Changes | Case QTY | Reference Number | Non MK Key Blank |
| C8060-14A | Lipped/Overlay or Flash | 1-3/4″ | 1-7/16″ | 10 | 200 | 200 | 25 | M4-8060 | D8785 |
| C8060-3 | Lipped/Overlay or Flash | 1-3/4″ | 1-7/16″ | 6 | 200 | 200 | 25 | M4-8060 | D8785 |
| C8060-4G | Lipped/Overlay or Flash | 1-3/4″ | 1-7/16″ | 6 | 200 | 200 | 25 | M4-8060 | D8785 |
| C8073-14A | Lipped/Overlay or Flash | 1-3/16″ | 7/8″ | 10 | 200 | 200 | 25 | M4-8073 | D8785 |
| C8073-3 | Lipped/Overlay or Flash | 1-3/16″ | 7/8″ | 6 | 200 | 200 | 25 | M4-8073 | D8785 |
| C8073-4G | Lipped/Overlay or Flash | 1-3/16″ | 7/8″ | 6 | 200 | 200 | 25 | M4-8073 | D8785 |
| C8075-14A | Lipped/Overlay or Flash | 1-7/16″ | 1-1/8″ | 6 | 200 | 200 | 25 | M4-8075 | D8785 |
| C8075-3 | Lipped/Overlay or Flash | 1-7/16″ | 1-1/8″ | 6 | 200 | 200 | 25 | M4-8075 | D8785 |
| C8075-4G | Lipped/Overlay or Flash | 1-7/16″ | 1-1/8″ | 6 | 200 | 200 | 25 | M4-8075 | D8785 |
| C8080-14A | Lipped/Overlay or Flash | 7/8″ | 7/8″ | 6 | 200 | 200 | 25 | M4-8080 | D8785 |
| C8080-3 | Lipped/Overlay or Flash | 7/8″ | 7/8″ | 6 | 200 | 200 | 25 | M4-8080 | D8785 |
| C8080-4G | Lipped/Overlay or Flash | 7/8″ | 7/8″ | 6 | 200 | 200 | 25 | M4-8080 | D8785 |
Key Codes Used:
- 6 Codes – C346A, C390A, C413A, C415A, C420A and C642A.
- 10 Codes – C205A, C267A, C346A, C361A, C390A, C413A, C415A, C420A, C441A and C642A.
- Not available with FlexaCam™
Features
- Application: For drawers, R.H. or L.H. doors with lipped/overlay construction (straight cam) or flush construction (formed cam). For overlay application, the combined thickness of front and frame cannot exceed the cylinder length. Also see overlay detail at above right.
- Operation: Choice of either 90° or 180° cam turn. Key removable in both locked and unlocked positions.
- Keying: Will key together with all other disc tumbler locks using D8785 key blank. See table for available keying. Master keying to E41A using D8783 key blank.
- Packaging: Supplied with two keys, trim washer, spur washer (for wood), mounting nut, two cams and two stop washers. If flat washer (for metal) is needed, order C2015-2C separately.
Attributes
Alternate Codes: 115880, C8075KA41314A, C8075-KAC413A-14A, C8075KAC413A14A, COMC8075KA41314A
Category: Cam & Drawer, Cam & Drawer Locks Etc., Lock Sets
Finish Color: Bright Nickel
Lock Style: Cam Lock
Size: 1-7/16″
