Description

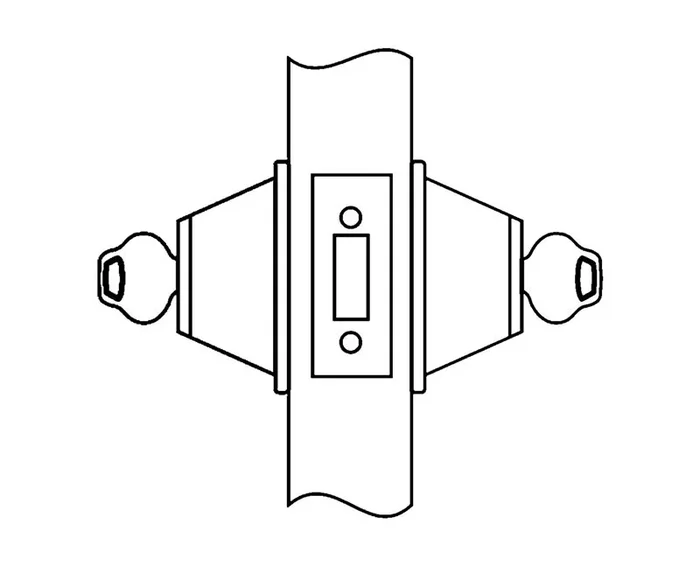

Corbin Russwin DL3012 612 LC DL3000 Double Cylinder Deadbolt
Corbin Russwin DL3012 612 LC DL3000 Double Cyl Deadbolt offers robust security with its double cylinder design, making it an excellent choice for exterior doors where enhanced safety is paramount. Crafted from durable satin bronze, this clear-coated deadbolt not only provides a sophisticated look but also stands up to the rigors of daily use. Designed for standard door thicknesses of 1-3/4″ to 2-1/4″, the DL3012 features a non-handed design, ensuring easy installation regardless of door orientation. The standard 2-3/4″ backset enhances compatibility with various door types, while the wrought brass or bronze front plate measures 2-1/4″ x 1-1/8″, accommodating both flat and beveled doors. The deadbolt itself boasts a 1″ throw, made from zinc diecast with a hardened steel insert, providing an additional layer of protection against forced entry. Accompanied by two nickel silver standard keys, this model also offers multiple keying options, including master keying and interchangeable cores, tailored to meet diverse security needs. With a one-year limited warranty, the Corbin Russwin DL3012 is a reliable choice for those seeking a blend of style, functionality, and security in their door hardware.
DL3000 Double Cyl Deadbolt
Double Cylinder, Less Cylinder, Satin Bronze Clear Coated
FeaturesHanding: Non-handed, except DL3017, which is handed and field reversible.Door Thickness: Standard – 1-3/4″ (44mm) – 2-1/4″ (57mm). Optional door thicknesses available; see Quick Codes.Backset: Standard – 2-3/4″ (70mm); Optional – 2-3/8″ (60mm)Front: Standard – wrought brass or bronze, 2-1/4″ (57mm) x 1-1/8″ (29mm). Accommodates flat doors and doors beveled 1/8″ (3mm) in 2″ (51mm).Deadbolt: Zinc diecast hardened steel insert. 1″ (25mm) throw, 5/8″ (16mm) wide x 3/4″ (19mm) high.Strike: Standard – 2-3/4″ (70mm) x 1-1/8″ (29mm). Optional strikes and wrought boxes availableCylinder: Brass, 6-pin, L4 keyway, 0-bitted. Security cylinders optional; see Quick Codes.Keys: Two nickel silver standard.Keying Features Available; Master keying; Construction master keying; 7-pin (FC) conventional; Interchangeable core (IC); Security; Security (IC); Visual key control; Concealed key control; Pyramid (FC); Pyramid (IC)Warranty: One-year limited.
The DL3000 Series is non handed and available in various finishes.
- Handing:Non-handed, except DL3017, which is handed and field reversible.
- Door Thickness:Standard – 1-3/4″ (44mm) – 2-1/4″ (57mm). Optional door thicknesses available; see Quick Codes.
- Backset:Standard -2-3/4″ (70mm); Optional -2-3/8″ (60mm)
- Front:Standard -wrought brass or bronze, 2-1/4″ (57mm) x 1-1/8″ (29mm). Accommodates flat doors and doors beveled 1/8″ (3mm) in 2″ (51mm).
- Deadbolt:Zinc diecast hardened steel insert. 1″ (25mm) throw, 5/8″ (16mm) wide x 3/4″ (19mm) high.
- Strike:Standard -2-3/4″ (70mm) x 1-1/8″ (29mm). Optional strikes and wrought boxes available
- Cylinder:Brass, 6-pin, L4 keyway, 0-bitted. Security cylinders optional; see Quick Codes.
- Keys:Two nickel silver standard.
- Keying Features Available;Master keying; Construction master keying; 7-pin (FC) conventional; Interchangeable core (IC); Security; Security (IC); Visual key control; Concealed key control; Pyramid (FC); Pyramid (IC)
- Warranty:One-year limited.
Attributes
Base Material: Bronze
Bolt Projection: 1 In.
Burglar Rated: No
Cylinder Type: Less Cylinder
Door Thickness: 1-3/4 In. – 2-1/4 In.
Dust Box: None
Finish: 612/US10
Fire Rated: No
Fire Rating: No
Function: 12-Double Cylinder Deadbolt
Handing: Not Handed
Limited Warranty: 1 Year
Pack Height: 2.5″
Pack Length: 6″
Pack Qty: 1
Pack Volume: 63.75 in³
Pack Width: 4.25″
Screws: Combination
Series: DL3000 Series Cylindrical Deadlocks
Ship Weight: 2.3 lbs.
Std Latch Backset Dim: 2-3/4 In.
Std Latch Type: Deadbolt
Std Strike Height: 2-3/4 In.
Std Strike Type: Flat
Std Strike Width: 1-1/8 In.
Subtype: Deadbolts
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
Resources
- DL3000 Installation Instructions
- DL3000 Parts List With Exploded View
- DL3000 Series Cylindrical Deadlocks Cut Sheet
- DL3000WP Parts List With Exploded View
- DL3000WP Wiring Instructions
- EC Declaration of Conformity for the DL3000 Series Cylindrical Lock
- Padlocks and Deadlocks Catalog
