Description

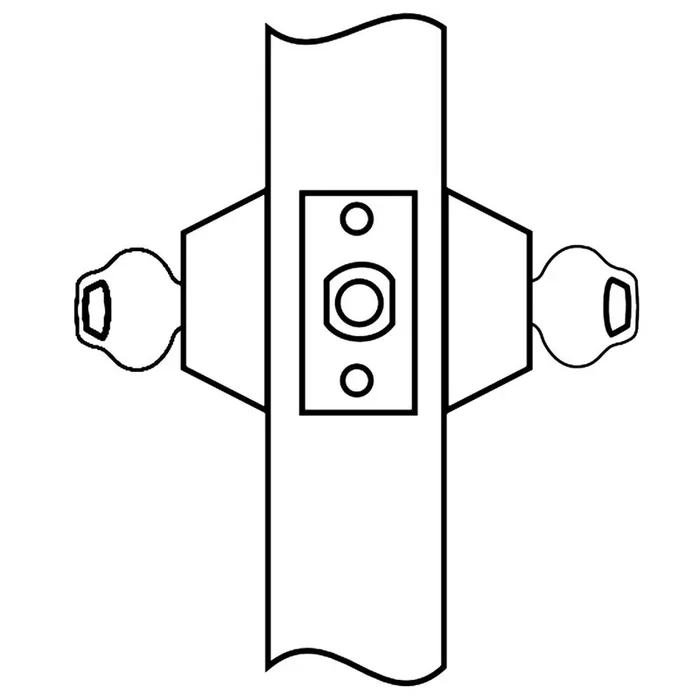

Corbin Russwin DL3212 612 CL6 DL3200 Double Cylinder Deadbolt
Corbin Russwin DL3212 612 CL6 DL3200 Double Cyl Deadbolt offers robust security and versatility for both residential and commercial applications. This double cylinder deadbolt features a solid steel construction with a hardened, free-spinning steel pin insert and a 1-inch throw, ensuring maximum strength and durability. Designed for doors with a standard thickness of 1-3/4 inches, the DL3212 is adaptable to various door sizes with optional thicknesses available. Certified to Grade 1 standards under ANSI/BHMA 156.5, this deadbolt is engineered for high-traffic environments, providing peace of mind for property owners. Its non-handed design simplifies installation, while the standard 161 door prep ensures compatibility with most existing doors. The deadbolt is equipped with a brass 6-pin cylinder that comes with two nickel silver keys, and additional keying options such as master keying and construction master keying are available for enhanced security control. With a satin bronze clear-coated finish, the DL3212 not only offers functionality but also a refined aesthetic. It is UL listed for use with fire-rated doors, making it a reliable choice for safety and security. Backed by a one-year limited warranty, this deadbolt delivers quality and performance for any entryway.
DL3200 Double Cyl Deadbolt
Double Cylinder, Large Format Interchangeable Less Core, Satin Bronze Clear Coated
Corbin Russwin is pleased to introduce the DL2200 and DL3200 cylindrical deadlocks. These easy to install deadlocks feature a solid steel deadbolt – with a hardened, free spinning, steel pin insert – and a 1″ throw. Ideal for a variety of applications, the DL2200 is certified to 156.5 Grade 2 standards and the DL3200 is certified to 156.5 Grade 1 standards. FeaturesSolid steel deadbolt with a hardened, free spinning, steel pin insert and a 1″ throw1-3/4″ door thickness standard; additional door thicknesses offeredAvailable in 2-3/4″ or 2-3/8″ backsetsStandard 161 door prepPyramid cylinders optionalUL listed for use with Fire Rated doors
Non-handed cylindrical deadlock.
- Handing Non-handed.
- Door Thickness Standard: 1-3/4″ (44mm). Optional door thicknesses available
- Backset Standard: 2-3/4″ (70mm) Optional: 2-3/8″ (60mm)
- Front Standard: brass or stainless steel, 2-1/4″ (57mm) x 1-1/8″ (29mm). Optional: 1″ width; see Quick Codes.
- Deadbolt 1″ throw, solid steel deadbolt with hardened, free spinning, steel pin insert.
- Strike Standard; 2-3/4″ (70mm) x 1-1/8″ (29mm). Optional strikes and wrought boxes available; see Strikes, this page.
- Cylinder Standard: brass, 6-pin, L4 keyway, 0-bitted. Security cylinder optional; see Quick Codes.
- Keys Two nickel silver standard.
- Keying Features Available Master keying Construction master keying Security Visual key control Concealed key control
- Warranty One-year limited.
Attributes
Base Material: Bronze
Bolt Projection: 1″
Burglar Rated: No
Cylinder Type: Sargent LFIC Less Core
Door Thickness: 1-3/4″
Dust Box: None
Finish: 612/US10
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 12-Double Cylinder Deadbolt
Handing: Not Handed
Limited Warranty: 1 Year
Pack Height: 4″
Pack Length: 7.88″
Pack Qty: 1
Pack Volume: 126 in³
Pack Width: 4″
Screws: Combination
Series: DL3200 Series Cylindrical Deadlocks
Ship Weight: 2.5 lbs.
Std Latch Backset Dim: 2-3/4″
Std Latch Type: Deadbolt
Std Strike Height: 2-3/4″
Std Strike Type: Flat
Std Strike Width: 1-1/8″
Subtype: Deadbolts
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
Resources
- DL2200/DL3200 Installation Instructions
- DL3200 Series Cylindrical Deadlocks Cut Sheet
- Padlocks and Deadlocks Catalog
