Description

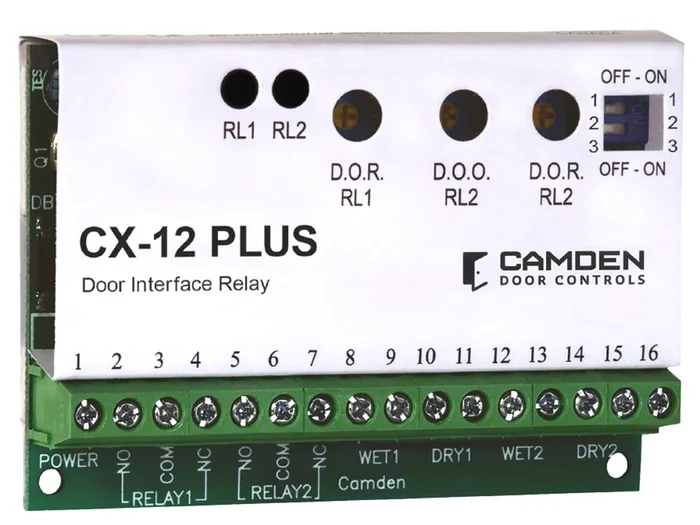

Camden CX-12Plus Relay
Camden has combined the industry leading features of our CX-12 Switch Network, including easy system interconnection, and our CX-22 Dual Function Relay, providing bi-directional door sequencing and basic restroom control.
Attributes
Alternate Codes: CX-12PLUS, CX12PLUS
Base Series: Camden Relays
Box Depth Fraction: 1-1/2″
Box Height Fraction: 4-23/32″
Box Width Fraction: 3″
Category: Door Closers, Door Operators, Power Operators
Commercial Residential: Commercial
Country of Origin: Canada
Country of origin: Canada
Delay Duration: Adjustable 1 to 30 Second Time Delay
Fire Rated: No
Fire Rating: No
Installation: Commercial
Limited Warranty: 3 Years
Line Draw: 20-60mA
Operating Voltage: 12/24V AC/DC
Origin: Canada
Pack Height: 4.72″
Pack Length: 1.5″
Pack Qty: 1
Pack Volume: 21.24 in³
Pack Width: 3″
Product Height: 3.25″
Product Length: 0.69″
Product Width: 2.31″
Relay Action: Multi Function
Relay Type: SPDT
Relays: 2
Series: Camden Electrical Accessories
Ship Weight: 0.22 lbs.
Subtype: Relay
Type: Sensors, Switches, Relays, Timers
Unit of Measure: Each
Upc: 670454202710
Upc Code: 6.70E+11
