Description
Hafele 408.32.902 Hawa Door Straightening Fitting
Hafele 408.32.902 Door Straightening Fitting, Hawa adds essential rigidity to your sliding and pivoting doors, effectively preventing warping and twisting. With a generous length of 1575 mm (62 inches), this fitting is designed to accommodate door heights ranging from 1215 mm to 2850 mm (47 13/16″ to 112 3/16″) and thicknesses between 16 mm and 50 mm, making it a versatile choice for various applications. The black anodized aluminum tensioning profile is recessed and can be either screw-fixed or glued for added convenience. Adjustment is straightforward, utilizing pre-mounted hex screws that can be easily manipulated with an 8 mm (5/16″) open-ended wrench. For optimal performance, two alignment fittings per door are recommended, though this fitting is not suitable for hardwood. When used with lacquered panels, it’s important to note that milling may be visible on the front. Each kit includes two door alignment fittings along with all necessary components, except for the fastening screws for the tensioners and retaining plates. Enhance the durability and functionality of your doors with Hafele’s expertly engineered solution, ensuring a smooth and reliable operation for years to come.
Door Straightening Fitting, Hawa
Adds rigidity and helps prevent warping and twisting of doors and panels, black, 1575 mm length (62″)
Prevents doors from warping and/or straightens warped doors
Tensioning profile is recessed and screwed in place (optionally it can be glued in place) Fitting is adjusted via the pre-mounted hex screws with an 8 mm (5/16″) open ended wrench
Two alignment fittings per door are recommended. Not suitable for hardwood. When using this product in combination with lacquered panels, please note that the milling may show on the front.
Attributes
Area of application: For sliding and pivoting doors
Color/finish: Black anodized

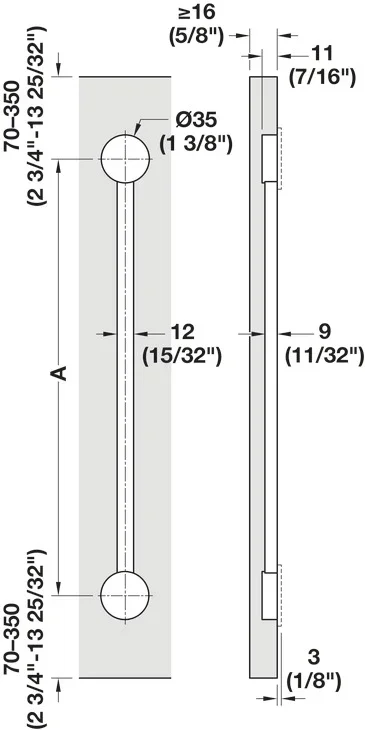

Dim. A: 1575 mm length (62″)
Distance to cup: 1,575 mm
For door height: 1215 – 2,850 mm
For door height (inches): 47 13/16″–112 3/16″
For door thickness: 16 – 50 mm
Installation: For recess mounting and screw fixing (for glue fixing optional)
Material: Tensioning profile: Aluminum Tensioners: Plastic
Supplied with: Each kit consists of 2 door alignment fittings including all components except the fastening screws for the tensioners and the retaining plates
Resources
- Manufacturer information
- TCH_Furniture_Cabinetry_Hardware_ 2022 | Page 7.93B
