Description

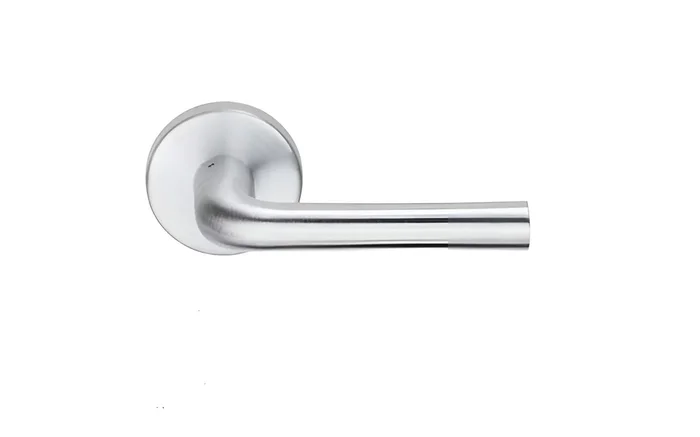

Schlage L9473R02A625 Dormitory Mortise Lock, Large Format IC Core, Chrome Finish, 2 Lever
Schlage Commercial L9473R02A625 Dormitory / Bedroom Mortise Lock offers exceptional security and stylish design, perfect for residential or commercial environments. This lock features a large format IC core C keyway, providing advanced access control suitable for dormitory and bedroom applications. The reversible handing ensures flexibility during installation, accommodating various door configurations. Constructed with a bright chrome finish, this lock not only enhances the aesthetics of any space but also offers durability and resistance to wear and tear. The 2-1/8″ rose and 4-3/4″ lever provide a sleek profile, while the 2-13/16″ projection allows for smooth operation and comfortable grip. The ANSI strike ensures compatibility with standard door frames, making it easy to integrate into existing setups. Designed with a 2-3/4″ backset, the Schlage L9473R02A625 is part of the L Series, known for its reliability and robust performance. This lock is a great choice for building professionals and homeowners seeking a blend of security, functionality, and modern design. With the ability to ship via UPS, this product is readily available for your next project, ensuring you can secure spaces with ease and style.
Dormitory / Bedroom Mortise Lock with Large Format IC Core C Keyway with 02 Lever and A Rose Bright Chrome Finish
- Commercial Grade 1
- UL Listed for 3 Hour Fide Door
- ANSI/BHMI Certified A156.13-2012
- Lock Body Mortises Inside the Edge of the Door
- L Series
Attributes
Ansi Function: F21 – Entry Office
Baa Qualified: Yes
Backset: 2-3/4″ Backset
Bolt Protection: 3/4″ Latch, 1″ Deadbolt
Category: Mechanical Commercial Locksets
Country of Origin: Mexico
Cylinder Type: Schlage FSIC With Core
Dimension: 2-1/8″ Rose with 4-3/4″ Lever and 2-13/16″ Projection
Door Range: 1-3/4″
Door Thickness: 1-3/4″
Dust Box: Plastic
Finish: Bright Chrome
Finish Code: 625
Finish : Bright Chrome
Fire Rated: 3 Hours {A}
Function: 9473-Dormitory Bedroom Lock
Grade: Grade 1
Hand: Field Reversible
Handing: Reversible
Hazardous Material: NO
Keying: 1 Bitted
Keys: Cut
Keyway: S123
Latch Faceplate Dimension: 1-1/4″ x 8″
Lever Knob Design: 02 – Lever
Limited Warranty: 3 Years
Lock Face Size: 8″ x 1-1/4″
Manufacturer Warranty: Limited 10 Year Mechanical and 3 Year Electro Mechanical Warranty
Material: Zinc Base
No Of Inners: 1
Num Of Keys: 2
Num Pins: 6
Order_ Qty: 1
Rose Escutcheon Design: A – Rose
Screws: Combination
Series: L Series
Strike: ANSI Strike
Strike Dimension: 4-7/8″ with 1-1/4″ Lip
Strike Height: 4-7/8″
Strike Number: 10-072
Strike Type: ASA
Strike Width: 1-1/4″
Subcategory: Mortise Locksets
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing Type: UL Listed for 3 Hour Fire Door
