Description

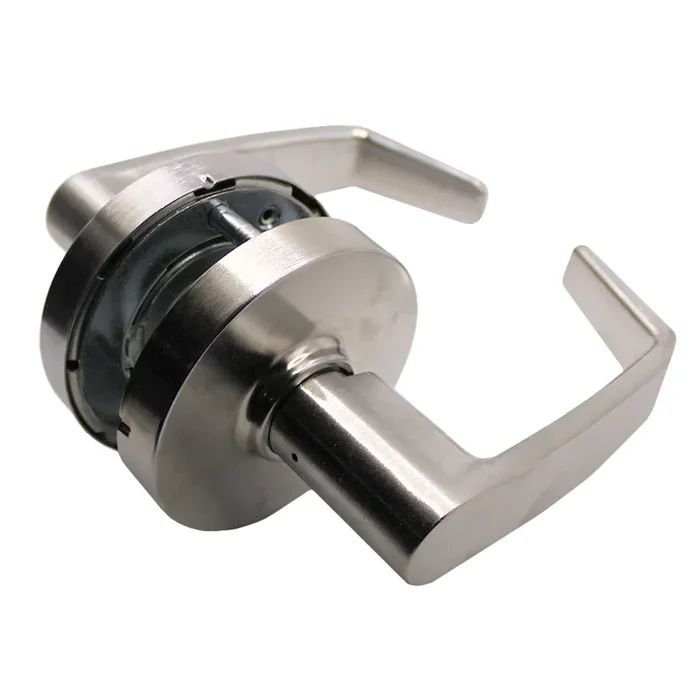

Sargent 10XU94 LL 26D Double Dummy Lever Pull Grade 1, L Lever Rose, Satin Chrome Finish
Sargent 10XU94LL26D Double Dummy Lever Pull Grade 1 with L Lever and L Rose in Satin Chrome Finish delivers both style and functionality for various applications. Designed for durability, this product exceeds ANSI/BHMA A156 2 Grade 1 requirements, ensuring reliable performance in demanding environments such as commercial, healthcare, and educational settings. The adaptable through-bolt positioning allows for quick installation in under one minute, making it an excellent choice for retrofit projects or new constructions. With a solid feel and precise lever action, the Sargent 10XU94LL26D provides an exceptional user experience. The reversible handing means it can easily accommodate different door orientations, adding to its versatility. Measuring 4-1/2 inches for the lever with a 2-15/16 inch projection and a 3-1/2 inch rose, this cylindrical lockset is both functional and aesthetically pleasing. The satin chrome finish (US26D) not only enhances its visual appeal but also offers resistance to wear. Additionally, this product comes with a 7-year limited warranty and features a UL and cUL 3-hour fire rating, ensuring safety and compliance. Equip your doors with the Sargent 10XU94LL26D for a blend of elegance and security.
Double Dummy Lever Pull Grade 1 with L Lever and L Rose Satin Chrome Finish
SARGENT Manufacturing Company, an ASSA ABLOY Group company, was founded in the early 1800s and is a leading manufacturer of architectural hardware and locking products for new and retrofit applications. SARGENT products are installed in many types of buildings, including commercial, healthcare, industrial and educational, and are “key” to the security of them all.
- Installs in 1 minute or less
- Solid feel and precise lever action
- Cycle Test: Exceeds ANSI/BHMA A156 2 Grade 1 requirements
- Fits a variety of door preparations with adaptable through-bolt positioning
- Quickly adapts to fit multiple through-bolt positions
Attributes
Alternate Codes: 10XU94-LL-26D, 10XU94LL26D
Base Material: Brass, Bronze
Box Depth Fraction: 8-1/4″
Box Height Fraction: 4-1/4″
Box Width Fraction: 7-1/8″
Burglar Rated: No
Category: Commercial Locks, Cylindrical Levers, Lock Sets
Commercial Residential: Commercial
Country of Origin: Usa
Country of origin: United States
Cylinder Type: Non-Keyed
Cylinders Present: Non-Keyed
Dimension: 4-1/2″ Lever with 2-15/16″ Projection, and 3-1/2″ Rose
Door Thickness: 1-3/4″ to 2″
Finish: Satin Chrome
Finish Code: US26D
Finish : Satin Chrome
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: Dummy Trim
Function Family: Dummy
Grade: Grade 1
Handing: Reversible
Hazardous Material: NO
Installation: Commercial
Lever Knob: Lever
Lever Knob Design: L Lever
Lever Knob Design Name: L
Leverknob Design: L Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 10 Year Limited Warranty
Manufacturer Function: Double Lever Pull
Manufacturer Warranty: 7 Year Limited Warranty
Material: Zinc
Maximum Door Thickness: 2″
Minimum Door Thickness: 1-3/4″
No Of Inners: 1
Order_ Qty: 1
Origin: United States
Pack Height: 4.25″
Pack Length: 8.25″
Pack Qty: 1
Pack Volume: 249.82 in³
Pack Width: 7.13″
Product Height: 4.25″
Product Length: 8.25″
Product Width: 7.13″
Projection: 2-15/16″
Rose Escutcheon: Rose
Rose Escutcheon Design: L Rose
Rose Escutcheon Design Family: Large Rose
Roseescutcheon Design: L Rose
Roseescutcheon Dimensions: 3-1/2″
Screws: Wood/Machine Screws
Series: 10X Line Series
Ship Weight: 4 lbs.
Std Strike Height: 4-7/8″
Std Strike Number: 808
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4″
Strike Dimensions: 1-1/4″ x 4-7/8″
Subcategory: Cylindrical Locksets
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
Ul Listing Type: UL and cUL 3 Hour Fire Rating
Unit of Measure: Each
