Description

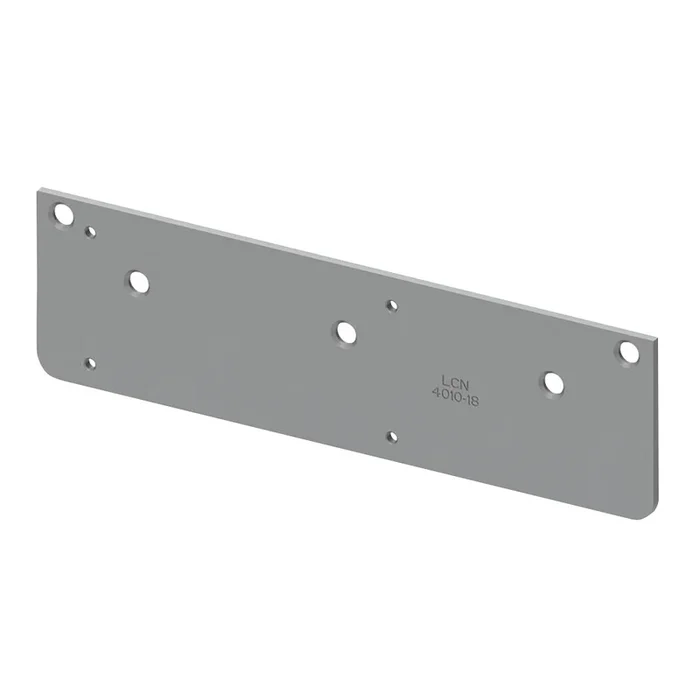

LCN 4010-18 652 Top Rail Drop Plate US26D
LCN 4010-18 652 Drop Plate, Top Rail US26D is engineered for high traffic and institutional environments, delivering unmatched performance and durability. This heavy-duty closer is designed to mount on narrow top rails or flush ceilings, featuring a sleek satin chrome finish that seamlessly integrates into any commercial setting. The 4010 series is equipped with a standard regular arm, plastic cover, and self-reaming and tapping screws for easy installation, ensuring quick setup without compromising quality. It supports sized cylinders suitable for interior doors up to 5 feet and exterior doors up to 4 feet, while the adjustable non-sized cylinder option can accommodate various door sizes.This closer meets ADA requirements and is UL and cUL listed, making it a reliable choice for self-closing applications. It has been rigorously tested and certified under ANSI Standard A156.4, Grade 1, assuring long-lasting reliability. Optional custom powder coat finishes and plated options enhance its aesthetic appeal, while corner brackets are available for tailored installations. The LCN 4010-18 Drop Plate is a smart investment for any commercial space, combining modern design with robust functionality to meet the demands of busy environments.
Drop Plate, Top Rail US26D
Drop Plate, Narrow Top Rail or Flush Ceiling, Satin Chrome
The 4010 is the best performing heavy duty closer designed specifically for institutional and other rugged high traffic applications.
The Surface mounted 4000 Series LCN closers feature a very modern design engineered for each application, easy installation, and superior performance and are designed for high traffic settings.
- Standard 4010 series closer is shipped with regular arm, standard plastic cover, and self reaming and tapping screws. See Options tab for options.
- Sized cylinders for interior doors to 5’0” and exterior doors to 4’0”.
- Non-sized cylinder (4011) adjustable for interior doors to 4’6” and exterior doors to 3’6”.
- Closer mounts hinge side, specify right or left swinging door.
- Corner brackets available. See Options tab for options.
- 4011 cylinder meets ADA requirements.
- Standard or optional custom powder coat finish.
- Optional plated finish on metal cover, arm and fasteners.
- Optional SRI primer for installations in corrosive conditions is available with powder coat only.
- The 4010 Series is UL and cUL listed with regular or fusible link arms for self-closing doors.
- Tested and certified under ANSI Standard A156.4, Grade 1.
Attributes
Manufacturer surcharge: 4.5%
Baa Qualified: Yes
Base Material: Brass or Bronze
Commercial Residential: Commercial
Finish: 626/US26D
Finish Family: Matte Silver
Installation: Commercial
Pack Qty: 1
Series: 4010 Series Surface Mounted Closers
Subtype: Door Closer Mounting Plates
Type: Door Closers and Operators
Unit of Measure: Each
Resources
- 4010 Series Surface Mounted Closers Cut Sheet
- LCN 4000 Series Catalog
- LCN 4010 Series Cut Sheet
- LCN 4010 Series Installation Instructions
- LCN 4010, 4010T, 4510, 4510T Drop Plate Installation Instructions
- LCN 4010, 4020 & 4110 Door Closer w/ Fusible Link Arm Installation Guide
- LCN 4011 Closer Installation Video
- LCN Closers & Auto Operators Installation Guide
- LCN Closers & Automatic Operators Parts Manual
- Von Duprin Finishes Chart
