Richelieu GRDY163HD18 DYNAPRO16 HD Soft-Close Undermount Slide for Face Frame/Frameless Cabinets
Richelieu GRDY163HD18 DYNAPRO16 HD Full Extension Undermount Slide with Soft-Close is designed to enhance both functionality and aesthetics in your cabinetry. Suitable for face frame or frameless applications, this slide accommodates drawer materials ranging from 1/2″ (12.7 mm) to 5/8″ (16 mm). The full extension feature, combined with a synchronized mechanism, ensures smooth and effortless access to your drawers. Equipped with a soft-close damping system, the GRDY163HD18 guarantees a gentle and quiet close, preventing slamming and enhancing the longevity of your cabinets. A required self-latching front locking device adds to the ease of use, offering a comfortable release every time. The slide also comes with multiple adjustment options, including height adjustment of ±3.5 mm, side adjustment of ±1.5 mm, and tilt adjustment of +4.0 mm, ensuring a perfect fit for any installation. With a robust load capacity of 132 lbs, this undermount slide is suitable for hybrid drawer types and is finished in durable zinc. Measuring 18 inches in length, the Richelieu GRDY163HD18 is an ideal choice for homeowners and professionals looking to elevate their cabinetry solutions with reliable and innovative hardware.

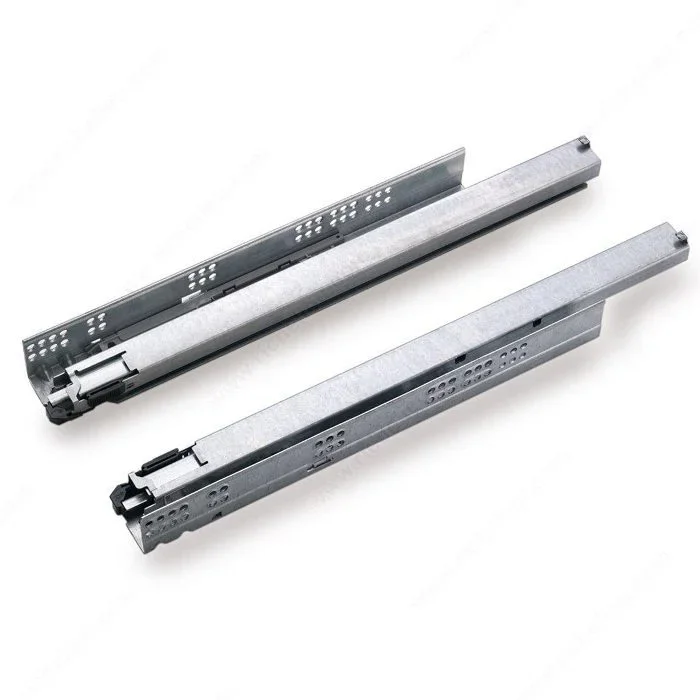

DYNAPRO16 HD Full Extension Undermount Slide with Soft-Close for Face Frame or Frameless Cabinets
– Face frame or frameless applications from 1/2″ (12.7 mm) up to 5/8″ (16 mm) drawer material
– Face frame applications must be blocked out
– Full extension with a synchronized mechanism
– Soft-close damping system
– Required self-latching front locking device offers comfortable release
– Height adjustment ±3.5 mm
– Side adjustment ±1.5 mm
– Tilt adjustment +4.0 mm
– Depth adjustment +4.5 mm (optional)
Attributes
Brand: Grass
Cabinet Model: Framed, Frameless
Drawer Type: Hybrid
Finish: Zinc
Length: 18 in
Load Capacity: 60 kg
Motion Technology: Soft-Close
Product #: GRDY163HD18
Product Line: DYNAPRO
Product number: GRDY163HD18
Product №: GRDY163HD18
Slide Extension: Full Extension
Slide Mounted: Bottom-Mounted
Unit: Pair
Unit 1: case – 5
Unit 2: case – 5
Resources
- Line art
