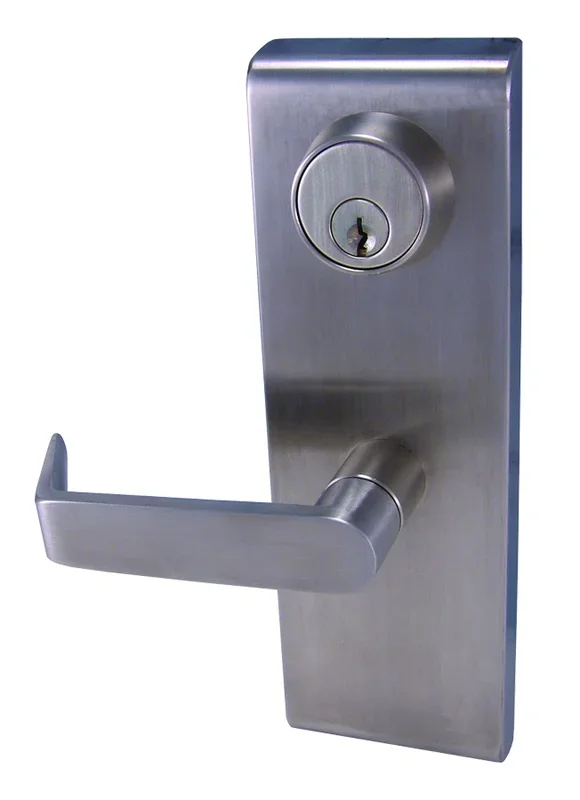

Design Hardware E-LE-08 24V FS 32D Electric Exit Trim, FS/FSE 12/24VDC, Lever x Escutcheon, Satin Stainless Steel
Design Hardware E-LE-08 24V FS 32D Electric Exit Trim is engineered for heavy-duty performance in stairwell conditions and other environments where electric pullback of the exit device’s latch bolt is unnecessary. This versatile trim is particularly advantageous in applications adhering to fire and life safety codes that demand a fail-safe condition, eliminating the need for costly electrified latch pullback devices. With a low current draw, it operates efficiently without requiring an expensive power supply. Constructed from a robust steel chassis with a satin stainless steel exterior, this exit trim meets ANSI A156.3, Grade 1 standards, ensuring durability and reliability. The non-handed design offers flexibility during installation, accommodating standard 1 3/4″ thick doors, with options available for 2″ thick doors. Featuring a solid 5″ stainless steel lever and a 3″ wide by 9″ tall escutcheon, it provides a sleek and professional appearance while covering 161 door preparations. The E-LE-08 is compatible with all 1000 and 2000 series exit devices and comes with a standard 1 1/8″ mortise cylinder. Its electrified options allow for field-selectable fail-safe or fail-secure configurations, making it an ideal choice for various commercial applications. Enjoy peace of mind with a limited lifetime warranty, ensuring long-lasting security and performance.
Electric Exit Trim, FS/FSE 12/24VDC Field Selectable, Lever x Escutcheon, Entry/Night Latch Field Convertible, Includes Mortise Cylinder, 630/US32D Satin Stainless Steel
Notice: The info below is not item specific.
Our LE exit device trims for the 1000 series are perfect for stairwell conditions or applications where electric pullback of the exit device’s latch bolt is cost prohibitive or not required. This is especially practical in applications where fire/life safety codes require a “fail safe” condition which is not an option with electrified latch pullback devices. Because the current draw is quite low there is no need for a more expensive power supply to provide the surge current
Specifications:
- ANSI: ANSI A156.3, Grade 1
- ADA: Meets ADA requirements ANSI A117.1
- Construction: Steel, zinc dichromated chassis – stainless steel exterior housing
- Application: Heavy duty trim option for use with all 1000 & 2000 series exit devices
- Mounting: Thru bolted design thru bolts to head of exit device
- Spindle: 5/16″ Square, steel – machined & heat treated
- Lever: 5″ Solid stainless steel lever – 2 7/8″ total projection
- Lever Designs: Flat and curved
- Escutcheon: 3″ Wide x 9″ height x 3/4″ projection – will cover 161 door prep
- Handing: Non-Handed, field selected at the time of installation
- Door Thickness: 1 3/4″ Standard-thick door kits available for 2″ thick doors
- Functions: 02DT Dummy, 08 entry (convertible to 03NL – night latch), 08A passage
- Fasteners: Includes thru bolt posts and 1/4″-20 machine screws for installation
- Standard Cylinder: 1 1/8″ Mortise cylinder with standard cam (included) – 6 pin brass, C Kwy, with 2 keys
- Optional Cylinders: 1 3/8″ Mortise cylinder housing for 6 or 7 pin small format IC core (less core)
- Accessories: 1/8″ Cylinder collar spacer rings – (2 are supplied with IC housings)
- Electrified Options: 12/24 Volt AC/DC – fail safe/fail secure field selectable
- Warranty: Limited lifetime warranty
Options:
- Functions: 02DT Dummy trim, 08A passage, 08 entry (convertible to 03NL)
- Lever Designs: Flat, curved
- Cylinders: Conventional, SFIC, SLFIC
Finishes:
- US3/605 – Bright/polished brass
- US4/606 – Brushed/satin brass
- US10B/613 – Oil rubbed bronze
- US26/625 – Bright/polished chrome
- US32D/630 – Brushed/satin stainless steel
Features
- Handing: Non-Handed, field selected at the time of installation
- Accessories: 1/8″ Cylinder collar spacer rings – (2 are supplied with IC housings)
- Construction: Steel, zinc dichromated chassis – stainless steel exterior housing
- Door Thickness: 1 3/4″ Standard-thick door kits available for 2″ thick doors
- Standard Cylinder: 1 1/8″ Mortise cylinder with standard cam (included) – 6 pin brass, C Kwy, with 2 keys
- Lever Designs: Flat and curved
- Optional Cylinders: 1 3/8″ Mortise cylinder housing for 6 or 7 pin small format IC core (less core)
- Warranty: Limited lifetime warranty
- Lever: 5″ Solid stainless steel lever – 2 7/8″ total projection
- ANSI: ANSI A156.3, Grade 1
- ADA: Meets ADA requirements ANSI A117.1
- Functions: 02DT Dummy, 08 entry (convertible to 03NL – night latch), 08A passage
- Application: Heavy duty trim option for use with all 1000 & 2000 series exit devices
- Fasteners: Includes thru bolt posts and 1/4″-20 machine screws for installation
- Spindle: 5/16″ Square, steel – machined & heat treated
- Electrified Options: 12/24 Volt AC/DC – fail safe/fail secure field selectable
- Mounting: Thru bolted design thru bolts to head of exit device
- Escutcheon: 3″ Wide x 9″ height x 3/4″ projection – will cover 161 door prep
Attributes
Alternate Codes: E-LE-08 24V FS 32D, ELE0824VFS32D
Category: Panic Devices & Exit Alarms, Panic Device Trims
