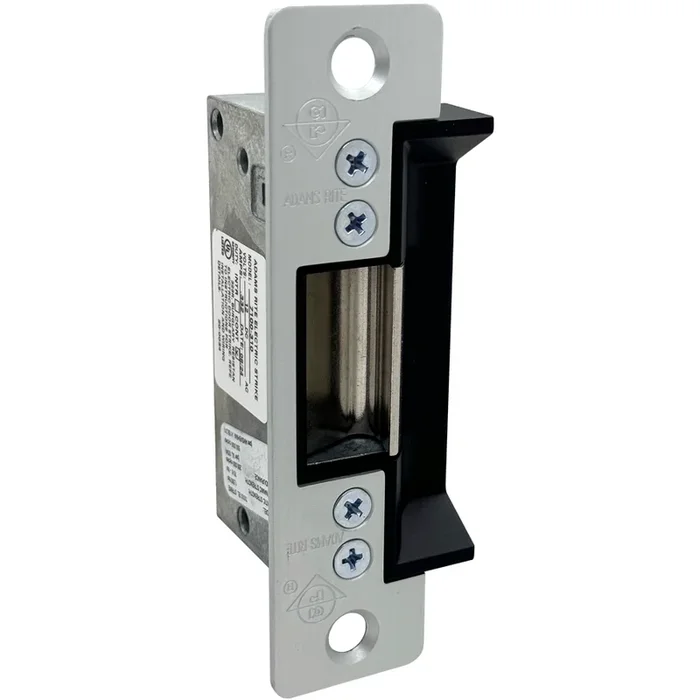

Adams Rite 7100-310-628 12VDC Fail Secure Electric Strike, Radius Corner, 1-1/4″ x 4-7/8″, Aluminum Anodized
Adams Rite Manufacturing 7100-310-628 Electric Strike offers advanced security solutions with its 12VDC Fail Secure design, which can be field-reversed to Fail Safe. This compact electric strike features a radius corner faceplate measuring 1-1/4 inches by 4-7/8 inches, crafted from clear anodized aluminum for durability and aesthetic appeal. Designed for use with Adams Rite deadlatches or cylindrical locksets that have a latchbolt projection of 1/2 inch to 5/8 inch, this electric strike is suitable for installation in aluminum jambs and stiles. The system allows for remote electrical control of the door, unlocking the strike jaw to release the latchbolt, enabling easy access without manually operating the latch. The compact mechanism fits into jamb sections as shallow as 1-5/8 inches, making it an ideal choice for various installations. Its fail-secure feature ensures that the door remains locked when unpowered, providing peace of mind for building professionals and knowledgeable homeowners alike. Available in 12V or 24V options, the strike accommodates both AC intermittent and DC continuous operations. Elevate your security system with the Adams Rite Manufacturing 7100-310-628 Electric Strike, where reliability meets innovation in access control.
Electric Strike 12VDC Fail Secure (FSE), (Field Reversible to FS), Radius Corner (RC), 1-1/4in x 4-7/8in Faceplate, 628/US28 Aluminum Clear Anodized
Notice: The info below is not item specific.
7100, 7101 Electric Strikes with 4-7/8″ Faceplates are designed for Adams Rite deadlatches or cylindrical locksets with 1/2″ to 5/8″ latchbolt projection. For use in aluminum jambs and stiles. Remote electrical control of any door equipped with an Adams Rite 4500, 4700, or 4900 Series (or similar) Deadlatch or cylindrical (key-in-knob/lever) type lockset with 1/2″ to 5/8″ latchbolt projection. Electrical actuation unlocks strike jaw, releasing latchbolt so door can be opened without operating latch itself. Extremely compact mechanism fits into aluminum jamb (or opposing door) sections as shallow as 1-5/8″. Fits existing prep for discontinued Adams Rite 7000, 7500, 7800 Electric Strikes.
Specifications:
- Fail-Safe/Fail-Secure: Field convertible from one mode to the other. However, AC intermittent solenoid must not be used continuously in either.
- Case: Approximately 1″ x 3-3/8″ x 1-5/8″ deep.
- Strike Lip: Basic 7100 strike has lip of proper length for 1-3/4″ thick door that closes flush with jamb edge. Where door thickness or jamb shape differs from this standard relationship, lip extension kits are available, specified by last dash number. Not available on 7101.
- Strike Opening: 5/8″ x 1-7/16″ x 1/2″ deep. Bolt retainer jaw is stainless steel. Strike accepts bolt of any Adams Rite 4500, 4700 (discontinued), or 4900 Deadlatch or cylindrical latches.
- Faceplate: Measures 1-1/4″ x 4-7/8″. 7100 has flat faceplate; 7101 is radiused to match nose on inactive leaf in a pair of narrow stile glass doors. Available in a wide range of architectural finishes.
- Voltage: Available in 12 or 24 volt AC and DC. DC continuous units are silent, AC intermittent units “buzz” on operation.
| Volts | AC Intermittent | DC Continuous |
|---|---|---|
| 12 | 1.42 | 0.33 |
| 24 | 0.74 | 0.17 |
Series Options:
- Available with two monitoring signal switches which sense whether latch bolt is in strike and whether strike jaw is blocked. Choice of mounting in AC and DC for intermittent or continuous duty. 7100 Electric Strike (flat faceplate) available with extended strike lip. Specify assembled for either fail-secure (locked when unpowered) or fail-safe (locked when powered) operation, but can be field converted to the other mode.
- 4603 Rectifier: converts AC to DC, installs in low voltage line between transformer and strike. Rated 2 amps (200 PIV)
- 4605 Transformer: converts 120VAC to 12/24 VAC. Rated 40 Volt-amp output assures plenty of power for strike release. Patented mounting bracket fits in knockout hole of standard junction boxes.
- 4606 Transformer: Plug-in version for standard wall outlet.
Finishes:
- 313 – Dark Bronze Anodized (Similar to 613 – 10B – US10B)
- 335 – Black Anodized
- 626 – Satin Chrome (US26D – 26D)
- 628 – Clear Anodized (US28)
Features
- Strike Lip: Basic 7100 strike has lip of proper length for 1-3/4″ thick door that closes flush with jamb edge. Where door thickness or jamb shape differs from this standard relationship, lip extension kits are available, specified by last dash number. Not available on 7101.
- Strike Opening: 5/8″ x 1-7/16″ x 1/2″ deep. Bolt retainer jaw is stainless steel. Strike accepts bolt of any Adams Rite 4500, 4700 (discontinued), or 4900 Deadlatch or cylindrical latches.
- Faceplate: Measures 1-1/4″ x 4-7/8″. 7100 has flat faceplate; 7101 is radiused to match nose on inactive leaf in a pair of narrow stile glass doors. Available in a wide range of architectural finishes.
- Voltage: Available in 12 or 24 volt AC and DC. DC continuous units are silent, AC intermittent units “buzz” on operation.
- Fail-Safe/Fail-Secure: Field convertible from one mode to the other. However, AC intermittent solenoid must not be used continuously in either.
- Case: Approximately 1″ x 3-3/8″ x 1-5/8″ deep.
Attributes
Alternate Codes: 100872, 7100-310-628, 7100310628, 7100-310X628, 7100310X628, ADR7100-310X628, AL65
Category: Access Control, Electric Strikes
Door Application: Electric Strikes
Door Frame Type: Aluminum Frame, Hollow Metal Frame, Wood Frame
Electric Strike Compatibility: 1/2 -5/8in Latch, AdamsRite Deadlatch, Cylindrical Deadlatch
Electric Strike Faceplate Size: 1-1/4″ x 4-7/8″
Electric Strike Faceplate Type: ANSI, Flat, Radius Corner
Electric Strike Series: 7100
Electrical Option: DC Continuous or Intermittent
Fail Safe/ Fail Secure: FSE- Fail Secure
Finish Code: US28
Finish Color: Anodized Aluminum, Clear (Satin)
Strike Lip Length: 1-1/16″
Voltage: 12
Voltage Type: VDC – Direct
