Description
Security Door Controls 45-A-U Electric Strike for 5/8in Latchbolt, Low Profile, 12/24 AC/DC, FS/FSE
Security Door Controls 45-A-U Electric Strike is a versatile and reliable solution designed for a variety of door applications. This electric strike accommodates a 5/8-inch latchbolt and features a low-profile design measuring just 1-3/16 inches, making it ideal for both residential and commercial installations. The 45-A-U is compatible with aluminum, hollow metal, and wood frames, ensuring a seamless fit in multiple settings. This multi-application kit includes one electric strike and three interchangeable faceplates-two square and radius corner faceplates measuring 4-7/8 inches and an additional radius corner faceplate at 7-15/16 inches. Crafted from durable stainless steel and aluminum, these components are built to withstand daily use while providing consistent security. With field-selectable fail-safe and fail-secure options, the 45-A-U allows for flexible implementation based on your security needs. It boasts a holding force of 1000 lbs, ensuring robust performance, and features latch status monitoring for added peace of mind. This electric strike is certified to A156.31, ANSI, BHMA, and UL standards, underscoring its reliability and safety. Experience the efficiency and adaptability of the Security Door Controls 45-A-U Electric Strike, a smart choice for enhancing access control in any environment.
Electric Strike for 5/8in Latchbolt, Multi-Application, Centerline Latch Entry, Low Profile 1-3/16in, 12/24 AC/DC, FS Fail Safe/FSE Fail Secure, Latchbolt Position Status Standard, 2 Faceplates Square and Radius Corner 4-7/8in H x 1-1/4in W, 1 Faceplate 7-15/16in x 1-1/4in, 630/US32D Stainless Steel
Notice: The info below is not item specific.

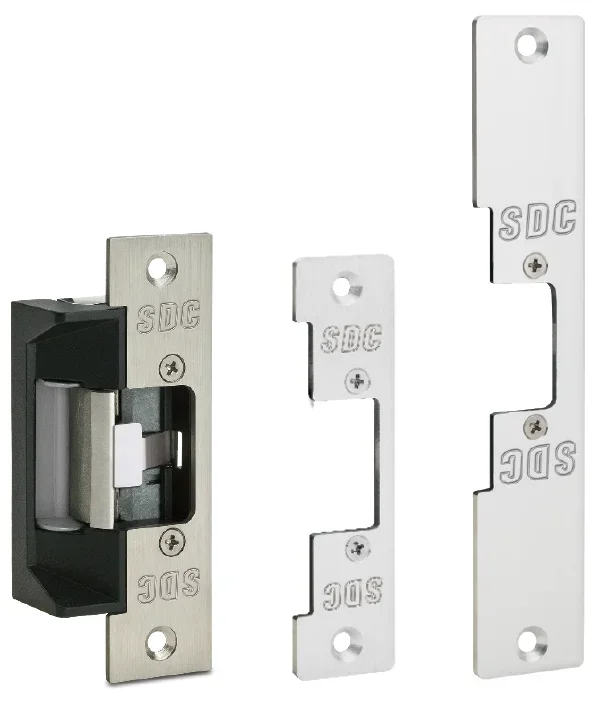

Multi-application kits include one electric strike and three faceplates. Faceplates are interchangeable for hollow metal, aluminum and wood frame applications.
Kit Components:
- (1) 5/8″ Latchbolt electric strike
- (1) 4-7/8″ Square corner stainless steel faceplate
- (1) 4-7/8″ Radius corner aluminum faceplate
- (1) 7-15/16″ Radius corner aluminum faceplate
Features
- (1) 5/8″ Latchbolt electric strike
- (1) 7-15/16″ Radius corner aluminum faceplate
- (1) 4-7/8″ Radius corner aluminum faceplate
- (1) 4-7/8″ Square corner stainless steel faceplate
Attributes
Alternate Codes: 45-A, 45A, 45-A-U, 45AU, SDC45-A
Category: Access Control, Electric Strikes
Certifications: A156.31, ANSI, BHMA, UL 1034, UL 10C
Current Draw: 100 mA @ 24 VDC, 200 mA @ 12 VDC
Door And Lock Sensor: Latch Status Sensor
Door Application: Electric Strikes
Door Frame Type: Aluminum Frame, Hollow Metal Frame, Wood Frame
Dynamic Strength: 70lbs
Electric Strike Type: Latchbolt Strike, Low Profile, Multi-Application Kit
Faceplate Height: 4-7/8″, 7-15/16″
Faceplate Style: Radius Corner, Square Corner
Faceplate Width: 1-1/4″
Fail Safe/ Fail Secure: Field Selectable
Holding Force: 1000lbs
Keeper Depth: 1-3/16″
Manufacturer: Security Door Controls
Material: Die Cast
Monitoring Contacts: 3 Amp @ 30 VDC Resistive, SPDT
Series: 45
Throw: 5/8″
Voltage: 12, 24
Voltage Type: Field Selectable, VDC – Direct
Weight: 2lbs
