Description

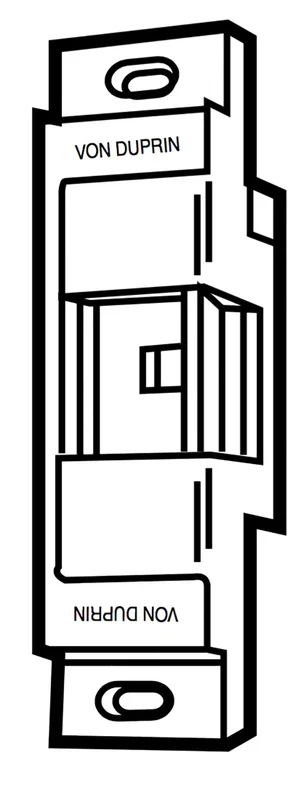

Von Duprin 6111 24V US10 Rim Exit Electric Strike 612
Von Duprin 6111 24V US10 Electric Strike, Rim Exit 612 offers an exceptional solution for securing single or double doors with a mullion. This Grade 1 electric strike features a fail secure design, ensuring the door remains locked in the event of a power failure. With a robust 24 VDC operation and a 6″ x 1-5/8″ faceplate, it is compatible with rim exit devices, making it an ideal choice for both commercial and residential applications. Constructed from heavy-duty stainless steel, the 6111 strike is UL1034 burglary-resistant and UL10C listed, providing peace of mind with its impressive static strength of 1300 lbs and dynamic strength of 70 ft-lbs. The non-handed design allows for greater flexibility during installation, while the adjustable strike box compensates for misalignment of the door or frame. This model meets ANSI/BHMA Grade 1 standards for endurance and strength, boasting an impressive endurance rating of 1,000,000 cycles. Available in a satin bronze clear-coated finish, the Von Duprin 6111 seamlessly integrates with existing hardware. Its two-piece plug connectors simplify installation and servicing, making it a practical choice for professionals seeking reliable door security solutions.
Electric Strike, Rim Exit 612
Grade 1 Electric Strike, Fail Secure (Electrically Unlocked) 24 VDC, 6″ x 1-5/8″ Faceplate, Fire Rated, For use with Rim Exit Devices on Single Doors or Double Doors with Mullion, Hollow Metal, Aluminum, or Wood Frame, Satin Bronze Clear Coated Finish
Von Duprin electric strikes are known for their reliability, durability and security. The 6100 Series strikes are designed to withstand abuse. Their heavy-duty stainless steel construction is UL1034 listed.
Reliable, durable, and secure.
The 6100 Series is designed to withstand abuse. Its heavy-duty stainless steel construction is fully UL1034 and UL10C Listed and ANSI/BHMA Grade 1, 1500 lb hold force rated.
- Non-handed design provides greater flexibility
- Strike box is adjustable to compensate for misalignment of the door or frame
- Two piece plug connectors are furnished for ease of installation and for removal during strike servicing § ANSI 156.5 Grade 1, 1500 lb hold force rated
- UL1034 burglary-resistant and UL10C electric strike for fire door
- Six finishes available to suite with existing hardware
- Durable stainless steel construction
- 24 VDC standard with 12 VDC and AC operation optional
- Meets BHMA A156.31, Grade 1 for endurance and strength
- Static strength 1300 lbs § Dynamic strength 70 ft-labs
- Endurance 1,000,000 cycles
Attributes
Manufacturer surcharge: 7.0%
Accessible: No
Ada Compliance: No
Amp Draw: 330mA
Application: Single or Double Door with Mullion
Baa Qualified: Yes
Burglar Rated: Yes
Commercial Residential: Commercial
Configuration: Centered
Country of origin: USA
Faceplate Depth: 13/16″
Faceplate Size: 6″ x 1-5/8″
Finish: 612/US10
Finish Family: Matte Bronze
Fire Rated: Yes
Fire Rating: Yes {Variable}
For Use With: Rim Exit Devices
Frame Application: Hollow Metal, Aluminum, or Wood
Frame Depth: 1-5/8″
Function: Fail Secure
Installation: Commercial
Keeper Size: Pullman Keeper
Limited Warranty: 1 Year
Operating Voltage: 24 VDC
Origin: USA
Pack Height: 2.63″
Pack Length: 10.5″
Pack Qty: 1
Pack Volume: 161.93 in³
Pack Width: 5.88″
Product Height: 2.63″
Product Length: 6″
Product Width: 1.63″
Ramp Cut Out: 2-3/16″
Restrictions: None
Series: 6100 Series Electric Strikes
Ship Weight: 2.1 lbs.
Subtype: Electric Strikes
Type: Electric Strikes, Bolts, Magnets
Ul Listing: UL 10C, 1034
Unit of Measure: Each
Resources
- 5100/6100/6200/6300 Series Electric Strikes Service Manual
- 6000 Electric Strike Installation Instructions
- 6000 Electric strike DSReplacement Kit Installation Instructions
- 6000 Entry Buzzer Wiring Diagram
- 6000 Series Electric Strike Refurbish Kit Installation Instructions
- 6111/6111DS Double Door Installation Instructions
- 6111/6111DS Single Door Installation Instructions
- 6112/6112DS Installation Instructions
- 6113/6113DS Installation Instructions
- 6114/6114DS Installation Instructions
- 6121/6121DS Installation Instructions
- Von Duprin 6100 Series Catalog
- Von Duprin Finishes Chart
