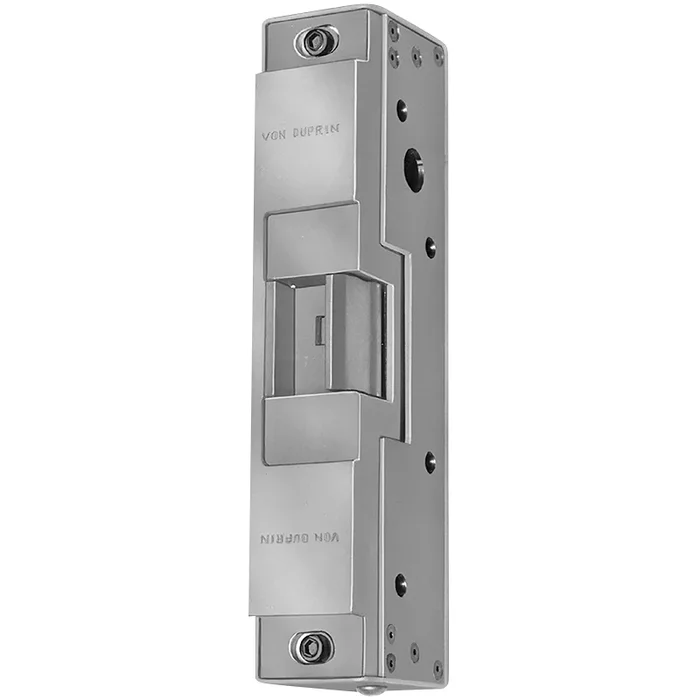

Von Duprin 6121 24V 32D Rim Exit Electric Strike 630
Von Duprin 6121 24V 32D Electric Strike, Rim Exit 630 offers exceptional reliability and security for commercial applications. Designed as a Grade 1 electric strike, it features a fail secure mechanism that remains electrically unlocked, ensuring your double doors are both accessible and secure. This model operates on a 24 VDC system and is compatible with rim exit devices on closed-back configurations for hollow metal, aluminum, or wood frames. Constructed from durable stainless steel, the 6121 is UL1034 burglary-resistant and UL10C rated, providing impressive static strength of 1300 lbs and dynamic strength of 70 ft-lbs. Its non-handed design allows for greater flexibility during installation, while the adjustable strike box accommodates any misalignment between door and frame. With a robust endurance rating of 1,000,000 cycles, this electric strike is built to withstand heavy usage. The 6121 also features two-piece plug connectors for easy installation and maintenance, making it a practical choice for building professionals. Available in a satin stainless steel finish, it seamlessly integrates with existing hardware. Whether you’re upgrading security measures or installing new systems, the Von Duprin 6121 is a trusted choice for enduring performance and peace of mind.
Electric Strike, Rim Exit 630
Grade 1 Electric Strike, Fail Secure (Electrically Unlocked) 24 VDC, For use with Rim Exit Devices on Double Doors (Closed Back), Hollow Metal, Aluminum, or Wood Frame, Satin Stainless Steel Finish
Von Duprin electric strikes are known for their reliability, durability and security. The 6100 Series strikes are designed to withstand abuse. Their heavy-duty stainless steel construction is UL1034 listed.
Reliable, durable, and secure.
The 6100 Series is designed to withstand abuse. Its heavy-duty stainless steel construction is fully UL1034 and UL10C Listed and ANSI/BHMA Grade 1, 1500 lb hold force rated.
- Non-handed design provides greater flexibility
- Strike box is adjustable to compensate for misalignment of the door or frame
- Two piece plug connectors are furnished for ease of installation and for removal during strike servicing § ANSI 156.5 Grade 1, 1500 lb hold force rated
- UL1034 burglary-resistant and UL10C electric strike for fire door
- Six finishes available to suite with existing hardware
- Durable stainless steel construction
- 24 VDC standard with 12 VDC and AC operation optional
- Meets BHMA A156.31, Grade 1 for endurance and strength
- Static strength 1300 lbs § Dynamic strength 70 ft-labs
- Endurance 1,000,000 cycles
Attributes
Manufacturer surcharge: 7.0%
Accessible: No
Ada Compliance: No
Amp Draw: 330mA
Application: Double Door, Closed Back
Baa Qualified: Yes
Burglar Rated: Yes
Commercial Residential: Commercial
Configuration: Centered
Country of origin: USA
Faceplate Depth: 3/4″
Finish: 630/US32D
Finish Family: Matte Silver
Fire Rated: No
For Use With: Rim Exit Devices
Frame Application: Hollow Metal, Aluminum, or Wood
Frame Depth: 1-3/4″
Function: Fail Secure
Installation: Commercial
Keeper Size: Pullman Keeper
Limited Warranty: 1 Year
Operating Voltage: 24 VDC
Origin: USA
Pack Height: 2.63″
Pack Length: 10.5″
Pack Qty: 1
Pack Volume: 161.93 in³
Pack Width: 5.88″
Product Height: 2.5″
Product Length: 9.13″
Product Width: 1.63″
Ramp Cut Out: 1-5/8″
Restrictions: None
Series: 6100 Series Electric Strikes
Ship Weight: 4.8 lbs.
Subtype: Electric Strikes
Type: Electric Strikes, Bolts, Magnets
Ul Listing: UL 10C, 1034
Unit of Measure: Each
Resources
- 5100/6100/6200/6300 Series Electric Strikes Service Manual
- 6000 Electric Strike Installation Instructions
- 6000 Electric strike DSReplacement Kit Installation Instructions
- 6000 Entry Buzzer Wiring Diagram
- 6000 Series Electric Strike Refurbish Kit Installation Instructions
- 6111/6111DS Double Door Installation Instructions
- 6111/6111DS Single Door Installation Instructions
- 6112/6112DS Installation Instructions
- 6113/6113DS Installation Instructions
- 6114/6114DS Installation Instructions
- 6121/6121DS Installation Instructions
- Von Duprin 6100 Series Catalog
- Von Duprin Finishes Chart
