Description

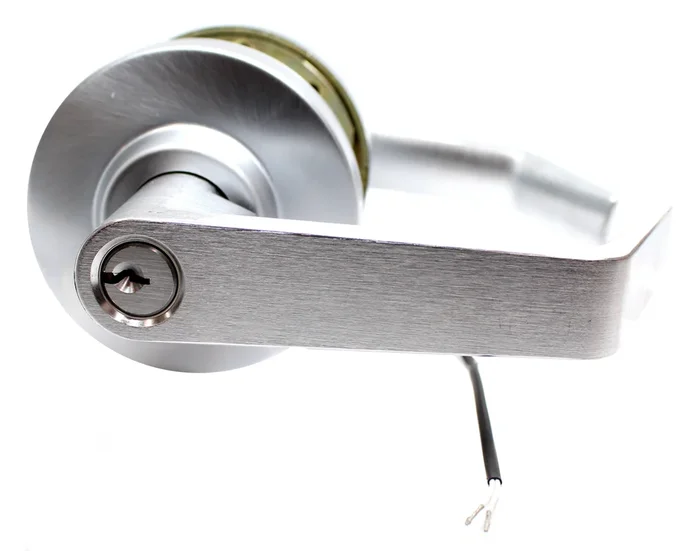

Arrow Lock QL82SR26D-IC-LE-EU 11-30VDC Electrified Fail Secure REX Switch, Storeroom Sierra Lever, SFIC Less Core, Grade 1
Arrow Lock Company QL82SR26D-IC-LE-EU is a state-of-the-art electrified fail secure lockset, designed for robust commercial applications. This Grade 1 lock features a storeroom Sierra lever and a freewheeling lever for enhanced resistance to abuse. It’s built to last, boasting a 10-year mechanical warranty, making it an ideal replacement or upgrade for existing locks. The lockset operates on 11-30VDC, providing flexibility in installation. Its fail secure functionality ensures that the outside lever remains rigid, requiring a key for access, while the inside lever remains always operable. Compliance with ANSI/BHMA A156.2, Series 4000, and UL listings for three-hour doors ensures reliability and safety. Designed for standard door preparations, it fits doors ranging from 1-3/8″ to 1-3/4″ thick, with a 2-3/4″ backset. The stainless steel latch offers a 1/2″ throw and is UL listed, ensuring secure functionality. This lockset is finished in satin chrome (626/US26D), providing a sleek and modern aesthetic that complements any environment. With non-handed installation and included brass keys, the Arrow Lock Company QL82SR26D-IC-LE-EU lockset combines security, durability, and ease of use, making it a premier choice for commercial properties.
Electrified (FSE) Fail Secure, (REX) Request to Exit Switch, Storeroom Sierra Lever, SFIC Less Core, Grade 1, 626/US26D Satin Chrome
Notice: The info below is not item specific.
QL Series is a robust Grade 1 lockset featuring a Freewheeling Lever for abuse resistance, two screw lockset install for quick installation and a 10 Year Mechanical Warranty. The perfect solution for replacing or upgrading lockets in commercial applications.
Features:
- ANSI/BHMA A156.2, Series 4000, Grade 1.
- Underwriters Laboratories (UL and CUL) listed for use on 3 hour, A label single swinging doors.
- Federal Specification FF-H-106C.
- ANSI A117.1 Accessibility Code.
- California State Reference Code–for levers returning to within 1/2″ (12.7mm) of door surface.
- ADA/Americans with Disabilities Act: Acceptable Door Hardware: Section 4.13.9.
Specifications:
- Door Preparation: Requires standard 2-1/8″ (54mm) bore through door.
- Backset: 2-3/4″ (70mm).
- Door Thickness: Fits 1-3/8″ (35mm) to 1-3/4″ (44mm) doors standard.
- Latch: Stainless Steel 1/2″ (13mm) throw, UL Listed, guarded latchbolt on all locking Functions.
- Latch Front: 1-1/8″ x 2-1/4″ for 2-3/4″ (70mm) backset.
- Exposed Trim: QL Levers are pressure cast zinc measuring 4-3/4″ (121mm) in length. QL Roses are wrought brass 3-11/32″ (85mm) diameter. Total projection from face of door is 2-17/32″ (65mm).
- Freewheeling Lever.
- Handing: Non-handed.
- Strike: 4-7/8″ ANSI (124mm).
- Cylinder: Standard: solid brass, 6-pin, keyed different, Arrow A or Schlage C keyway. Optional: prep for small or large format interchangeable core cylinder (cylinder not included).
- Keys: 2 brass keys.
- Design: Sierra (SB).
- Installation: 161 prep for retrofit and secure installation.
- Warranty: Ten Year Warranty.
Function:
- QL01 Passage: Latchbolt operated by lever either side.
- QL02 Privacy:Latch operated by lever either side except when outside lever is locked by pushing inside button. Outside lever unlocked by turning inside lever, using emergency key, or closing door. Inside lever always operates latch.
- QL72 Privacy: Latch operated by lever either side except when outside lever is locked by pushing inside button. Outside lever unlocked by turning inside lever, using emergency key, or closing door. Inside lever always operates latch
- QL81 Entrance:Latchbolt operated by lever either side except when outside lever is locked by turn-button inside. When outside lever is locked, latchbolt operated by key outside or turning inside lever. Inside button must be manually released.
- QL82 Storeroom: Outside lever always rigid. Latchbolt operated by key in outside lever, or by turning inside lever.
- QL87 Classroom: Latchbolt operated by lever either side except when key outside locks outside lever. Inside lever always free. Key outside locks/unlocks out-side lever only.
- QL97 Intruder Classroom: Deadlocking latch bolt operated by lever from either side. Key either inside or outside locks or unlocks outside lever. Inside lever always operates latchbolt.
Accessories:
- Q73: Spring Latch: 2-3/4″ Backset. 1/2″ Throw.
- Q71: Dead Latch: 2-3/4″ Backset. 1/2″ Throw.
- 306: ANSI 115.2 Strike Standard with QL Series.
Finishes:
- 605/US3 – Bright Brass
- 613e/US10BE – Dark Oxide Satin Bronze Equivalent
- 626/US26D – Satin Chromium Plated
Attributes
Alternate Codes: ARRQL82SR26D-IC-LE 11-30VDC, QL82SR26D-IC-LE 11-30VDC, QL82SR26DICLE1130VDC, QL82SR26D-IC-LE-EU 11-30VDC, QL82SR26DICLEEU1130VDC
Category: Commercial Electric Locks, Cylindrical Electric Locks, Deadbolts, Electric Locks, Lock Sets, Standalone/Pushbutton Locks
